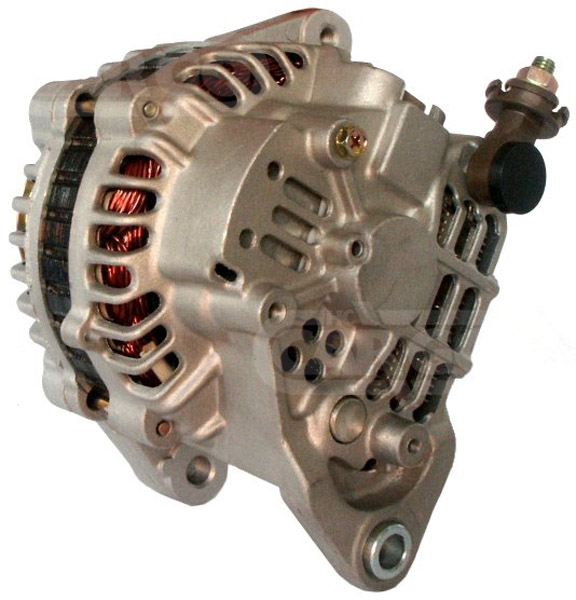

111726 - Alternator (111726)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 80,
Bracket Hole: 10.50, Belt. adj. bracket hole M8,
Width/Holder Arm: 25.00,
Mount. Bracket Dist.: 81.00,
Pulley Dia.: 66.50,
Pulley Dist.: 37.50,
Grooves/Pulley: 6,
Radius: 84.00,
Radius: 90.50,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL07,
Blower: IF, Pulley SP,
Total Length: 167.50, Terminal type S-L

Electrical specifications (Alternator)
Voltage 14
Amp 80

Physical specifications (Alternator)
D Bracket hole 10.50
G Belt. adj. bracket hole M8
B Width/holder arm 25.00
C Mount. bracket dist. 81.00
H Pulley dia. 66.50
A Pulley dist. 37.50
i Grooves/pulley 6
j Radius 84.00
j Radius 90.50
k B+ position M8
n Rotation CR
o Regulator plug PL07
R Total length 167.50
Terminal type S-L

Further information (Alternator)
Blower IF
Pulley SP

Replacing
23100-0m800 NISSAN
23100-0m810 NISSAN
23100-0M811 NISSAN
23100-2j010 NISSAN
23100-2j011 NISSAN
23100-4b400 NISSAN
23100-4m610 NISSAN
23100-9f510 NISSAN
A002T82491 MITSUBISHI
A002T82491A MITSUBISHI

UNISTART Price: £106.14

Sorry, this item is out of stock.

The 111726 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Nissan, Passenger Car EU Primera 2 Gasoline 1996 09 2001 12 96 131 1998 4 16V SR20DE Primera
Nissan, Passenger Car EU Primera 2 Gasoline 1996 09 2002 07 96 131 1998 4 16V SR20DE Hatchback Primera
Nissan, Passenger Car EU Primera 2 Gasoline 1996 09 2001 12 110 150 1998 4 16V SR20DE Primera
Nissan, Passenger Car EU Primera 2 Gasoline 1996 09 2002 07 85 115 1998 4 16V SR20DE Hatchback Primera
Nissan, Passenger Car EU Primera 2 Gasoline 1998 04 2001 12 85 115 1998 4 16V SR20DE Estate Primera
Nissan, Passenger Car EU Primera 2 Gasoline 1998 04 2001 12 96 131 1998 4 16V SR20DE Estate Primera
Nissan, Passenger Car EU Primera 2 Gasoline 1999 08 2001 12 103 140 1998 4 16V SR20DE Primera
Nissan, Passenger Car EU Primera 2 Gasoline 1996 09 2001 12 85 115 1998 4 16V SR20DE Primera
Nissan, Passenger Car EU Primera 2 Gasoline 1999 08 2002 07 103 140 1998 4 16V SR20DE Hatchback Primera
Nissan, Passenger Car EU Primera 2 Gasoline 1996 06 1999 05 140 190 1998 4 16V SR20VE Estate Primera
Nissan, Passenger Car EU Primera 2 Gasoline 1990 07 1998 03 85 116 1998 4 SR20DI Estate Primera
Nissan, Passenger Car EU Almera 2 Gasoline 1996 07 2000 03 105 143 1998 4 GTi SR20DE Hatchback Almera
Nissan, Passenger Car EU Primera 2 Gasoline 1996 09 2002 07 110 150 1998 4 16V SR20DE Hatchback Primera
Nissan, Passenger Car EU Primera 2 Gasoline 1999 08 2001 12 103 140 1998 4 16V SR20DE Estate Primera
Nissan, Passenger cars US 200 2 Gasoline 1996 01 1997 01 0 0 1998 L4 SR20DE SE-R 200SX
Nissan, Passenger cars US 200 2 Gasoline 1998 01 1998 01 0 0 1998 L4 SR20DE 200SX
Nissan, Passenger cars US 200 2 Gasoline 1995 01 1995 01 0 0 1998 L4 SR20DE 200SX
Nissan, Passenger cars US 200 2 Gasoline 1998 01 1998 01 0 0 1998 L4 SR20DE SE-R 200SX
Nissan, Passenger cars US Sentra 2 Gasoline 1999 01 1999 01 0 0 1998 L4 SR20DE Sentra
Nissan, Passenger cars US Sentra 2 Gasoline 1998 01 1998 01 0 0 1998 L4 SR20DE Sentra
