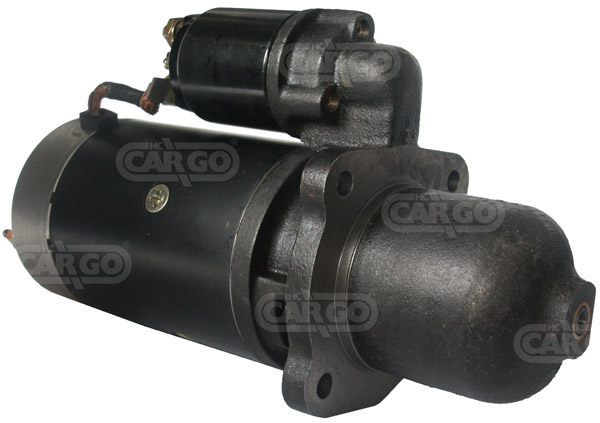

111752 - Starter (111752)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 12, kW 2.7, Mount. flange 89.00, Drive dist. 47.00, Dist./back 250.50, Dist./front 97.00, No. of teeth 9, B+ M10, Gear type DD, Dist. 126.50, Dist. 2 89.50, Dist. 3 89.50,
Rotation: CR, No./mount. holes 3 (0),
Drive Type: Steel,
Total Length: 342.00, Oil sealed No, Waterproof No

Electrical specifications (Starter)
Voltage 12
kW 2.7

Physical specifications (Starter)
A Mount. flange 89.00
B Drive dist. 47.00
F Dist./back 250.50
G Dist./front 97.00
H No. of teeth 9
I B+ M10
N Gear type DD
O Dist. 126.50
O Dist. 2 89.50
O Dist. 3 89.50
P Rotation CR
R Total length 342.00

Further information (Starter)
No./mount. holes 3 (0)
Drive type Steel
Oil sealed No
Waterproof No

Replacing
0001354073 BOSCH
0001354080 BOSCH
0001359014 BOSCH
0001359074 BOSCH
0001362063 BOSCH
0001362300 BOSCH
0001367001 BOSCH
0001369016 BOSCH
11.130.704 ISKRA
11.130.889 ISKRA

UNISTART Price: £132.54

Sorry, this item is out of stock.

The 111752 - Starter is shown in: Starters & Alternators > Starters , Agriculture > Starters & Alternators , Industrial > Starters.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Case, Agricultural 300 Series 1976 10 - 0 0 0 321
Case, Agricultural 500 Series 1976 10 - 0 0 0 554
Case, Agricultural 800 Series 1974 01 1990 12 0 0 0 844
Case, Agricultural 900 Series - - 0 0 0 946
Case, Agricultural 800 Series - - 0 0 0 834
Case, Agricultural 3000 Series - - 0 0 0 Various Models
Case, Agricultural 500 Series 1972 01 - 0 0 0 574
Case, Agricultural 300 Series - - 0 0 0 321
Case, Agricultural 400 Series - - 0 0 0 431
Case, Agricultural 700 Series - - 0 0 0 743
Case, Agricultural 100 Series - - 0 0 0 B 125
Case, Agricultural 700 Series - - 0 0 0 724
Case, Agricultural 700 Series - - 0 0 0 XL 743
Case, Agricultural 700 Series - - 0 0 0 X 745
Case, Agricultural 3000 Series - 1986 12 0 0 0 GD 3400
Case, Agricultural 900 Series 1985 01 - 0 0 0 XL 956
Case, Agricultural 1000 Series - - 0 0 0 1046
Case, Agricultural 100 Series - - 0 0 0 B 100
Case, Agricultural 700 Series - - 0 0 0 XLA 743
Case, Agricultural 700 Series - - 0 0 0 XLS 745
Case, Agricultural 400 Series 1976 10 - 0 0 0 421
Case, Agricultural 500 Series 1976 10 - 0 0 0 531
Case, Agricultural 600 Series 1976 10 - 0 0 0 644
Case, Agricultural 200 Series - - 0 0 0 221
Case, Agricultural 800 Series - - 0 0 0 824
Case, Agricultural 3000 Series - 1986 12 0 0 0 GD 3500
Case, Agricultural 700 Series - - 0 0 0 744
Payloader, Agricultural Various Models - - 0 0 0 Various Models
Case, Agricultural 500 Series 1972 01 - 0 0 0 574
Case, Agricultural 900 Series 1985 01 - 0 0 0 XL 956
Case, Agricultural 3000 Series - 1986 12 0 0 0 GD 3400
Case, Agricultural Various Models - - 0 0 0 Various Models
Case, Agricultural 3000 Series - 1986 12 0 0 0 GD 3500
Case, Agricultural 400 Series 1976 10 - 0 0 0 421
