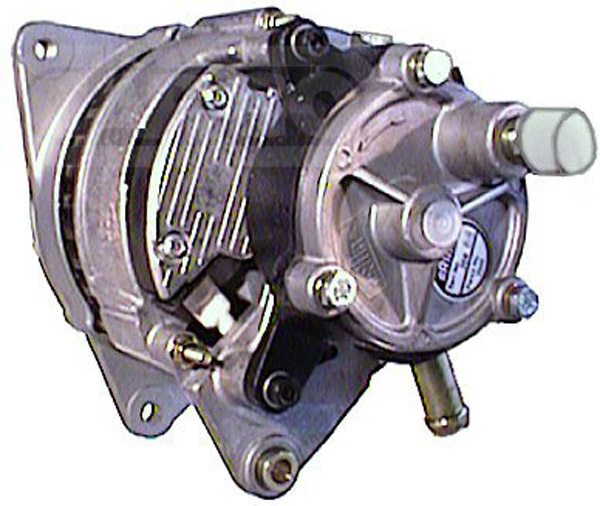

111754 - Alternator (111754)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.

Voltage: 14,
Amp: 70,
Bracket Hole: 8.40, Belt. adj. bracket hole M8,
Width/Holder Arm: 12.25, Belt. adj. brackethole pos. 10,
Mount. Bracket Dist.: 82.70,
Pulley Dia.: 66.75,
Pulley Dist.: 33.65,
Grooves/Pulley: 4,
Radius: 85.35,
Radius: 84.30,
B+ Position: 9.40,
Rotation: CR,
Regulator Plug: or plug PL22,
Blower: w/o, Pulley SP, Remarks w/o vacuum pump: HC-CARGO 110607.,
Total Length: 260.00

Electrical specifications (Alternator)
Voltage	14
Amp	70

Physical specifications (Alternator)
D	Bracket hole 8.40
G	Belt. adj. bracket hole M8
B	Width/holder arm 12.25
E	Belt. adj. brackethole pos. 10
C	Mount. bracket dist. 82.70
H	Pulley dia. 66.75
A	Pulley dist. 33.65
i	Grooves/pulley 4
j	Radius 85.35
j	Radius 84.30
k	B+ position 9.40
n	Rotation CR
o	Regulator plug PL22
R	Total length 260.00

Further information (Alternator)
Blower	w/o
Pulley	SP
Remarks	w/o vacuum pump: HC-CARGO 110607.

Replacing
24188	LUCAS
24230	LUCAS
24264	LUCAS
24264a	LUCAS
5021973	FORD
5026721	FORD
5026727	FORD
5030668	FORD
54022301	LUCAS
54022351	LUCAS

UNISTART Price: £128.72
