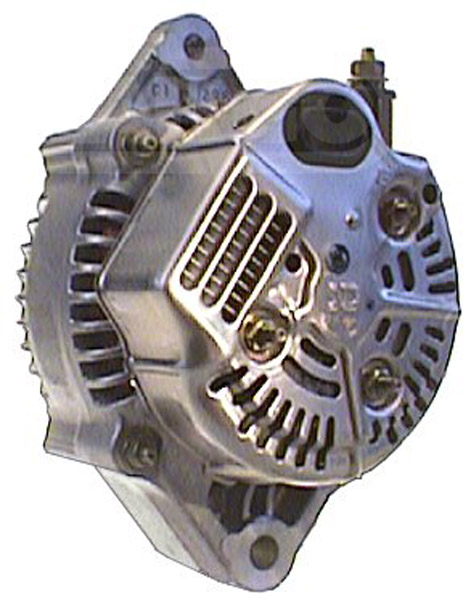

111779 - Alternator (111779)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 70,
Bracket Hole: 10.40, Belt. adj. bracket hole M8,
Width/Holder Arm: 58.00, Belt. adj. brackethole pos. 60,
Pulley Dia.: 55.10,
Pulley Dist.: 90.50,
Grooves/Pulley: 4,
Radius: 79.50,
Radius: 83.45,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL58,
Blower: IF, Pulley SP,
Total Length: 159.50, Terminal type L-IG

Electrical specifications (Alternator)
Voltage 14
Amp 70

Physical specifications (Alternator)
D Bracket hole 10.40
G Belt. adj. bracket hole M8
B Width/holder arm 58.00
E Belt. adj. brackethole pos. 60
H Pulley dia. 55.10
A Pulley dist. 90.50
i Grooves/pulley 4
j Radius 79.50
j Radius 83.45
k B+ position M6
n Rotation CR
o Regulator plug PL58
R Total length 159.50
Terminal type L-IG

Further information (Alternator)
Blower IF
Pulley SP

Replacing
101211-0550 DENSO
101211-0551 DENSO
101211-0720 DENSO
101211-0721 DENSO
101211-0722 DENSO
101211-0723 DENSO
102211-2190 DENSO
102211-5020 DENSO
102211-5021 DENSO
102211-5070 DENSO

UNISTART Price: £110.86

Sorry, this item is out of stock.

The 111779 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Suzuki, Passenger Car EU Vitara 1.6 Gasoline 1990 07 1999 03 71 97 1589 4 i G16B Convertible 4WD Vitara
Suzuki, Passenger Car EU Baleno 1.8 Gasoline 1996 03 2002 05 89 121 1839 4 J18A Hatchback GT Baleno
Suzuki, Passenger Car EU Baleno 1.8 Gasoline 1996 03 2002 05 89 121 1839 4 J18A GT Baleno
Suzuki, Passenger Car EU Baleno 1.3 Gasoline 1996 09 2002 05 52 71 1298 4 G13BA Hatchback Baleno
Suzuki, Passenger Car EU Liana 1.3 Gasoline 2001 07 - 66 90 1328 4 M13A Estate Liana
Suzuki, Passenger Car EU Liana 1.6 Gasoline 2002 04 - 78 106 1586 4 M16A Estate Liana
Suzuki, Passenger Car EU Baleno 1.3 Gasoline 1995 07 2002 05 63 85 1298 4 i 16V G13BB Hatchback Baleno
Suzuki, Passenger Car EU Baleno 1.6 Gasoline 1995 07 2002 05 72 98 1590 4 i 16V G16B Hatchback Baleno
Suzuki, Passenger Car EU Baleno 1.6 Gasoline 1995 07 2002 05 72 98 1590 4 i 16V G16B Baleno
Suzuki, Passenger Car EU Baleno 1.6 Gasoline 1996 08 2002 05 72 98 1590 4 i 16V G16B Estate 4WD Baleno
Suzuki, Passenger Car EU Baleno 1.3 Gasoline 1997 03 2002 05 63 86 1298 4 16V G13BB Estate Baleno
Suzuki, Passenger Car EU Jimny 1.3 Gasoline 1998 09 - 59 80 1298 4 16V G13BB MPV Jimny
Suzuki, Passenger Car EU Grand Vitara 1.6 Gasoline 1998 03 2003 07 69 94 1590 4 G16B Grand Vitara
Suzuki, Passenger Car EU Liana 1.6 Gasoline 2001 07 - 76 103 1586 4 M16A Estate 4WD Liana
Suzuki, Passenger Car EU Wagon 1.3 Gasoline 2000 05 2004 12 56 76 1298 4 G13BB MPV Wagon R+
Suzuki, Passenger Car EU Wagon 1.3 Gasoline 2001 10 - 56 76 1298 4 G13BB MPV 4WD Wagon R+
Suzuki, Passenger Car EU Ignis 1.3 Gasoline 2000 10 2003 09 61 83 1328 4 M13A Ignis
Suzuki, Passenger Car EU Ignis 1.3 Gasoline 2000 10 2003 09 61 83 1328 4 M13A 4WD Ignis
Suzuki, Passenger Car EU Liana 1.3 Gasoline 2002 03 - 66 90 1328 4 M13A Liana
Suzuki, Passenger Car EU Grand Vitara 2 Gasoline 1998 04 2005 08 103 140 1995 4 J20A 4x4 Grand Vitara
Suzuki, Passenger Car EU Baleno 1.6 Gasoline 1995 07 2002 05 72 98 1590 4 i 16V G16B Hatchback 4WD Baleno
Suzuki, Passenger Car EU Baleno 1.3 Gasoline 1995 07 2002 05 63 85 1298 4 i 16V G13BB Baleno
Suzuki, Passenger Car EU Baleno 1.6 Gasoline 1995 07 2002 05 72 98 1590 4 i 16V G16B 4WD Baleno
Suzuki, Passenger Car EU Vitara 2 Gasoline 1996 12 1999 03 97 132 1995 4 16V J20A Convertible 4WD Vitara
Suzuki, Passenger Car EU Baleno 1.3 Gasoline 1996 09 2002 05 52 71 1298 4 G13BA Baleno
Suzuki, Passenger Car EU Wagon 1.2 Gasoline 1998 02 2000 05 51 69 1171 4 K12A MPV 4WD Wagon R+
Suzuki, Passenger Car EU Wagon 1.2 Gasoline 1998 02 2000 05 51 69 1171 4 i K12A MPV Wagon R+
Suzuki, Passenger Car EU Liana 1.6 Gasoline 2002 03 - 76 103 1586 4 M16A Liana
Suzuki, Passenger Car EU Swift 1.5 Gasoline 2005 02 - 75 102 1490 4 M15A Hatchback Swift
Suzuki, Passenger Car EU Grand Vitara 2 Gasoline 2005 10 - 103 140 1995 4 J20A Grand Vitara
Suzuki, Passenger Car EU Baleno 1.6 Gasoline 1996 08 2002 05 72 98 1590 4 i 16V G16B Estate Baleno
Suzuki, Passenger Car EU Baleno 1.8 Gasoline 1996 08 2002 05 89 121 1839 4 i 16V J18A Estate Baleno
Suzuki, Passenger Car EU Jimny 1.3 Gasoline 1998 09 - 59 80 1298 4 16V G13BB MPV 4WD Jimny
Suzuki, Passenger Car EU Liana 1.6 Gasoline 2002 04 - 78 106 1586 4 M16A Liana
Suzuki, Passenger Car EU Liana 1.6 Gasoline 2002 03 - 76 103 1586 4 M16A 4WD Liana
Suzuki, Passenger Car EU Alto 1.1 Gasoline 2002 06 - 46 63 1061 4 F10D, F10DN Hatchback Alto
Suzuki, Passenger Car EU Vitara 2 Gasoline 1994 12 1998 03 100 136 1998 6 i H20A Lang Vitara
Suzuki, Passenger Car EU Liana 1.6 Gasoline 2001 07 - 76 103 1586 4 M16A Estate Liana
Suzuki, Passenger Car EU Jimny 1.3 Gasoline 2001 02 - 60 82 1328 4 16V M13A MPV 4WD Jimny
Suzuki, Passenger cars US Esteem 1.6 Gasoline 1998 01 1998 01 0 0 1590 L4 GL Esteem
Suzuki, Passenger cars US Esteem 1.6 Gasoline 1998 01 1998 01 0 0 1590 L4 GLX Esteem
Suzuki, Passenger cars US Esteem 1.6 Gasoline 1995 01 1997 01 0 0 1590 L4 GLX Esteem
Suzuki, Passenger cars US Esteem 1.6 Gasoline 2000 01 2000 01 0 0 1590 L4 Esteem
Suzuki, Passenger cars US Esteem 1.6 Gasoline 1995 01 1997 01 0 0 1590 L4 GL Esteem
Suzuki, Passenger cars US Esteem 1.6 Gasoline 1999 01 1999 01 0 0 1590 L4 G16S Esteem
