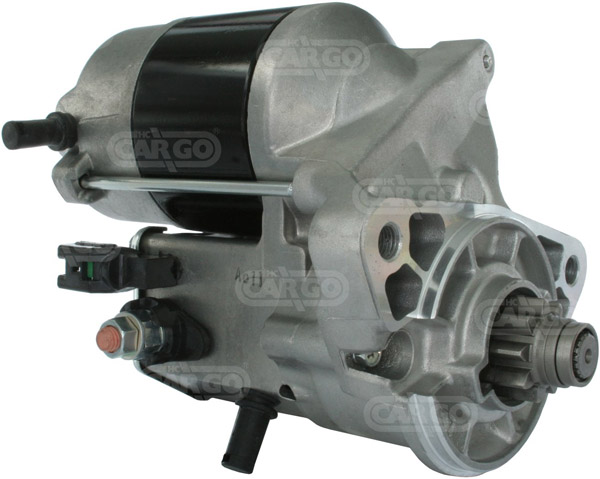

111784 - Starter (111784)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 12, kW 1.4, Mount. flange 74.00, Drive dist. 20.00, Dist./back 123.50, Dist./front 32.00, No. of teeth 9, B+ M8, Gear type GR, Dist. 103.30,
Rotation: CR, No./mount. holes 2 (2), Clutch type Wet,
Drive Type: Steel,
Total Length: 186.30, Oil sealed No, Waterproof No

Electrical specifications (Starter)
Voltage 12
kW 1.4

Physical specifications (Starter)
A Mount. flange 74.00
B Drive dist. 20.00
F Dist./back 123.50
G Dist./front 32.00
H No. of teeth 9
I B+ M8
N Gear type GR
O Dist. 103.30
P Rotation CR
R Total length 186.30

Further information (Starter)
No./mount. holes 2 (2)
Clutch type Wet
Drive type Steel
Oil sealed No
Waterproof No

Replacing
228000-2570 DENSO
228000-2571 DENSO
228000-2572 DENSO
228000-2573 DENSO
228000-2574 DENSO
228000-3280 DENSO
228000-3281 DENSO
228000-3282 DENSO
228000-3283 DENSO
228000-3740 DENSO

UNISTART Price: £73.65

Sorry, this item is out of stock.

The 111784 - Starter is shown in: Outlet > Starters & Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Toyota, Passenger cars US Tacoma 2.4 Gasoline 1998 01 1998 01 0 0 2438 L4 2RZ-FE Tacoma
Toyota, Passenger cars US Tacoma 2.4 Gasoline 1995 01 1995 01 0 0 2438 L4 2RZ-FE Tacoma
Toyota, Passenger cars US Tacoma 2.4 Gasoline 1996 01 1996 01 0 0 2438 L4 2RZ-FE Tacoma
Toyota, Passenger cars US Tacoma 2.7 Gasoline 1996 01 1997 01 0 0 2694 L4 3RZ-FE Regular Cab Tacoma
Toyota, Passenger cars US Tacoma 2.4 Gasoline 1997 01 1997 01 0 0 2438 L4 2RZ-FE Regular Cab Tacoma
Toyota, Passenger cars US T100 2.7 Gasoline 1998 01 1998 01 0 0 2694 L4 3RZ-FE T100
Toyota, Passenger cars US Tacoma 2.7 Gasoline 2001 01 2001 01 0 0 2694 L4 3RZ-FE Tacoma
Toyota, Passenger cars US Tacoma 2.7 Gasoline 1995 01 1995 01 0 0 2694 L4 3RZ-FE Tacoma
Toyota, Passenger cars US Tacoma 2.4 Gasoline 1995 01 1995 01 0 0 2438 L4 2RZ-FE Regular Cab Tacoma
Toyota, Passenger cars US Tacoma 2.7 Gasoline 1995 01 1995 01 0 0 2694 L4 3RZ-FE Regular Cab Tacoma
Toyota, Passenger cars US Tacoma 2.4 Gasoline 1999 01 2002 01 0 0 2438 L4 2RZ-FE Tacoma
Toyota, Passenger cars US Tacoma 2.7 Gasoline 1999 01 2002 01 0 0 2694 L4 3RZ-FE Tacoma
Toyota, Passenger cars US Tacoma 2.4 Gasoline 1996 01 1996 01 0 0 2438 L4 2RZ-FE Regular Cab Tacoma
Toyota, Passenger cars US Tacoma 2.7 Gasoline 1996 01 1997 01 0 0 2694 L4 3RZ-FE Tacoma
Toyota, Passenger cars US Tacoma 2.4 Gasoline 1997 01 1997 01 0 0 2438 L4 2RZ-FE Tacoma
Toyota, Passenger cars US Tacoma 2.4 Gasoline 2001 01 2001 01 0 0 2438 L4 2RZ-FE Tacoma
Toyota, Passenger cars US Tacoma 2.4 Gasoline 2003 01 2003 01 0 0 2438 L4 2RZ-FE Tacoma
Toyota, Passenger cars US Tacoma 2.7 Gasoline 1998 01 1998 01 0 0 2694 L4 3RZ-FE Tacoma
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1989 08 1995 08 88 120 2438 4 2RZ-E Bus Hiace
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1995 08 1998 04 85 115 2438 4 2RZ-E Bus Hiace
Toyota, Passenger Car EU Hilux 2.4 Gasoline 1997 08 2005 07 103 140 2438 4 i 2RZ-FE Pick Up 4WD Hilux
Toyota, Passenger Car EU Hiace 2 Gasoline 1990 02 1995 08 74 101 1998 4 1RZ Van Hiace
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1989 08 1995 08 88 120 2438 4 2RZ-E Van Hiace
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1995 08 1998 04 85 116 2438 4 2RZ-E Bus 4WD Hiace
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1989 08 1995 08 88 120 2438 4 2RZ-E Bus 4WD Hiace
Toyota, Passenger Car EU Hiace 2.7 Gasoline 1998 04 2006 08 105 143 2694 4 3RZ-FE Van 4WD Hiace
Toyota, Passenger Car EU Hiace 2 Gasoline 1989 08 1995 08 74 101 1998 4 1RZ Bus Hiace
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1995 08 1998 04 85 116 2438 4 2RZ-E Van Hiace
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1995 08 1998 04 85 116 2438 4 2RZ-E Van 4WD Hiace
Toyota, Passenger Car EU Hiace 2.7 Gasoline 1998 04 2006 08 105 143 2694 4 3RZ-FE Van Hiace
Toyota, Passenger Car EU Hiace 2.7 Gasoline 2001 11 - 106 144 2694 4 3RZ-FE Bus 4WD Hiace
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1989 08 1995 08 88 120 2438 4 2RZ-E Van 4WD Hiace
Toyota, Passenger Car EU Hiace 2.7 Gasoline 1998 04 2001 11 105 143 2694 4 3RZ-FE Bus Hiace
Toyota, Passenger Car EU Hiace 2.7 Gasoline 1998 04 2006 08 105 143 2694 4 3RZ-FE Bus 4WD Hiace
