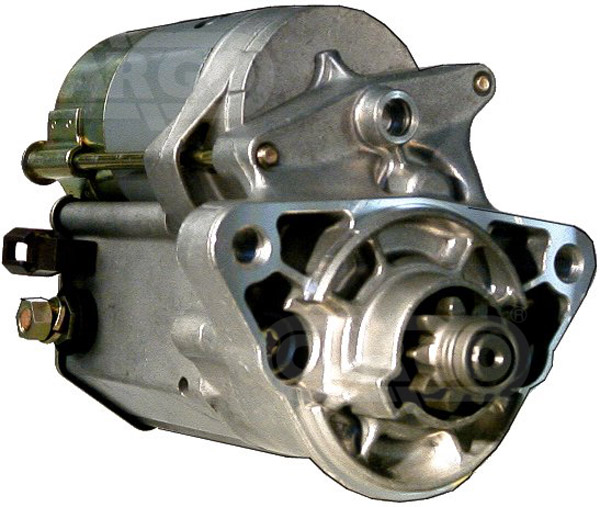

111785 - Starter (111785)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 12, kW 1.0, Mount. flange 74.00, Drive dist. 20.00, Dist./back 152.00, No. of teeth 9, B+ M8, Gear type GR, Dist. 111.00,
Rotation: CR, No./mount. holes 2 (2),
Drive Type: Steel,
Total Length: 200.00, Oil sealed No, Waterproof No

Electrical specifications (Starter)
Voltage 12
kW 1.0

Physical specifications (Starter)
A Mount. flange 74.00
B Drive dist. 20.00
F Dist./back 152.00
H No. of teeth 9
I B+ M8
N Gear type GR
O Dist. 111.00
P Rotation CR
R Total length 200.00

Further information (Starter)
No./mount. holes 2 (2)
Drive type Steel
Oil sealed No
Waterproof No

Replacing
128000-5840 DENSO
128000-5841 DENSO
128000-5842 DENSO
128000-5843 DENSO
128000-7680 DENSO
28100-42040 TOYOTA
28100-75010 TOYOTA

UNISTART Price: £85.31

Sorry, this item is out of stock.

The 111785 - Starter is shown in: Starters & Alternators > Starters , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1989 08 1995 08 88 120 2438 4 2RZ-E Bus Hiace
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1995 08 1998 04 85 115 2438 4 2RZ-E Bus Hiace
Toyota, Passenger Car EU Hiace 2 Gasoline 1990 02 1995 08 74 101 1998 4 1RZ Van Hiace
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1989 08 1995 08 88 120 2438 4 2RZ-E Van Hiace
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1989 08 1995 08 88 120 2438 4 2RZ-E Bus 4WD Hiace
Toyota, Passenger Car EU MR2 1.8 Gasoline 2000 04 - 103 140 1794 4 VVTi 16V 1ZZ-FE Convertible MR2
Toyota, Passenger Car EU Hiace 2 Gasoline 1989 08 1995 08 74 101 1998 4 1RZ Bus Hiace
Toyota, Passenger Car EU Hilux 2.4 Gasoline 1989 06 2005 07 84 114 2366 4 22RE Pick Up Hilux
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1989 08 1995 08 88 120 2438 4 2RZ-E Van 4WD Hiace
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1989 08 1995 08 88 120 2438 4 2RZ-E Bus Hiace
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1995 08 1998 04 85 115 2438 4 2RZ-E Bus Hiace
Toyota, Passenger Car EU Hiace 2 Gasoline 1990 02 1995 08 74 101 1998 4 1RZ Van Hiace
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1989 08 1995 08 88 120 2438 4 2RZ-E Van Hiace
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1989 08 1995 08 88 120 2438 4 2RZ-E Bus 4WD Hiace
Toyota, Passenger Car EU MR2 1.8 Gasoline 2000 04 - 103 140 1794 4 VVTi 16V 1ZZ-FE Convertible MR2
Toyota, Passenger Car EU Hiace 2 Gasoline 1989 08 1995 08 74 101 1998 4 1RZ Bus Hiace
Toyota, Passenger Car EU Hilux 2.4 Gasoline 1989 06 2005 07 84 114 2366 4 22RE Pick Up Hilux
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1989 08 1995 08 88 120 2438 4 2RZ-E Van 4WD Hiace
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1989 08 1995 08 88 120 2438 4 2RZ-E Bus Hiace
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1995 08 1998 04 85 115 2438 4 2RZ-E Bus Hiace
Toyota, Passenger Car EU Hiace 2 Gasoline 1990 02 1995 08 74 101 1998 4 1RZ Van Hiace
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1989 08 1995 08 88 120 2438 4 2RZ-E Van Hiace
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1989 08 1995 08 88 120 2438 4 2RZ-E Bus 4WD Hiace
Toyota, Passenger Car EU MR2 1.8 Gasoline 2000 04 - 103 140 1794 4 VVTi 16V 1ZZ-FE Convertible MR2
Toyota, Passenger Car EU Hiace 2 Gasoline 1989 08 1995 08 74 101 1998 4 1RZ Bus Hiace
Toyota, Passenger Car EU Hilux 2.4 Gasoline 1989 06 2005 07 84 114 2366 4 22RE Pick Up Hilux
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1989 08 1995 08 88 120 2438 4 2RZ-E Van 4WD Hiace
