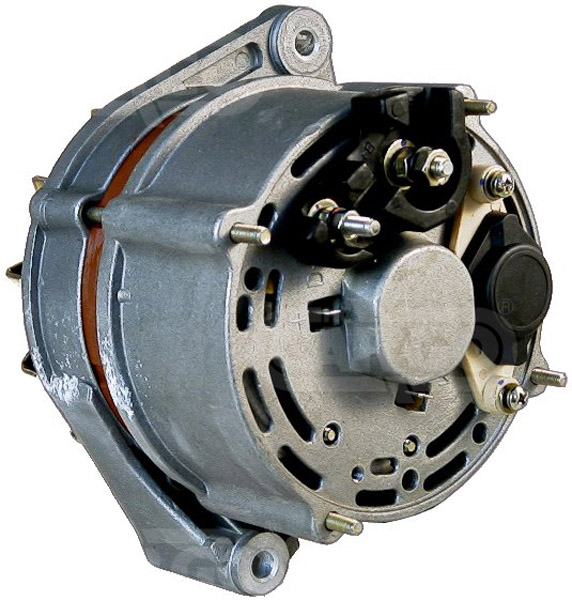

111800 - Alternator (111800)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 65, Terminal W,
Bracket Hole: 8.50, Belt. adj. bracket hole 8.50,
Width/Holder Arm: 56.00, Belt. adj. brackethole pos. 57,
Pulley Dia.: 68.00,
Pulley Dist.: >85,
Grooves/Pulley: 1,
Radius: 86.00,
Radius: 86.00,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: EF, Pulley P,
Total Length: 171.00, Source Mahle Letrika
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 65 | |||
| Terminal | W | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 8.50 | |||
| G | Belt. adj. bracket hole 8.50 | |||
| B | Width/holder arm 56.00 | |||
| E | Belt. adj. brackethole pos. 57 | |||
| H | Pulley dia. 68.00 | |||
| A | Pulley dist. >85 | |||
| i | Grooves/pulley 1 | |||
| j | Radius 86.00 | |||
| j | Radius 86.00 | |||
| k | B+ position M6 | |||
| n | Rotation CR | |||
| o | Regulator plug PL_NA | |||
| R | Total length 171.00 | |||
| Source | Mahle Letrika | |||
Further information (Alternator) | ||||
| Blower | EF | |||
| Pulley | P | |||
Replacing | ||||
| 0120489341 | BOSCH | |||
| 0120489343 | BOSCH | |||
| 070 | REMY (DELCO) | |||
| 11.201.297 | ISKRA | |||
| 11.201.926 | ISKRA | |||
| 1101199 | REMY (DELCO) | |||
| 1204043 | OPEL | |||
| 1204044 | OPEL | |||
| 1204327 | OPEL | |||
| 1204333 | OPEL | |||
UNISTART Price: £133.74
