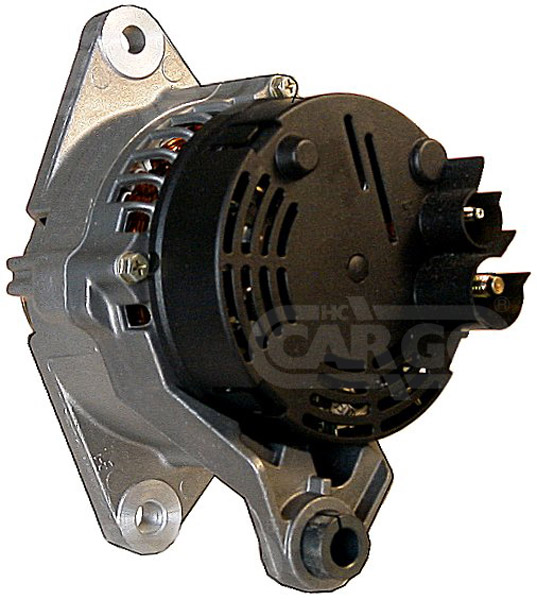

111802 - Alternator (111802)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 75,
Bracket Hole: 12.30, Belt. adj. bracket hole 11.30,
Width/Holder Arm: 17.00, Belt. adj. brackethole pos. 3,
Mount. Bracket Dist.: 81.80,
Pulley Dia.: 62.40,
Pulley Dist.: 40.50,
Grooves/Pulley: 5,
Radius: 90.00,
Radius: 90.00,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: IF, Pulley SP,
Total Length: 187.00

Electrical specifications (Alternator)
Voltage 14
Amp 75

Physical specifications (Alternator)
D Bracket hole 12.30
G Belt. adj. bracket hole 11.30
B Width/holder arm 17.00
E Belt. adj. brackethole pos. 3
C Mount. bracket dist. 81.80
H Pulley dia. 62.40
A Pulley dist. 40.50
i Grooves/pulley 5
j Radius 90.00
j Radius 90.00
k B+ position M8
n Rotation CR
o Regulator plug PL_NA
R Total length 187.00

Further information (Alternator)
Blower IF
Pulley SP

Replacing
1305709080 FIAT
1315060080 FIAT
46430110 FIAT
63321205 MAGNETI MARELLI
63321276 MAGNETI MARELLI
63321361 MAGNETI MARELLI
63321617 MAGNETI MARELLI

UNISTART Price: £98.64

Sorry, this item is out of stock.

The 111802 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Fiat, Passenger Car EU Ducato 1.9 Diesel 1995 06 2002 04 51 69 1929 4 Diesel 230A2.000 Bus Combinato Ducato
Fiat, Passenger Car EU Ducato 1.9 Diesel 1994 08 2002 04 59 80 1929 4 TD 230A4.000 Van Ducato
Fiat, Passenger Car EU Ducato 1.9 Diesel 1994 03 2002 04 60 82 1929 4 TD 230A3.000 Platform / Chassis Ducato
Fiat, Passenger Car EU Ducato 1.9 Diesel 1994 03 2002 04 51 69 1929 4 Diesel 230A2.000 Van Ducato
Fiat, Passenger Car EU Ducato 1.9 Diesel 1994 03 2002 04 60 82 1929 4 TD 230A3.000 Bus Ducato
Fiat, Passenger Car EU Ducato 1.9 Diesel 1994 08 2002 04 59 80 1929 4 TD 230A4.000 Bus Ducato
Fiat, Passenger Car EU Ducato 1.9 Diesel 1994 03 2002 04 60 82 1929 4 TD 230A3.000 Van Ducato
Fiat, Passenger Car EU Ducato 1.9 Diesel 1994 03 2002 04 51 69 1929 4 Diesel 230A2.000 Platform / Chassis Ducato
Fiat, Passenger Car EU Ducato 1.9 Diesel 1994 08 2002 04 59 80 1929 4 TD 230A4.000 Platform / Chassis Ducato
Fiat, Passenger Car EU Ducato 1.9 Diesel 1995 06 2002 04 51 69 1929 4 Diesel 230A2.000 Bus Combinato Ducato
Fiat, Passenger Car EU Ducato 1.9 Diesel 1994 08 2002 04 59 80 1929 4 TD 230A4.000 Van Ducato
Fiat, Passenger Car EU Ducato 1.9 Diesel 1994 03 2002 04 60 82 1929 4 TD 230A3.000 Platform / Chassis Ducato
Fiat, Passenger Car EU Ducato 1.9 Diesel 1994 03 2002 04 60 82 1929 4 TD 230A3.000 Bus Ducato
Fiat, Passenger Car EU Ducato 1.9 Diesel 1994 08 2002 04 59 80 1929 4 TD 230A4.000 Bus Ducato
Fiat, Passenger Car EU Ducato 1.9 Diesel 1994 03 2002 04 51 69 1929 4 Diesel 230A2.000 Van Ducato
Fiat, Passenger Car EU Ducato 1.9 Diesel 1994 03 2002 04 60 82 1929 4 TD 230A3.000 Van Ducato
Fiat, Passenger Car EU Ducato 1.9 Diesel 1994 03 2002 04 51 69 1929 4 Diesel 230A2.000 Platform / Chassis Ducato
Fiat, Passenger Car EU Ducato 1.9 Diesel 1994 08 2002 04 59 80 1929 4 TD 230A4.000 Platform / Chassis Ducato
Fiat, Passenger Car EU Ducato 1.9 Diesel 1994 03 2002 04 51 69 1929 4 Diesel 230A2.000 Van Ducato
