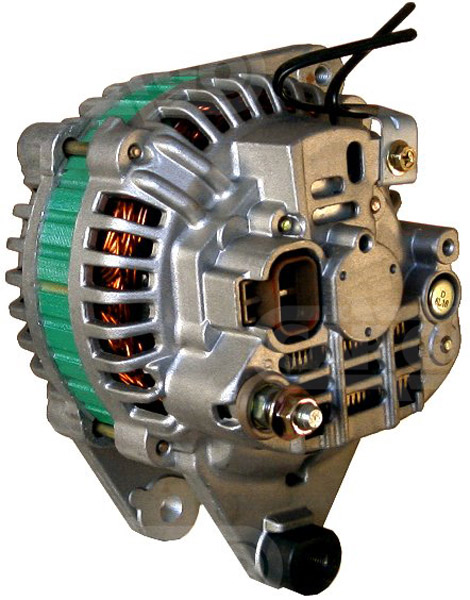

111806 - Alternator (111806)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 90,
Bracket Hole: 10.50, Belt. adj. bracket hole M8,
Width/Holder Arm: 17.00, Belt. adj. brackethole pos. 53,
Mount. Bracket Dist.: 54.80,
Pulley Dia.: 65.00,
Pulley Dist.: 25.00,
Grooves/Pulley: 5,
Radius: 97.00,
Radius: 92.00,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL07,
Blower: IF, Pulley SP,
Total Length: 168.00
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 90 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 10.50 | |||
| G | Belt. adj. bracket hole M8 | |||
| B | Width/holder arm 17.00 | |||
| E | Belt. adj. brackethole pos. 53 | |||
| C | Mount. bracket dist. 54.80 | |||
| H | Pulley dia. 65.00 | |||
| A | Pulley dist. 25.00 | |||
| i | Grooves/pulley 5 | |||
| j | Radius 97.00 | |||
| j | Radius 92.00 | |||
| k | B+ position M8 | |||
| n | Rotation CR | |||
| o | Regulator plug PL07 | |||
| R | Total length 168.00 | |||
Further information (Alternator) | ||||
| Blower | IF | |||
| Pulley | SP | |||
Replacing | ||||
| A003TA0791 | MITSUBISHI | |||
| A003TA0791A | MITSUBISHI | |||
| a3ta0791 | MITSUBISHI | |||
| a3ta0791a | MITSUBISHI | |||
| md313395 | MITSUBISHI | |||
| md350608 | MITSUBISHI | |||
UNISTART Price: £114.11
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mitsubishi, Passenger cars US | Montero | 3.5 | Gasoline | 1994 01 | 1996 01 | 0 | 0 | 3497 | V6 | SR | Montero | |||
| Mitsubishi, Passenger cars US | Montero | 3.5 | Gasoline | 1997 01 | 1997 01 | 0 | 0 | 3497 | V6 | 6G74 | LS | Montero | ||
| Mitsubishi, Passenger cars US | Montero | 3 | Gasoline | 1997 01 | 1997 01 | 0 | 0 | 2972 | V6 | 6G72 | Sport LS | Montero | ||
| Mitsubishi, Passenger cars US | Montero | 3 | Gasoline | 1997 01 | 1997 01 | 0 | 0 | 2972 | V6 | 6G72 | Sport XLS | Montero | ||
| Mitsubishi, Passenger cars US | Montero | 3.5 | Gasoline | 1999 01 | 1999 01 | 0 | 0 | 3497 | V6 | 6G74 | Sport | Montero | ||
| Mitsubishi, Passenger cars US | Montero | 3 | Gasoline | 2000 01 | 2001 01 | 0 | 0 | 2972 | V6 | 6G72 | Sport | Montero | ||
| Mitsubishi, Passenger cars US | Montero | 3 | Gasoline | 2002 01 | 2003 01 | 0 | 0 | 2972 | V6 | 6G72 | Sport | Montero | ||
| Mitsubishi, Passenger cars US | Montero | 3 | Gasoline | 1999 01 | 1999 01 | 0 | 0 | 2972 | V6 | 6G72 | Sport | Montero | ||
| Mitsubishi, Passenger cars US | Montero | 3 | Gasoline | 1998 01 | 1998 01 | 0 | 0 | 2972 | V6 | 6G72 | LS Sport | Montero | ||
| Mitsubishi, Passenger cars US | Montero | 3.5 | Gasoline | 2004 01 | - | 0 | 0 | 3497 | V6 | 6G74 | Sport | Montero | ||
| Mitsubishi, Passenger cars US | Montero | 3.5 | Gasoline | 2000 01 | 2001 01 | 0 | 0 | 3497 | V6 | 6G74 | Sport | Montero | ||
| Mitsubishi, Passenger cars US | Montero | 3 | Gasoline | 1998 01 | 1998 01 | 0 | 0 | 2972 | V6 | 6G72 | XLS Sport | Montero | ||
| Mitsubishi, Passenger cars US | Montero | 3.5 | Gasoline | 1997 01 | 1997 01 | 0 | 0 | 3497 | V6 | 6G74 | SR | Montero | ||
| Mitsubishi, Passenger cars US | Montero | 3.5 | Gasoline | 2002 01 | 2003 01 | 0 | 0 | 3497 | V6 | 6G74 | Sport | Montero | ||
| Mitsubishi, Passenger Car EU | Pajero | 3 | Gasoline | 1994 06 | 1997 05 | 133 | 181 | 2972 | 6 | 24V | 6G72 | Pajero | ||
| Mitsubishi, Passenger Car EU | Pajero | 3 | Gasoline | 1997 06 | 1999 10 | 130 | 177 | 2972 | 6 | V6 24V | 6G72 | Pajero | ||
| Mitsubishi, Passenger Car EU | Pajero | 3.5 | Gasoline | 1994 06 | 1999 10 | 153 | 208 | 3497 | 6 | V6 24V | 6G74(DOHC24V) | Pajero | ||
| Mitsubishi, Passenger Car EU | Pajero | 3.5 | Gasoline | 1997 07 | 1999 10 | 143 | 194 | 3497 | 6 | V6 24V | 6G74 | Pajero | ||
| Mitsubishi, Passenger Car EU | Pajero | 3 | Gasoline | 2000 06 | - | 125 | 170 | 2972 | 6 | V6 | 6G72 | Sport | Pajero | |
| Mitsubishi, Passenger Car EU | Pajero | 3 | Gasoline | 2003 03 | - | 123 | 167 | 2972 | 6 | V6 | 6G72 | Sport | Pajero | |
| Mitsubishi, Passenger Car EU | Pajero | 3 | Gasoline | 1998 11 | - | 130 | 177 | 2972 | 6 | V6 | 6G72 | Sport | Pajero | |
| Mitsubishi, Passenger Car EU | Pajero | 3 | Gasoline | 1999 12 | 2008 01 | 125 | 170 | 2972 | 6 | V6 | 6G72 (DOHC24V) | Van | Pajero Sport Van |
