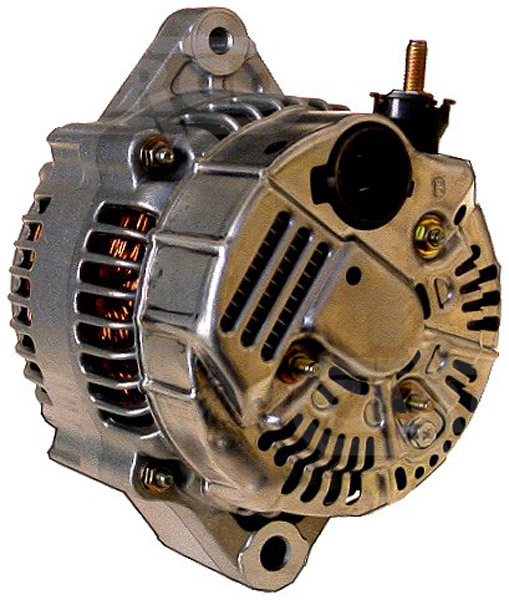

111830 - Alternator (111830)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 140,
Bracket Hole: 10.50, Belt. adj. bracket hole M8,
Width/Holder Arm: 58.00, Belt. adj. brackethole pos. 60,
Pulley Dia.: 62.50,
Pulley Dist.: 90.50,
Grooves/Pulley: 8,
Radius: 82.50,
Radius: 85.50,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL12,
Blower: IF, Pulley SP,
Total Length: 178.00
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 140 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 10.50 | |||
| G | Belt. adj. bracket hole M8 | |||
| B | Width/holder arm 58.00 | |||
| E | Belt. adj. brackethole pos. 60 | |||
| H | Pulley dia. 62.50 | |||
| A | Pulley dist. 90.50 | |||
| i | Grooves/pulley 8 | |||
| j | Radius 82.50 | |||
| j | Radius 85.50 | |||
| k | B+ position M8 | |||
| n | Rotation CR | |||
| o | Regulator plug PL12 | |||
| R | Total length 178.00 | |||
Further information (Alternator) | ||||
| Blower | IF | |||
| Pulley | SP | |||
Replacing | ||||
| 100211-6420 | DENSO | |||
| re46608 | JOHN DEERE | |||
| SE501380 | JOHN DEERE | |||
| ty6762 | JOHN DEERE | |||
UNISTART Price: £205.49
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| John Deere, Agricultural | 8000 Series | 8.1 | Diesel | 1996 03 | - | 149 | 203 | 8100 | 6 | 6081 HRW06 | 8120 | |||
| John Deere, Agricultural | 7000 Series | 7.6 | Diesel | 1992 09 | 1996 01 | 0 | 0 | 0 | 6 | 7800 | ||||
| John Deere, Agricultural | 7000 Series | Diesel | 1996 01 | - | 0 | 0 | 0 | 7810 | ||||||
| John Deere, Agricultural | 8000 Series | 7.6 | Diesel | 1994 08 | - | 136 | 185 | 7636 | 6 | 6076 HRW35 | 8120 | |||
| John Deere, Agricultural | 8000 Series | 7.6 | Diesel | 1994 08 | - | 155 | 210 | 7636 | 6 | 6076 HRW35 | 8220 | |||
| John Deere, Agricultural | 7000 Series | Diesel | 1996 01 | - | 0 | 0 | 0 | 7710 | ||||||
| John Deere, Agricultural | 8000 Series | 8.1 | Diesel | 1996 03 | - | 149 | 203 | 8100 | 6 | 6081 HRW06 | 8120 | |||
| John Deere, Agricultural | 7000 Series | 7.6 | Diesel | 1992 09 | 1996 01 | 0 | 0 | 0 | 6 | 7800 | ||||
| John Deere, Agricultural | 7000 Series | Diesel | 1996 01 | - | 0 | 0 | 0 | 7810 | ||||||
| John Deere, Agricultural | 8000 Series | 7.6 | Diesel | 1994 08 | - | 136 | 185 | 7636 | 6 | 6076 HRW35 | 8120 | |||
| John Deere, Agricultural | 8000 Series | 7.6 | Diesel | 1994 08 | - | 155 | 210 | 7636 | 6 | 6076 HRW35 | 8220 | |||
| John Deere, Agricultural | 7000 Series | Diesel | 1996 01 | - | 0 | 0 | 0 | 7710 | ||||||
| John Deere, Agricultural | 8000 Series | 8.1 | Diesel | 1996 03 | - | 149 | 203 | 8100 | 6 | 6081 HRW06 | 8120 | |||
| John Deere, Agricultural | 7000 Series | 7.6 | Diesel | 1992 09 | 1996 01 | 0 | 0 | 0 | 6 | 7800 | ||||
| John Deere, Agricultural | 7000 Series | Diesel | 1996 01 | - | 0 | 0 | 0 | 7810 | ||||||
| John Deere, Agricultural | 8000 Series | 7.6 | Diesel | 1994 08 | - | 136 | 185 | 7636 | 6 | 6076 HRW35 | 8120 | |||
| John Deere, Agricultural | 8000 Series | 7.6 | Diesel | 1994 08 | - | 155 | 210 | 7636 | 6 | 6076 HRW35 | 8220 | |||
| John Deere, Agricultural | 7000 Series | Diesel | 1996 01 | - | 0 | 0 | 0 | 7710 | ||||||
| John Deere, Agricultural | 8000 Series | 8.1 | Diesel | 1996 03 | - | 149 | 203 | 8100 | 6 | 6081 HRW06 | 8120 | |||
| John Deere, Agricultural | 7000 Series | 7.6 | Diesel | 1992 09 | 1996 01 | 0 | 0 | 0 | 6 | 7800 | ||||
| John Deere, Agricultural | 7000 Series | Diesel | 1996 01 | - | 0 | 0 | 0 | 7810 | ||||||
| John Deere, Agricultural | 8000 Series | 7.6 | Diesel | 1994 08 | - | 136 | 185 | 7636 | 6 | 6076 HRW35 | 8120 | |||
| John Deere, Agricultural | 8000 Series | 7.6 | Diesel | 1994 08 | - | 155 | 210 | 7636 | 6 | 6076 HRW35 | 8220 | |||
| John Deere, Agricultural | 7000 Series | Diesel | 1996 01 | - | 0 | 0 | 0 | 7710 |
