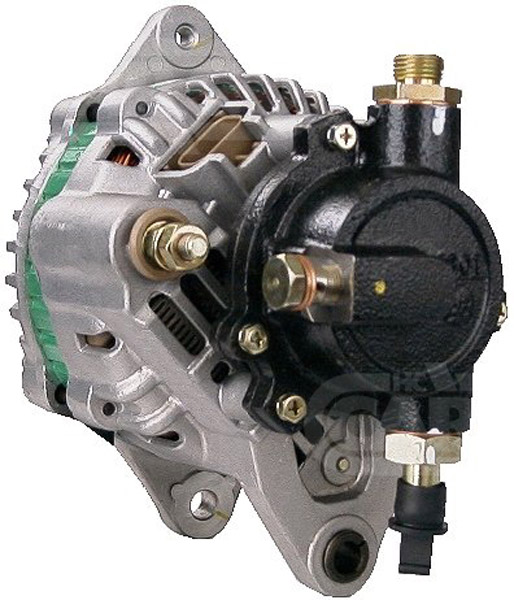

111831 - Alternator (111831)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 100, Terminal W,
Bracket Hole: 10.50, Belt. adj. bracket hole M8,
Width/Holder Arm: 13.00, Belt. adj. brackethole pos. 60,
Mount. Bracket Dist.: 77.00,
Pulley Dia.: 80.50,
Pulley Dist.: 42.00,
Grooves/Pulley: 1,
Radius: 88.50,
Radius: 84.00,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL50,
Blower: IF, Pulley P,
Total Length: 213.00
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 100 | |||
| Terminal | W | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 10.50 | |||
| G | Belt. adj. bracket hole M8 | |||
| B | Width/holder arm 13.00 | |||
| E | Belt. adj. brackethole pos. 60 | |||
| C | Mount. bracket dist. 77.00 | |||
| H | Pulley dia. 80.50 | |||
| A | Pulley dist. 42.00 | |||
| i | Grooves/pulley 1 | |||
| j | Radius 88.50 | |||
| j | Radius 84.00 | |||
| k | B+ position M8 | |||
| n | Rotation CR | |||
| o | Regulator plug PL50 | |||
| R | Total length 213.00 | |||
Further information (Alternator) | ||||
| Blower | IF | |||
| Pulley | P | |||
Replacing | ||||
| 6204043 | OPEL | |||
| 6204047 | OPEL | |||
| 8971502010 | ISUZU | |||
| 97150201 | OPEL | |||
| lr1100-501 | HITACHI | |||
| lr1100-501b | HITACHI | |||
UNISTART Price: £148.63
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Opel, Passenger Car EU | Combo | 1.7 | Diesel | 1994 07 | 2001 10 | 44 | 60 | 1686 | 4 | Diesel | X17D (4EE1) | Van | Combo | |
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1992 03 | 1998 09 | 60 | 82 | 1686 | 4 | TDS | X17DT (TC4EE1) | Astra F | ||
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1994 11 | 1998 09 | 50 | 68 | 1700 | 4 | TD | X17DTL | Astra F | ||
| Opel, Passenger Car EU | Combo | 1.7 | Diesel | 1994 07 | 2001 10 | 44 | 60 | 1686 | 4 | Diesel | 17D (4EE1) | Van | Combo | |
| Opel, Passenger Car EU | Vectra | 1.7 | Diesel | 1995 10 | 1998 12 | 60 | 82 | 1686 | 4 | TD | X17DT (TC4EE1) | Vectra B | ||
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1991 12 | 1998 01 | 60 | 82 | 1686 | 4 | TDS | X17DT (TC4EE1) | Estate | Astra F | |
| Opel, Passenger Car EU | Vectra | 1.7 | Diesel | 1995 10 | 1998 12 | 60 | 82 | 1686 | 4 | TD | X17DT (TC4EE1) | Hatchback | Vectra B | |
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1991 12 | 1998 01 | 60 | 82 | 1686 | 4 | TDS | X17DT (TC4EE1) | Hatchback | Astra F | |
| Opel, Passenger Car EU | Combo | 1.7 | Diesel | 1994 07 | 2001 10 | 44 | 60 | 1686 | 4 | Diesel | X17D (4EE1) | Van | Combo | |
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1992 03 | 1998 09 | 60 | 82 | 1686 | 4 | TDS | X17DT (TC4EE1) | Astra F | ||
| Opel, Passenger Car EU | Vectra | 1.7 | Diesel | 1995 10 | 1998 12 | 60 | 82 | 1686 | 4 | TD | X17DT (TC4EE1) | Vectra B | ||
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1994 11 | 1998 09 | 50 | 68 | 1700 | 4 | TD | X17DTL | Astra F | ||
| Opel, Passenger Car EU | Combo | 1.7 | Diesel | 1994 07 | 2001 10 | 44 | 60 | 1686 | 4 | Diesel | 17D (4EE1) | Van | Combo | |
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1991 12 | 1998 01 | 60 | 82 | 1686 | 4 | TDS | X17DT (TC4EE1) | Hatchback | Astra F | |
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1991 12 | 1998 01 | 60 | 82 | 1686 | 4 | TDS | X17DT (TC4EE1) | Estate | Astra F | |
| Opel, Passenger Car EU | Vectra | 1.7 | Diesel | 1995 10 | 1998 12 | 60 | 82 | 1686 | 4 | TD | X17DT (TC4EE1) | Hatchback | Vectra B | |
| Opel, Passenger Car EU | Combo | 1.7 | Diesel | 1994 07 | 2001 10 | 44 | 60 | 1686 | 4 | Diesel | X17D (4EE1) | Van | Combo | |
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1992 03 | 1998 09 | 60 | 82 | 1686 | 4 | TDS | X17DT (TC4EE1) | Astra F | ||
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1994 11 | 1998 09 | 50 | 68 | 1700 | 4 | TD | X17DTL | Astra F | ||
| Opel, Passenger Car EU | Combo | 1.7 | Diesel | 1994 07 | 2001 10 | 44 | 60 | 1686 | 4 | Diesel | 17D (4EE1) | Van | Combo | |
| Opel, Passenger Car EU | Vectra | 1.7 | Diesel | 1995 10 | 1998 12 | 60 | 82 | 1686 | 4 | TD | X17DT (TC4EE1) | Vectra B | ||
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1991 12 | 1998 01 | 60 | 82 | 1686 | 4 | TDS | X17DT (TC4EE1) | Hatchback | Astra F | |
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1991 12 | 1998 01 | 60 | 82 | 1686 | 4 | TDS | X17DT (TC4EE1) | Estate | Astra F | |
| Opel, Passenger Car EU | Vectra | 1.7 | Diesel | 1995 10 | 1998 12 | 60 | 82 | 1686 | 4 | TD | X17DT (TC4EE1) | Hatchback | Vectra B |
