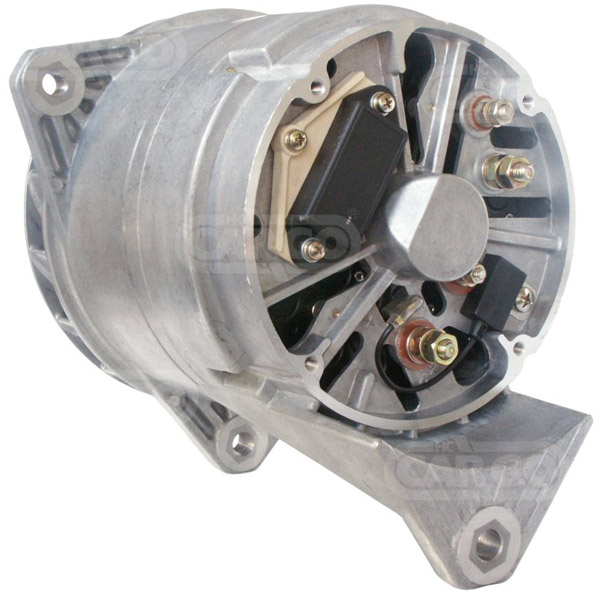

111842 - Alternator (111842)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 28,
Amp: 140, Terminal W,
Bracket Hole: M12, Belt. adj. bracket hole M12,
Width/Holder Arm: 15.00, Belt. adj. brackethole pos. 10,
Mount. Bracket Dist.: 180.00,
Radius: 129.00,
Radius: 127.70,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: EF, Pulley w/o, Remarks B- M8. Shaft 30 mm.,
Total Length: 313.00

Electrical specifications (Alternator)
Voltage 28
Amp 140
Terminal W

Physical specifications (Alternator)
D Bracket hole M12
G Belt. adj. bracket hole M12
B Width/holder arm 15.00
E Belt. adj. brackethole pos. 10
C Mount. bracket dist. 180.00
j Radius 129.00
j Radius 127.70
k B+ position M8
n Rotation CR
o Regulator plug PL_NA
R Total length 313.00

Further information (Alternator)
Blower EF
Pulley w/o
Remarks B- M8. Shaft 30 mm.

Replacing
0111549602 MERCEDES BENZ
0120689504 BOSCH
0120689507 BOSCH
0120689517 BOSCH
0120689522 BOSCH
0120689527 BOSCH
0120689540 BOSCH
0120689541 BOSCH
0120689569 BOSCH
0120689575 BOSCH

UNISTART Price: £414.38

Sorry, this item is out of stock.

The 111842 - Alternator is shown in: Starters & Alternators > Alternators , Trucks, Trailers and Buses > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
MAN, Trucks EU Lions Comfort 12 Diesel 1996 09 - 228 310 11967 6 D2866LUH20 Bus RN 313
MAN, Trucks EU Lions Coach 12 Diesel 1995 09 - 257 350 11967 6 D2866LOH26 Bus RH 352
MAN, Trucks EU Lions Coach 12 Diesel 1995 09 - 294 400 11967 6 D2866LOH23 Bus RH 402
MAN, Trucks EU Lions Star 12 Diesel 1995 09 - 257 350 11967 6 D2866LOH26 Bus RH 352
MAN, Trucks EU Lions Star 12 Diesel 1995 09 - 294 400 11967 6 D2866LOH23 Bus RH 403
MAN, Trucks EU EL Series 6.9 Diesel 1993 01 1997 06 157 214 6871 6 D0826LUH03 Bus EL 222
MAN, Trucks EU EL Series 6.9 Diesel 1994 04 1997 06 184 250 6871 6 D0826LUH Bus EL 202
MAN, Trucks EU EL Series 6.9 Diesel 1994 04 1997 06 184 250 6871 6 D0826LUH Bus EL 262
MAN, Trucks EU ÜL Series 10 Diesel 1993 03 - 198 270 9973 5 D2865LUH02 Bus ÜL 272
MAN, Trucks EU ÜL Series 10 Diesel 1992 04 1996 09 228 310 9973 5 D2865LUH07 Bus ÜL 312
MAN, Trucks EU ÜL Series 10 Diesel 1992 04 1996 09 228 310 9973 5 D2865LUH08 Bus ÜL 312
MAN, Trucks EU NÜ Series 6.9 Diesel 1998 07 - 191 260 6871 0 D0826LUH13 Bus NÜ 263
MAN, Trucks EU NÜ Series 10 Diesel 1996 09 1998 07 191 260 9973 5 D2865LUH09 Bus NÜ 263
MAN, Trucks EU NÜ Series 12 Diesel 1998 07 - 191 260 11967 0 D2866LUH22 Bus NÜ 263
MAN, Trucks EU NG Series 12 Diesel 1998 07 - 228 310 11967 6 D2866LUH26 Bus NG 312
MAN, Trucks EU NL Series 6.9 Diesel 1992 08 - 157 214 6871 6 D0826LUH03 Bus NL 202
MAN, Trucks EU NL Series 12 Diesel 1998 07 - 191 260 11967 6 D2866LUH22 Bus NL 263
MAN, Trucks EU SÜ Series 12 Diesel 1986 01 1989 09 213 290 11967 6 D2866TOH Bus SÜ 240
MAN, Trucks EU SL Series 12 Diesel 1984 06 1994 04 177 241 11967 6 D2866UH Bus SL II 202
MAN, Trucks EU SG Series 10 Diesel 1994 02 1997 06 228 310 9973 5 D2865LUH08 Bus SG 312
MAN, Trucks EU SG Series 10 Diesel 1994 02 1997 06 228 310 9973 5 D2865LUH08 Bus SG 322
MAN, Trucks EU NM Series 6.9 Diesel 1996 02 - 162 220 6871 6 D0826LUH12 Bus NM 223
MAN, Trucks EU SÜ Series 12 Diesel 2003 09 - 265 360 11967 6 D2866LUH25 Bus SÜ 263
MAN, Trucks EU Lions Star 12.8 Diesel 2000 03 - 338 460 12816 6 D2876LOH03 Bus RHS 464
MAN, Trucks EU Lions Star 12 Diesel 2000 03 - 301 410 11967 6 D2866LOH34 Bus RHS 414
MAN, Trucks EU Lions Star 12 Diesel 2002 01 - 301 410 11967 6 D2866LOH34 Bus RHS 414
MAN, Trucks EU 18t 10.5 Diesel 2006 10 - 235 320 10518 6 D2066LOH01 Bus 18.32
MAN, Trucks EU 13t 6.9 Diesel 1998 07 2001 09 162 220 9871 6 D0826LUH12 Bus 13.22
MAN, Trucks EU Lions Comfort 12 Diesel 1996 09 - 228 310 11967 6 D2866LUH26 Bus RN 313
MAN, Trucks EU Lions Comfort 12 Diesel 1997 06 - 257 350 11967 6 D2866LUH21 Bus RN 353
MAN, Trucks EU Lions Coach 12 Diesel 1995 09 - 257 350 11967 6 D2866LOH26 Bus RN 353
MAN, Trucks EU EL Series 6.9 Diesel 1993 01 1997 06 157 214 6871 6 D0826LUH05 Bus EL 202
MAN, Trucks EU EL Series 6.9 Diesel 1993 01 1997 06 157 214 6871 6 D0826LUH12 Bus EL 222
MAN, Trucks EU ÜL Series 12 Diesel 1997 06 - 257 350 11967 6 D2866LUH21 Bus ÜL 353
MAN, Trucks EU NÜ Series 12 Diesel 1998 07 - 228 310 11967 6 D2866LUH26 Bus NÜ 313 15
MAN, Trucks EU NG Series 12 Diesel 1998 07 - 228 310 11967 6 D2866LUH26 Bus NG 313
MAN, Trucks EU NL Series 6.9 Diesel 1992 08 - 157 214 6871 6 D0826LUH12 Bus NL 202
MAN, Trucks EU NL Series 6.9 Diesel 1991 04 - 184 250 6871 6 D0826LUH Bus NL 263
MAN, Trucks EU SL Series 11.4 Diesel 1980 05 1986 01 177 241 11413 6 D2566MUH Bus SL 200
MAN, Trucks EU SG Series 12 Diesel 1985 09 1994 04 177 241 11967 6 D2866UH Bus SG 240
MAN, Trucks EU SG Series 12 Diesel 1984 11 1989 09 213 290 11967 6 D2866TUH Bus SG 292
MAN, Trucks EU SG Series 10 Diesel 1994 02 1997 06 228 310 9973 5 D2865LUH07 Bus SG 322
MAN, Trucks EU SG Series 12 Diesel 1985 09 1994 04 224 305 11967 6 D2866TUH Bus SG 292
MAN, Trucks EU EM Series 6.9 Diesel 1996 02 - 162 220 6871 6 D0826LOH15 Bus EM 222
MAN, Trucks EU NM Series 6.9 Diesel 1990 05 1997 03 130 177 6871 6 D0826TOH Bus NM 192
MAN, Trucks EU Lions Star 12.8 Diesel 2002 01 - 338 460 12816 6 D2876LOH03 Bus RH 464
MAN, Trucks EU Lions Coach 12 Diesel 2002 06 - 301 410 11967 6 D2866LOH34 Bus RHC 414
MAN, Trucks EU 18t 12 Diesel 2000 04 - 265 360 11967 6 D2866LF27 Platform / Chassis 18.36
MAN, Trucks EU Lions Coach 12 Diesel 1998 09 - 294 400 11967 6 D2866LOH23 Bus RH 403
MAN, Trucks EU 26t 6.9 Diesel 2001 05 - 206 280 6871 #I/T 26.285
MAN, Trucks EU 11t 6.9 Diesel 1993 03 1996 09 0 0 6871 6 D0826LOH06 Bus 11.19
MAN, Trucks EU 11t 6.9 Diesel 1995 11 2000 12 162 220 9871 6 D0826LOH15 Bus 11.22
MAN, Trucks EU Lions Star 12 Diesel 1995 09 - 294 400 11967 6 D2866LOH23 Bus RH 402
MAN, Trucks EU Lions Star 12 Diesel 1993 01 1996 09 309 420 11967 6 D2866LOH20 Bus FRH 422
MAN, Trucks EU R Series 12 Diesel 1985 05 1992 12 265 360 11967 6 D2866KUH Bus R 362
MAN, Trucks EU EL Series 6.9 Diesel 1993 01 1997 06 157 214 6871 6 D0826LUH03 Bus EL 202
MAN, Trucks EU ÜL Series 10 Diesel 1993 03 - 198 270 9973 5 D2865LUH05 Bus ÜL 272
MAN, Trucks EU ÜL Series 12 Diesel 1989 09 1993 03 213 290 11967 6 D2866TUH01 Bus ÜL 292
MAN, Trucks EU NÜ Series 12 Diesel 1998 07 - 257 350 11967 6 D2866LUH21 Bus NÜ 353 15
MAN, Trucks EU NG Series 12 Diesel 1998 07 - 191 260 11967 6 D2866LUH22 Bus NG 262
MAN, Trucks EU NL Series 6.9 Diesel 1992 08 - 157 214 6871 6 D0826LUH12 Bus NL 222
MAN, Trucks EU NL Series 6.9 Diesel 1992 08 - 157 214 6871 6 D0826LUH12 Bus NL 223
MAN, Trucks EU NL Series 10 Diesel 1995 11 1998 07 228 310 9973 5 D2865LUH07 Bus NL 312
MAN, Trucks EU SÜ Series 10 Diesel 1993 04 1995 05 198 270 9973 5 D2865LUH02 Bus SÜ 272
MAN, Trucks EU SÜ Series 12 Diesel 1987 01 1993 04 180 245 11967 6 D2866UH Bus SÜ 242
MAN, Trucks EU SL Series 11.4 Diesel 1980 05 1987 04 147 200 11413 6 D2566UH Bus SL 200
MAN, Trucks EU SL Series 12 Diesel 1986 01 1987 04 177 241 11967 6 D2866UH Bus SL 200
MAN, Trucks EU SG Series 12 Diesel 1985 09 1994 04 177 241 11967 6 D2866UH Bus SG 242
MAN, Trucks EU SG Series 12 Diesel 1985 09 1994 04 224 305 11967 6 D2866TUH Bus SG 242
MAN, Trucks EU SM Series 6.9 Diesel 1987 11 1995 02 130 177 6871 6 D0826LOH01 Bus SM 182
MAN, Trucks EU EM Series 6.9 Diesel 1996 02 - 162 220 6871 6 D0826LOH15 Bus EM 223
MAN, Trucks EU NM Series 6.9 Diesel 1990 05 1993 10 110 150 6871 6 D0826OH02 Bus NM 152
MAN, Trucks EU NM Series 6.9 Diesel 1996 02 - 162 220 6871 6 D0826LOH15 Bus NM 222
MAN, Trucks EU Lions Star 12 Diesel 2002 01 - 301 410 11967 6 D2866LOH34 Bus RH 414
MAN, Trucks EU Lions Star 12 Diesel 2000 03 - 301 410 11967 6 D2866LOH34 Bus RH 414
MAN, Trucks EU EM Series 6.9 Diesel 1987 08 - 162 220 6871 6 D0826LOH15 Bus EM 223
MAN, Trucks EU EL Series 6.9 Diesel 1993 01 1997 06 157 214 6871 6 D0826LUH12 Bus EL 202
MAN, Trucks EU EL Series 6.9 Diesel 1993 01 1997 06 157 214 6871 6 D0826LUH05 Bus EL 222
MAN, Trucks EU ÜL Series 12 Diesel 1996 09 - 228 310 11967 6 D2866LUH20 Bus ÜL 313
MAN, Trucks EU ÜL Series 12 Diesel 1996 09 - 228 310 11967 6 D2866LUH26 Bus ÜL 313
MAN, Trucks EU NG Series 6.9 Diesel 1992 08 1998 07 191 260 6871 6 D0826LUH01 Bus NG 272
MAN, Trucks EU NG Series 10 Diesel 1995 09 1998 07 228 310 9973 5 D2865LUH07 Bus NG 312
MAN, Trucks EU NL Series 6.9 Diesel 1992 08 - 157 214 6871 6 D0826LUH03 Bus NL 222
MAN, Trucks EU NL Series 6.9 Diesel 1992 08 - 157 214 6871 6 D0826LUH03 Bus NL 223
MAN, Trucks EU NL Series 6.9 Diesel 1991 04 - 184 250 6871 6 D0826LUH Bus NL 202
MAN, Trucks EU NL Series 6.9 Diesel 1991 04 - 184 250 6871 6 D0826LUH Bus NL 262
MAN, Trucks EU NL Series 10 Diesel 1997 06 - 191 260 9973 5 D2865LUH09 Bus NL 262
MAN, Trucks EU NL Series 12 Diesel 1998 07 - 191 260 11967 6 D2866LUH22 Bus NL 262
MAN, Trucks EU NL Series 12 Diesel 1998 07 - 228 310 11967 6 D2866LUH26 Bus NL 313
MAN, Trucks EU SÜ Series 10 Diesel 1995 05 1997 06 235 320 9973 5 D2865LUH08 Bus SÜ 322
MAN, Trucks EU SD Series 11.4 Diesel 1975 10 1986 11 141 192 11413 6 D2566MUH/200 Bus SD 200
MAN, Trucks EU SM Series 6.9 Diesel 1987 11 1994 04 110 150 6871 6 D0826OH02 Bus SM 152
MAN, Trucks EU NM Series 6.9 Diesel 1990 05 1997 03 130 177 6871 6 D0826LOH01 Bus NM 182
MAN, Trucks EU NM Series 6.9 Diesel 1990 05 1997 03 130 177 6871 6 D0826TOH Bus NM 182
MAN, Trucks EU 11t 6.9 Diesel 1996 02 2001 09 162 220 6871 6 D0826LOH15 Bus EM 11.222
MAN, Trucks EU 13t 6.9 Diesel 1997 06 2001 09 162 220 6871 6 D0826LUH12 Bus EM 13.222
MAN, Trucks EU Lions Coach 12 Diesel 1995 09 - 294 400 11967 6 D2866LOH23 Bus RH 403
MAN, Trucks EU SR Series 11.4 Diesel 1977 01 1986 11 206 280 11413 6 D2566MTUH Bus SR 280
MAN, Trucks EU SR Series 11.4 Diesel 1982 03 1986 11 235 320 11413 6 D2566MKUH Bus SR 321
MAN, Trucks EU R Series 12 Diesel 1985 05 1993 01 213 290 11967 6 D2866TUH Bus R 292
MAN, Trucks EU EL Series 12 Diesel 1998 07 - 191 260 11967 6 D2866LUH22 Bus EL 262
MAN, Trucks EU ÜL Series 10 Diesel 1992 04 1996 09 228 310 9973 5 D2865LUH07 Bus ÜL 322
MAN, Trucks EU NÜ Series 12 Diesel 1998 07 - 228 310 11967 6 D2866LUH26 Bus NÜ 313
MAN, Trucks EU NG Series 10 Diesel 1997 06 1998 07 191 260 9973 5 D2865LUH09 Bus NG 262
MAN, Trucks EU NG Series 12 Diesel 1998 07 - 191 260 11967 6 D2866LUH22 Bus NG 263
MAN, Trucks EU NL Series 6.9 Diesel 1989 09 1994 04 157 214 6871 6 D0826LUH Bus NL 202
MAN, Trucks EU SL Series 11.4 Diesel 1984 06 1993 04 147 200 11413 6 D2566UH Bus SL II 202
MAN, Trucks EU SG Series 11.4 Diesel 1980 05 1985 01 147 200 11413 6 D2566MUM Bus SG 220
MAN, Trucks EU EM Series 6.9 Diesel 1996 02 - 162 220 6871 6 D0826LUH12 Bus EM 223
MAN, Trucks EU EM Series 6.9 Diesel 1996 02 - 162 220 6871 6 D0826LUH12 Bus EM 222
MAN, Trucks EU NM Series 6.9 Diesel 1990 05 1997 03 130 177 6871 6 D0826LOH01 Bus NM 192
MAN, Trucks EU NM Series 4.4 Diesel 1992 04 1997 03 114 155 4395 4 D0824LOH01 Bus NM 152
MAN, Trucks EU NM Series 6.9 Diesel 1987 08 - 162 220 6871 6 D0826LOH15 Bus NM 223
MAN, Trucks EU Lions Coach 12.8 Diesel 2000 01 - 338 460 12816 6 D2876LOH02 Bus RH 463
MAN, Trucks EU Lions Coach 12.8 Diesel 2000 01 - 338 460 12816 6 D2876LOH01 Bus RH 463
MAN, Trucks EU SÜ Series 6.9 Diesel 2003 09 - 206 280 6871 6 D0836LOH02 Bus SÜ 283
MAN, Trucks EU Lions Star 12.8 Diesel 2000 03 - 338 460 12816 6 D2876LOH03 Bus RH 464
MAN, Trucks EU Lions Star 12.8 Diesel 2002 01 - 338 460 12816 6 D2876LOH03 Bus RHS 464
MAN, Trucks EU 10t 6.9 Diesel 1988 01 1992 05 0 0 6 D0826OH02 Bus 10.15
MAN, Trucks EU 10t 6.9 Diesel 1988 01 1992 05 0 0 6 6 D0826OH02 Bus 10.18
Neoplan, Trucks EU Tourliner 12.8 Diesel 2003 01 - 338 460 12816 6 D2876LOH03 Bus N 2216 SHDL
Neoplan, Trucks EU Tourliner 12 Diesel 2003 01 - 301 410 11967 6 D2866LOH34 Bus N 2216 SHD
Neoplan, Trucks EU Tourliner 12.8 Diesel 2003 01 - 338 460 12816 6 D2876LOH03 Bus N 2216 SHD
Neoplan, Trucks EU Tourliner 12 Diesel 2003 01 - 301 410 11967 6 D2866LOH34 Bus N 2216 SHDL
Neoplan, Trucks EU Tourliner 12.8 Diesel 2003 01 - 338 460 12816 6 D2876LOH03 Bus N 2216 SHD
Mercedes-Benz, Trucks EU 8t 6 Diesel 1984 01 1998 12 95 129 5958 6 OM356.901 Platform / Chassis 814
