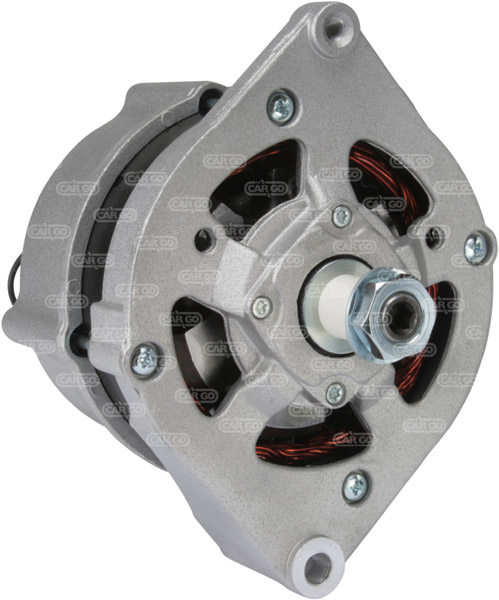

111843 - Alternator (111843)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 95, Terminal W,
Bracket Hole: 10.00, Belt. adj. bracket hole M8,
Width/Holder Arm: 51.00, Belt. adj. brackethole pos. 60,
Radius: 85.30,
Radius: 88.85,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: w/o, Pulley w/o, Remarks B- M8.,
Total Length: 174.00
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 95 | |||
| Terminal | W | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 10.00 | |||
| G | Belt. adj. bracket hole M8 | |||
| B | Width/holder arm 51.00 | |||
| E | Belt. adj. brackethole pos. 60 | |||
| j | Radius 85.30 | |||
| j | Radius 88.85 | |||
| k | B+ position M8 | |||
| n | Rotation CR | |||
| o | Regulator plug PL_NA | |||
| R | Total length 174.00 | |||
Further information (Alternator) | ||||
| Blower | w/o | |||
| Pulley | w/o | |||
| Remarks | B- M8. | |||
Replacing | ||||
| 0120484011 | BOSCH | |||
| 0120484018 | BOSCH | |||
| 0120484026 | BOSCH | |||
| 0120484050 | BOSCH | |||
| 0120484218 | BOSCH | |||
| 11.201.727 | ISKRA | |||
| 11.201.875 | ISKRA | |||
| 11.201.997 | ISKRA | |||
| 11.203.268 | ISKRA | |||
| 11.203.660 | ISKRA | |||
UNISTART Price: £101.13
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Case, Agricultural | 400 Series | 1989 01 | 1994 01 | 0 | 0 | 0 | C | 450 | ||||||
| Case, Agricultural | 5000 Series | 1990 01 | - | 0 | 0 | 0 | 6T-590 | Maxxum | 5140 | |||||
| Case, Agricultural | 100 Series | 1997 05 | - | 0 | 0 | 0 | Cummins 6BT | 110 | ||||||
| Case, Agricultural | 100 Series | 1997 05 | - | 0 | 0 | 0 | Cummins 6BT | 120 | ||||||
| Case, Agricultural | 800 Series | 1989 01 | 1994 01 | 0 | 0 | 0 | G/D/E | 850 | ||||||
| Case, Agricultural | 1000 Series | 1989 01 | 1994 01 | 0 | 0 | 0 | 1550 | |||||||
| Case, Agricultural | MX | 1995 01 | 2002 01 | 0 | 0 | 0 | MX | |||||||
| Case, Agricultural | 5000 Series | 1990 01 | - | 0 | 0 | 0 | 6T-590 | Maxxum | 5130 | |||||
| Case, Agricultural | 400 Series | 1989 01 | 1994 01 | 0 | 0 | 0 | 455 | |||||||
| Case, Agricultural | 400 Series | 1989 01 | 1994 01 | 0 | 0 | 0 | CK | 480 | ||||||
| Case, Agricultural | 500 Series | Diesel | 1982 01 | 1994 01 | 0 | 0 | 0 | 580 | ||||||
| Case, Agricultural | 1000 Series | 1989 01 | 1994 01 | 0 | 0 | 0 | E/G | 1150 | ||||||
| Case, Agricultural | 1000 Series | 1989 01 | 1994 01 | 0 | 0 | 0 | E | 1155 | ||||||
| Case, Agricultural | 100 Series | 1997 05 | - | 0 | 0 | 0 | Cummins 6BT | 135 | ||||||
| Case, Agricultural | 1000 Series | 1989 01 | 1994 01 | 0 | 0 | 0 | 1150 | |||||||
| Case, Agricultural | 5000 Series | 1990 01 | - | 0 | 0 | 0 | 6T-590 | Maxxum | 5120 | |||||
| John Deere, Marine | Engine | - | - | 0 | 0 | 0 | 4045DFM70 | |||||||
| John Deere, Marine | Engine | - | - | 0 | 0 | 0 | 4045DFM50 |
