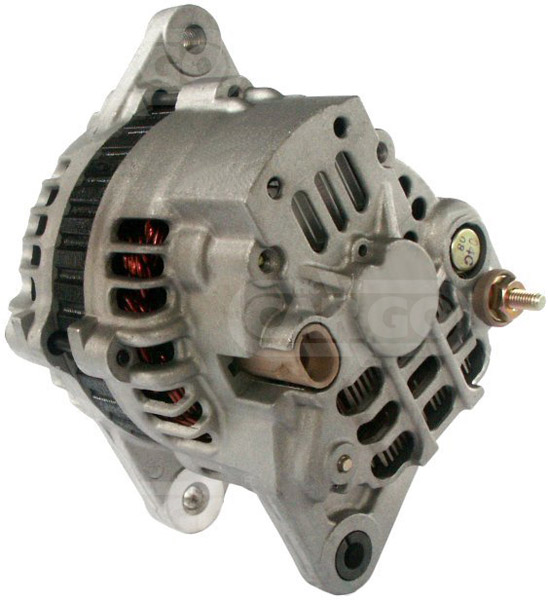

111847 - Alternator (111847)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 65,
Bracket Hole: 8.50, Belt. adj. bracket hole M8,
Width/Holder Arm: 15.10, Belt. adj. brackethole pos. 60,
Mount. Bracket Dist.: 65.30,
Pulley Dia.: 69.50,
Pulley Dist.: 42.00,
Grooves/Pulley: 1,
Radius: 78.00,
Radius: 78.00,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL77,
Blower: IF, Pulley P,
Total Length: 161.00
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 65 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 8.50 | |||
| G | Belt. adj. bracket hole M8 | |||
| B | Width/holder arm 15.10 | |||
| E | Belt. adj. brackethole pos. 60 | |||
| C | Mount. bracket dist. 65.30 | |||
| H | Pulley dia. 69.50 | |||
| A | Pulley dist. 42.00 | |||
| i | Grooves/pulley 1 | |||
| j | Radius 78.00 | |||
| j | Radius 78.00 | |||
| k | B+ position M6 | |||
| n | Rotation CR | |||
| o | Regulator plug PL77 | |||
| R | Total length 161.00 | |||
Further information (Alternator) | ||||
| Blower | IF | |||
| Pulley | P | |||
Replacing | ||||
| 2655476 | VALEO | |||
| 96404263 | CHEVROLET | |||
| 96404263 | DAEWOO | |||
| 96566262 | CHEVROLET | |||
| 96566262 | DAEWOO | |||
| 96566262 | REMY (DELCO) | |||
| TA000A52201 | VALEO | |||
UNISTART Price: £105.97
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Chevrolet, Passenger Car EU | Kalos | 1.2 | Gasoline | 2005 03 | - | 53 | 72 | 1150 | 4 | B12S1 | Hatchback | Kalos | ||
| Chevrolet, Passenger Car EU | Aveo | 1.2 | Gasoline | 2008 04 | - | 62 | 84 | 1206 | 4 | B12D1 | Hatchback | Aveo | ||
| Chevrolet, Passenger Car EU | Aveo | 1.2 | Gasoline | 2006 03 | 2007 12 | 53 | 72 | 1150 | 4 | LQ5 | Aveo | |||
| Chevrolet, Passenger Car EU | Aveo | 1.2 | Gasoline | 2008 04 | - | 62 | 84 | 1206 | 4 | LMU | Hatchback | Aveo | ||
| Chevrolet, Passenger Car EU | Aveo | 1.2 | Gasoline | 2006 03 | 2007 12 | 53 | 72 | 1150 | 4 | F12S3 | Aveo | |||
| SGMW, Passenger cars AO | Spark | 0.8 | Gasoline | 2002 11 | - | 38 | 52 | 796 | 3 | F8CV | Hatchback | Spark |
