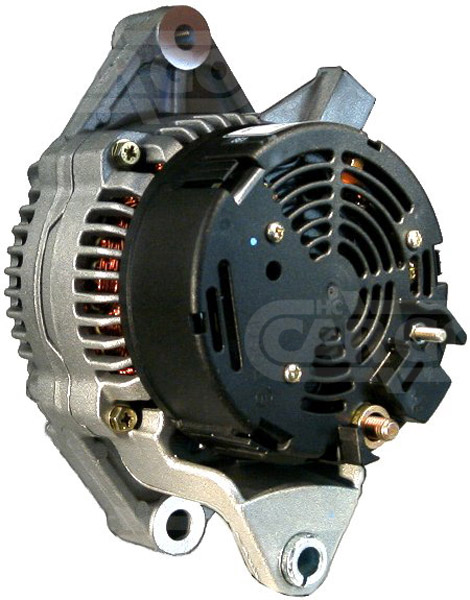

111891 - Alternator (111891)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 70,
Bracket Hole: 10.50, Belt. adj. bracket hole M8,
Width/Holder Arm: 33.60, Belt. adj. brackethole pos. 60,
Mount. Bracket Dist.: 56.00,
Pulley Dia.: 68.45,
Pulley Dist.: 52.75,
Grooves/Pulley: 1,
Radius: 92.00,
Radius: 92.50,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: IF, Pulley P,
Total Length: 170.00
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 70 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 10.50 | |||
| G | Belt. adj. bracket hole M8 | |||
| B | Width/holder arm 33.60 | |||
| E | Belt. adj. brackethole pos. 60 | |||
| C | Mount. bracket dist. 56.00 | |||
| H | Pulley dia. 68.45 | |||
| A | Pulley dist. 52.75 | |||
| i | Grooves/pulley 1 | |||
| j | Radius 92.00 | |||
| j | Radius 92.50 | |||
| k | B+ position M8 | |||
| n | Rotation CR | |||
| o | Regulator plug PL_NA | |||
| R | Total length 170.00 | |||
Further information (Alternator) | ||||
| Blower | IF | |||
| Pulley | P | |||
Replacing | ||||
| 0123110005 | BOSCH | |||
| 0124225031 | BOSCH | |||
| 1204129 | OPEL | |||
| 90289247 | OPEL | |||
| 90389247 | OPEL | |||
| 90511446 | OPEL | |||
| 93603136 | OPEL | |||
