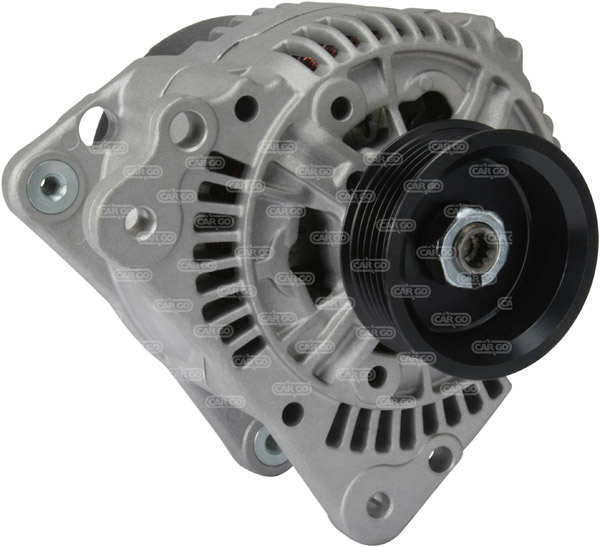

111899 - Alternator (111899)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 90, Terminal W,
Bracket Hole: 8.50, Belt. adj. bracket hole 8.50,
Width/Holder Arm: 14.00, Belt. adj. brackethole pos. 45,
Mount. Bracket Dist.: 61.00,
Pulley Dia.: 68.00,
Pulley Dist.: 39.50,
Grooves/Pulley: 6,
Radius: 90.00,
Radius: 90.00,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL23,
Blower: IF, Pulley SP,
Total Length: 188.00

Electrical specifications (Alternator)
Voltage 14
Amp 90
Terminal W

Physical specifications (Alternator)
D Bracket hole 8.50
G Belt. adj. bracket hole 8.50
B Width/holder arm 14.00
E Belt. adj. brackethole pos. 45
C Mount. bracket dist. 61.00
H Pulley dia. 68.00
A Pulley dist. 39.50
i Grooves/pulley 6
j Radius 90.00
j Radius 90.00
k B+ position M8
n Rotation CR
o Regulator plug PL23
R Total length 188.00

Further information (Alternator)
Blower IF
Pulley SP

Replacing
0123320018 BOSCH
028903027n VOLKSWAGEN
11.203.079 ISKRA
9517189 MAGNETON (PAL/SKODA)
aak5350 ISKRA

UNISTART Price: £373.96

Sorry, this item is out of stock.

The 111899 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
VW, Passenger Car EU Transporter 2.5 Gasoline 1995 09 1995 12 81 110 2461 5 AEN Bus T4 Syncro Transporter
VW, Passenger Car EU Transporter 2.4 Diesel 1992 10 1998 09 57 78 2370 5 Diesel AAB Bus T4 Syncro Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1992 11 2003 04 81 110 2461 5 AEU Bus T4 Syncro Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1990 11 2003 04 81 110 2461 5 AEU Bus T4 Transporter
VW, Passenger Car EU Transporter 2.4 Diesel 1990 09 2003 04 57 78 2370 5 Diesel AAB Bus T4 Transporter
VW, Passenger Car EU Transporter 2.4 Diesel 1990 07 1998 04 57 78 2370 5 Diesel AAB Van T4 Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1996 07 2003 04 85 115 2461 5 APL Bus T4 Syncro Transporter
VW, Passenger Car EU Multivan 2.5 Gasoline 1996 08 2003 04 85 115 2461 5 AET Bus Multivan
VW, Passenger Car EU Transporter 2.5 Gasoline 1990 11 2004 03 81 110 2461 5 AAF Platform / Chassis T4 Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1990 11 2004 03 81 110 2461 5 ACU Platform / Chassis T4 Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1990 11 2004 03 81 110 2461 5 AEU Platform / Chassis T4 Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1992 10 2004 03 81 110 2461 5 ACU Platform / Chassis T4 Syncro Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1992 10 2004 03 81 110 2461 5 AEU Platform / Chassis T4 Syncro Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1996 08 2004 03 85 115 2461 5 AET Platform / Chassis T4 Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1996 08 2004 03 85 115 2461 5 AET Platform / Chassis T4 Syncro Transporter
VW, Passenger Car EU Transporter 2.5 Diesel 1998 05 2004 03 65 88 2461 5 TDi AJT Bus T4 Transporter
VW, Passenger Car EU Transporter 2.4 Diesel 1997 08 2003 04 55 75 2370 5 Diesel AJA Van T4 Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1992 11 2003 04 81 110 2461 5 ACU Bus T4 Syncro Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1990 11 2003 04 81 110 2461 5 ACU Bus T4 Transporter
VW, Passenger Car EU Transporter 2.5 Diesel 1995 09 2003 04 75 102 2461 5 TDi ACV Bus T4 Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1992 10 2004 03 81 110 2461 5 AAF Platform / Chassis T4 Syncro Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1995 09 1995 12 81 110 2461 5 AEN Platform / Chassis T4 Syncro Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1996 08 2004 03 85 115 2461 5 AET Van T4 Syncro Transporter
VW, Passenger Car EU LT 2.5 Diesel 1996 09 - 55 75 2461 5 SDi AGX Platform / Chassis LT 28-35
VW, Passenger Car EU LT 2.8 Diesel 1997 06 1998 12 92 125 2799 4 TDi AGK Platform / Chassis LT 28-35
VW, Passenger Car EU Transporter 2.5 Diesel 1998 05 2003 04 65 88 2461 5 TD AJT Platform / Chassis T4 Transporter
VW, Passenger Car EU Transporter 2.5 Diesel 1998 05 2003 04 65 88 2461 5 TD AYY Platform / Chassis T4 Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1992 11 2003 04 81 110 2461 5 AAF Bus T4 Syncro Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1990 11 2003 04 81 110 2461 5 AAF Bus T4 Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1990 11 2003 04 81 110 2461 5 AEN Bus T4 Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1990 11 2003 04 81 110 2461 5 AAF Van T4 Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1990 11 2003 04 81 110 2461 5 AEN Van T4 Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1992 10 2003 04 81 110 2461 5 AAF Van T4 Syncro Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1992 10 2003 04 81 110 2461 5 ACU Van T4 Syncro Transporter
VW, Passenger Car EU Transporter 2.4 Diesel 1992 10 1998 09 57 78 2370 5 Diesel AAB Van T4 Syncro Transporter
VW, Passenger Car EU Multivan 2.5 Gasoline 1996 08 - 85 115 2461 5 APL Bus Multivan
VW, Passenger Car EU LT 2.5 Diesel 1996 05 1999 08 75 102 2461 5 TDi AHD Bus LT 28-35
VW, Passenger Car EU LT 2.5 Diesel 1996 05 1999 08 75 102 2461 5 TDi AHD Van LT 28-35
VW, Passenger Car EU LT 2.8 Diesel 1997 06 1998 12 92 125 2799 4 TDi AGK Van LT 28-35
VW, Passenger Car EU Transporter 2.5 Diesel 1995 09 2004 03 75 102 2461 5 TDi ACV Van T4 Transporter
VW, Passenger Car EU Transporter 2.4 Diesel 1997 08 2003 04 55 75 2370 5 Diesel AJA Bus T4 Transporter
VW, Passenger Car EU Transporter 2.5 Diesel 1996 01 2004 03 75 102 2461 5 TDi ACV Bus T4 Syncro Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1990 11 2003 04 81 110 2461 5 AEU Van T4 Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1996 07 2003 04 85 115 2461 5 AVT Bus T4 Syncro Transporter
VW, Passenger Car EU LT 2.5 Diesel 1996 09 - 55 75 2461 5 SDi AGX Van LT 28-35
VW, Passenger Car EU Transporter 2.5 Gasoline 1996 08 2004 03 85 115 2461 5 AET Van T4 Transporter
VW, Passenger Car EU Transporter 2.5 Diesel 1995 09 2004 03 75 102 2461 5 TDi ACV Platform / Chassis T4 Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1990 11 2003 04 81 110 2461 5 ACU Van T4 Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1990 11 2004 03 81 110 2461 5 AEN Platform / Chassis T4 Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1996 08 - 85 115 2461 5 AVT Platform / Chassis T4 Syncro Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1996 08 - 85 115 2461 5 APL Platform / Chassis T4 Syncro Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1996 08 2004 03 85 115 2461 5 AVT Van T4 Transporter
VW, Passenger Car EU Transporter 2.4 Diesel 1992 10 1998 09 57 78 2370 5 Diesel AAB Platform / Chassis T4 Syncro Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1996 07 2003 04 85 115 2461 5 AET Bus T4 Syncro Transporter
VW, Passenger Car EU LT 2.5 Diesel 1996 05 2001 04 55 75 2461 5 SDi AGX Bus LT 28-35
VW, Passenger Car EU LT 2.5 Diesel 1996 06 1999 08 75 102 2461 5 TDi AHD Platform / Chassis LT 28-35
VW, Passenger Car EU Transporter 2.5 Diesel 1998 05 2004 03 65 88 2461 5 TDi AYY Bus T4 Transporter
VW, Passenger Car EU Transporter 2.4 Diesel 1997 08 2003 04 55 75 2370 5 Diesel AJA Platform / Chassis T4 Transporter
VW, Passenger Car EU Transporter 2.5 Diesel 1995 09 2003 04 75 102 2461 5 TDi ACV Van T4 Syncro Transporter
VW, Passenger cars US Eurovan 2.5 Gasoline 1996 01 - 0 0 2459 L5 ACU Eurovan
VW, Passenger cars US Eurovan 2.4 Diesel 1993 01 1996 01 0 0 2390 L5 AAB Eurovan
VW, Passenger Car EU Transporter 2.5 Gasoline 1995 09 1995 12 81 110 2461 5 AEN Bus T4 Syncro Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1990 11 2003 04 81 110 2461 5 AEU Bus T4 Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1996 07 2003 04 85 115 2461 5 APL Bus T4 Syncro Transporter
VW, Passenger Car EU Transporter 2.5 Diesel 1998 05 2003 04 65 88 2461 5 TD AYY Platform / Chassis T4 Transporter
VW, Passenger Car EU Transporter 2.5 Diesel 1998 05 2003 04 65 88 2461 5 TD AJT Platform / Chassis T4 Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1992 11 2003 04 81 110 2461 5 AAF Bus T4 Syncro Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1990 11 2003 04 81 110 2461 5 AAF Bus T4 Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1990 11 2003 04 81 110 2461 5 AAF Van T4 Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1992 10 2003 04 81 110 2461 5 AAF Van T4 Syncro Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1996 07 2003 04 85 115 2461 5 AVT Bus T4 Syncro Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1996 07 2003 04 85 115 2461 5 AET Bus T4 Syncro Transporter
