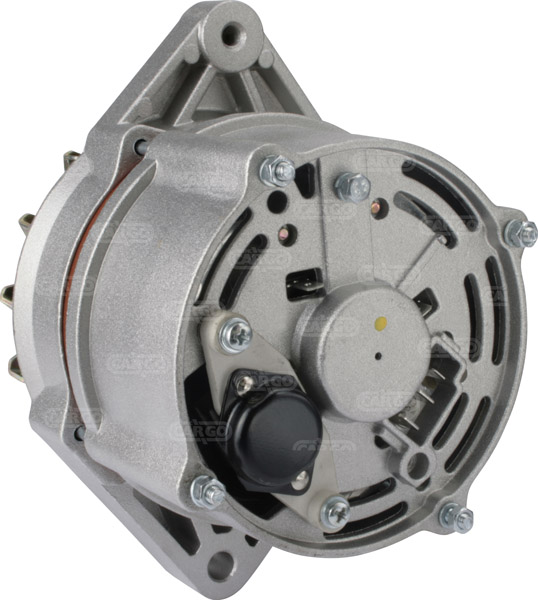

111948 - Alternator (111948)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 70, Terminal W,
Bracket Hole: 10.20, Belt. adj. bracket hole M8,
Width/Holder Arm: 29.00, Belt. adj. brackethole pos. 60,
Radius: >85,
Radius: 87.00,
B+ Position: Plug,
Rotation: CR,
Regulator Plug: or plug PL22,
Blower: EF, Pulley w/o,
Total Length: 159.00
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 70 | |||
| Terminal | W | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 10.20 | |||
| G | Belt. adj. bracket hole M8 | |||
| B | Width/holder arm 29.00 | |||
| E | Belt. adj. brackethole pos. 60 | |||
| j | Radius >85 | |||
| j | Radius 87.00 | |||
| k | B+ position Plug | |||
| n | Rotation CR | |||
| o | Regulator plug PL22 | |||
| R | Total length 159.00 | |||
Further information (Alternator) | ||||
| Blower | EF | |||
| Pulley | w/o | |||
Replacing | ||||
| 11.201.693 | ISKRA | |||
| 23835 | LUCAS | |||
| 23835a | LUCAS | |||
| 23835E | LUCAS | |||
| 23865 | LUCAS | |||
| 23865a | LUCAS | |||
| 23880 | LUCAS | |||
| 23880a | LUCAS | |||
| 24019 | LUCAS | |||
| 24019a | LUCAS | |||
UNISTART Price: £89.81
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Massey Ferguson, Agricultural | MF 200 | 2.5 | Diesel | 1977 01 | 1988 12 | 0 | 0 | 0 | 3 | 255 | ||||
| Massey Ferguson, Agricultural | MF 500 | Diesel | 1976 01 | 1988 12 | 0 | 0 | 0 | 575 | ||||||
| Massey Ferguson, Agricultural | MF 100 | - | - | 0 | 0 | 0 | 194 | |||||||
| Massey Ferguson, Agricultural | MF 200 | - | - | 0 | 0 | 0 | 290 | |||||||
| Massey Ferguson, Agricultural | Various Models | - | - | 0 | 0 | 0 | Various Models | |||||||
| Massey Ferguson, Agricultural | MF 200 | 2.5 | Diesel | 1977 01 | 1988 12 | 0 | 0 | 0 | 3 | 245 | ||||
| Massey Ferguson, Agricultural | MF 2000 | Diesel | 1979 01 | 1985 01 | 0 | 0 | 0 | 2640 | ||||||
| Massey Ferguson, Agricultural | MF 500 | Diesel | 1982 01 | 1988 12 | 0 | 0 | 0 | 565 | ||||||
| Massey Ferguson, Agricultural | MF 200 | 2.5 | Diesel | 1973 01 | 1988 12 | 0 | 0 | 0 | 3 | 254 | ||||
| Massey Ferguson, Agricultural | MF 200 | Diesel | 1981 01 | 1988 12 | 0 | 0 | 0 | 265 | ||||||
| Massey Ferguson, Agricultural | MF 200 | 1980 01 | - | 0 | 0 | 0 | 298 | |||||||
| Massey Ferguson, Agricultural | MF 200 | 2.5 | Diesel | 1979 01 | 1988 12 | 0 | 0 | 0 | 3 | 240 | ||||
| Massey Ferguson, Agricultural | MF 200 | 3.3 | Diesel | 1977 01 | 1988 12 | 0 | 0 | 0 | 260 | |||||
| Massey Ferguson, Agricultural | MF 200 | 3.9 | Diesel | 1983 01 | 1988 12 | 0 | 0 | 0 | 274 | |||||
| Massey Ferguson, Agricultural | MF 200 | Diesel | 1975 01 | 1988 12 | 0 | 0 | 0 | 275 | ||||||
| Massey Ferguson, Agricultural | MF 200 | 3.9 | Diesel | 1973 01 | 1988 12 | 0 | 0 | 0 | 284 | |||||
| Massey Ferguson, Agricultural | MF 200 | Diesel | 1975 01 | 1988 12 | 0 | 0 | 0 | 285 | ||||||
| Massey Ferguson, Agricultural | MF 3000 | 7.4 | Diesel | 1988 06 | - | 0 | 0 | 7365 | 6 | 612DS | 3680 | |||
| Massey Ferguson, Agricultural | MF 3000 | Diesel | 1986 01 | 1990 01 | 0 | 0 | 0 | 3650 | ||||||
| Massey Ferguson, Agricultural | MF 100 | - | - | 0 | 0 | 0 | 152 | |||||||
| Massey Ferguson, Agricultural | MF 200 | 2.5 | Diesel | 1977 01 | 1988 12 | 0 | 0 | 0 | 3 | 255 | ||||
| Massey Ferguson, Agricultural | MF 500 | Diesel | 1976 01 | 1988 12 | 0 | 0 | 0 | 575 | ||||||
| Massey Ferguson, Agricultural | MF 100 | - | - | 0 | 0 | 0 | 194 | |||||||
| Massey Ferguson, Agricultural | MF 200 | - | - | 0 | 0 | 0 | 290 | |||||||
| Massey Ferguson, Agricultural | Various Models | - | - | 0 | 0 | 0 | Various Models | |||||||
| Massey Ferguson, Agricultural | MF 200 | 2.5 | Diesel | 1977 01 | 1988 12 | 0 | 0 | 0 | 3 | 245 | ||||
| Massey Ferguson, Agricultural | MF 2000 | Diesel | 1979 01 | 1985 01 | 0 | 0 | 0 | 2640 | ||||||
| Massey Ferguson, Agricultural | MF 500 | Diesel | 1982 01 | 1988 12 | 0 | 0 | 0 | 565 | ||||||
| Massey Ferguson, Agricultural | MF 200 | 2.5 | Diesel | 1973 01 | 1988 12 | 0 | 0 | 0 | 3 | 254 | ||||
| Massey Ferguson, Agricultural | MF 200 | Diesel | 1981 01 | 1988 12 | 0 | 0 | 0 | 265 | ||||||
| Massey Ferguson, Agricultural | MF 200 | 1980 01 | - | 0 | 0 | 0 | 298 | |||||||
| Massey Ferguson, Agricultural | MF 200 | 2.5 | Diesel | 1979 01 | 1988 12 | 0 | 0 | 0 | 3 | 240 | ||||
| Massey Ferguson, Agricultural | MF 200 | 3.3 | Diesel | 1977 01 | 1988 12 | 0 | 0 | 0 | 260 | |||||
| Massey Ferguson, Agricultural | MF 200 | 3.9 | Diesel | 1983 01 | 1988 12 | 0 | 0 | 0 | 274 | |||||
| Massey Ferguson, Agricultural | MF 200 | Diesel | 1975 01 | 1988 12 | 0 | 0 | 0 | 275 | ||||||
| Massey Ferguson, Agricultural | MF 200 | 3.9 | Diesel | 1973 01 | 1988 12 | 0 | 0 | 0 | 284 | |||||
| Massey Ferguson, Agricultural | MF 200 | Diesel | 1975 01 | 1988 12 | 0 | 0 | 0 | 285 | ||||||
| Massey Ferguson, Agricultural | MF 3000 | 7.4 | Diesel | 1988 06 | - | 0 | 0 | 7365 | 6 | 612DS | 3680 | |||
| Massey Ferguson, Agricultural | MF 3000 | Diesel | 1986 01 | 1990 01 | 0 | 0 | 0 | 3650 | ||||||
| Massey Ferguson, Agricultural | MF 100 | - | - | 0 | 0 | 0 | 152 | |||||||
| Massey Ferguson, Agricultural | MF 200 | 2.5 | Diesel | 1977 01 | 1988 12 | 0 | 0 | 0 | 3 | 255 | ||||
| Massey Ferguson, Agricultural | MF 500 | Diesel | 1982 01 | 1988 12 | 0 | 0 | 0 | 565 | ||||||
| Massey Ferguson, Agricultural | MF 200 | Diesel | 1981 01 | 1988 12 | 0 | 0 | 0 | 265 | ||||||
| Massey Ferguson, Agricultural | MF 200 | 2.5 | Diesel | 1979 01 | 1988 12 | 0 | 0 | 0 | 3 | 240 | ||||
| Massey Ferguson, Agricultural | MF 200 | 3.9 | Diesel | 1983 01 | 1988 12 | 0 | 0 | 0 | 274 | |||||
| Massey Ferguson, Agricultural | MF 200 | Diesel | 1975 01 | 1988 12 | 0 | 0 | 0 | 275 | ||||||
| Massey Ferguson, Agricultural | MF 3000 | 7.4 | Diesel | 1988 06 | - | 0 | 0 | 7365 | 6 | 612DS | 3680 | |||
| Massey Ferguson, Agricultural | MF 3000 | Diesel | 1986 01 | 1990 01 | 0 | 0 | 0 | 3650 |
TEST & REPAIR SERVICE
Unistart has its own workshops for remanufacturing with the latest testing equipment. This enables us to provide an excellent (and free) technical helpline and aftersales support and backup service.
You can speak to one of our friendly and knowledgeable technicians who will be glad to Help with any enquiries no matter how large or small. Call us on 020 8 983 9969.
