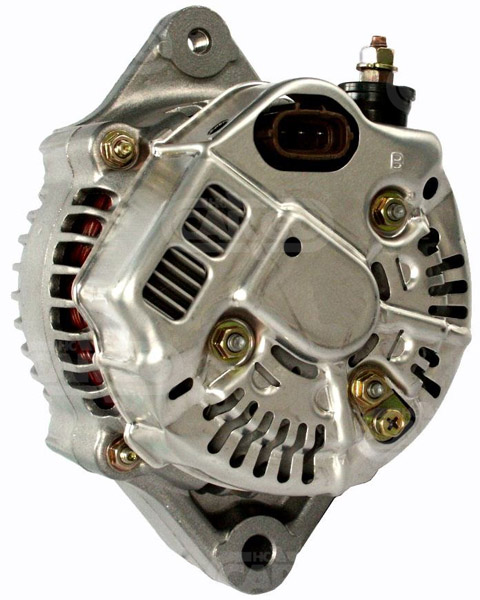

111950 - Alternator (111950)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 85,
Bracket Hole: 10.50, Belt. adj. bracket hole M8,
Width/Holder Arm: 58.00, Belt. adj. brackethole pos. 60,
Pulley Dia.: 60.00,
Pulley Dist.: 88.55,
Grooves/Pulley: 4,
Radius: 77.50,
Radius: 83.00,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL58,
Blower: IF, Pulley SP,
Total Length: 160.00

Electrical specifications (Alternator)
Voltage 14
Amp 85

Physical specifications (Alternator)
D Bracket hole 10.50
G Belt. adj. bracket hole M8
B Width/holder arm 58.00
E Belt. adj. brackethole pos. 60
H Pulley dia. 60.00
A Pulley dist. 88.55
i Grooves/pulley 4
j Radius 77.50
j Radius 83.00
k B+ position M6
n Rotation CR
o Regulator plug PL58
R Total length 160.00

Further information (Alternator)
Blower IF
Pulley SP

Replacing
101211-9180 DENSO
102211-1430 DENSO
102211-2430 DENSO
104210-8140 DENSO
31400-52D10 SUZUKI
31400-77e10 SUZUKI
31400-77E11 SUZUKI
31400-77e12 SUZUKI

UNISTART Price: £133.54

Sorry, this item is out of stock.

The 111950 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Suzuki, Passenger Car EU Baleno 1.6 Gasoline 1995 07 2002 05 72 98 1590 4 i 16V G16B Hatchback Baleno
Suzuki, Passenger Car EU Baleno 1.6 Gasoline 1995 07 2002 05 72 98 1590 4 i 16V G16B Baleno
Suzuki, Passenger Car EU Wagon 1.3 Gasoline 2000 05 2004 12 56 76 1298 4 G13BB MPV Wagon R+
Suzuki, Passenger Car EU Wagon 1.3 Gasoline 2001 10 - 56 76 1298 4 G13BB MPV 4WD Wagon R+
Suzuki, Passenger Car EU Vitara 2.5 Gasoline 1995 12 1998 03 118 160 2493 6 i 24V H25A Vitara
Suzuki, Passenger Car EU Baleno 1.6 Gasoline 1996 08 2002 05 72 98 1590 4 i 16V G16B Estate Baleno
Suzuki, Passenger Car EU Wagon 1.3 Gasoline 2003 09 - 69 94 1328 4 M13A MPV Wagon R+
Suzuki, Passenger Car EU Vitara 2 Gasoline 1994 12 1998 03 100 136 1998 6 i H20A Lang Vitara
Suzuki, Passenger Car EU Baleno 1.6 Gasoline 1995 07 2002 05 72 98 1590 4 i 16V G16B Hatchback Baleno
Suzuki, Passenger Car EU Baleno 1.6 Gasoline 1995 07 2002 05 72 98 1590 4 i 16V G16B Baleno
Suzuki, Passenger Car EU Wagon 1.3 Gasoline 2000 05 2004 12 56 76 1298 4 G13BB MPV Wagon R+
Suzuki, Passenger Car EU Wagon 1.3 Gasoline 2001 10 - 56 76 1298 4 G13BB MPV 4WD Wagon R+
Suzuki, Passenger Car EU Vitara 2.5 Gasoline 1995 12 1998 03 118 160 2493 6 i 24V H25A Vitara
Suzuki, Passenger Car EU Baleno 1.6 Gasoline 1996 08 2002 05 72 98 1590 4 i 16V G16B Estate Baleno
Suzuki, Passenger Car EU Wagon 1.3 Gasoline 2003 09 - 69 94 1328 4 M13A MPV Wagon R+
Suzuki, Passenger Car EU Vitara 2 Gasoline 1994 12 1998 03 100 136 1998 6 i H20A Lang Vitara
Suzuki, Passenger Car EU Wagon 1.3 Gasoline 2001 10 - 56 76 1298 4 G13BB MPV 4WD Wagon R+
Suzuki, Passenger Car EU Wagon 1.3 Gasoline 2003 09 - 69 94 1328 4 M13A MPV Wagon R+
