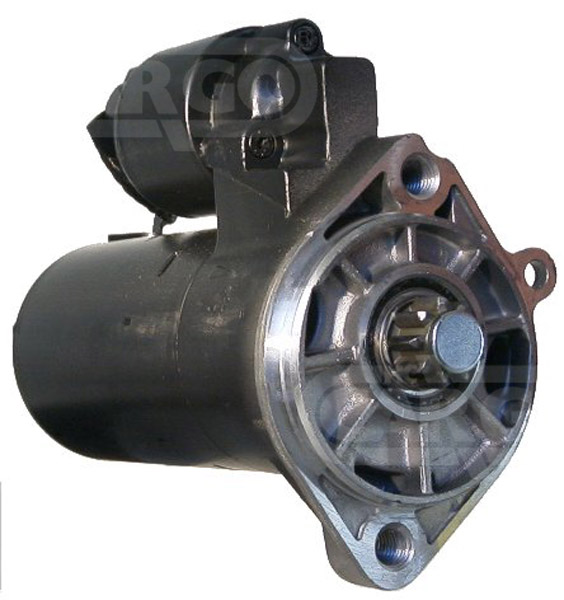

112014 - Starter (112014)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 12, kW 2.0, Mount. flange 82.50, Drive dist. 21.00, Dist./back 211.25, Dist./front 24.50, No. of teeth 9, B+ M8, Gear type GR, Dist. 50.70, Dist. 2 90.50, Dist. 3 104.80,
Rotation: CR, No./mount. holes 2 (2), Clutch type Dry,
Drive Type: Steel,
Total Length: 237.00, Oil sealed No, Waterproof No, Source Prestolite

Electrical specifications (Starter)
Voltage 12
kW 2.0

Physical specifications (Starter)
A Mount. flange 82.50
B Drive dist. 21.00
F Dist./back 211.25
G Dist./front 24.50
H No. of teeth 9
I B+ M8
N Gear type GR
O Dist. 50.70
O Dist. 2 90.50
O Dist. 3 104.80
P Rotation CR
R Total length 237.00
Source Prestolite

Further information (Starter)
No./mount. holes 2 (2)
Clutch type Dry
Drive type Steel
Oil sealed No
Waterproof No

Replacing
0001125503 BOSCH
0001125504 BOSCH
0001125513 BOSCH
0001125514 BOSCH
069911023h VOLKSWAGEN
069911023K VOLKSWAGEN

UNISTART Price: £166.05

Sorry, this item is out of stock.

The 112014 - Starter is shown in: Brands > 5 Star , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
VW, Passenger Car EU LT 2.5 Diesel 1996 09 - 55 75 2461 5 SDi AGX Van LT 40-55
VW, Passenger Car EU LT 2.5 Diesel 1996 09 - 55 75 2461 5 SDi AGX Platform / Chassis LT 28-35
VW, Passenger Car EU LT 2.5 Diesel 1996 09 - 55 75 2461 5 SDi AGX Platform / Chassis LT 40-55
VW, Passenger Car EU LT 2.5 Diesel 1996 09 - 55 75 2461 5 SDi AGX Van LT 28-35
VW, Passenger Car EU LT 2.5 Diesel 1996 05 2001 04 55 75 2461 5 SDi AGX Bus LT 28-35
VW, Passenger Car EU LT 2.5 Diesel 1996 09 - 55 75 2461 5 SDi AGX Van LT 40-55
VW, Passenger Car EU LT 2.5 Diesel 1996 09 - 55 75 2461 5 SDi AGX Platform / Chassis LT 28-35
VW, Passenger Car EU LT 2.5 Diesel 1996 09 - 55 75 2461 5 SDi AGX Platform / Chassis LT 40-55
VW, Passenger Car EU LT 2.5 Diesel 1996 09 - 55 75 2461 5 SDi AGX Van LT 28-35
VW, Passenger Car EU LT 2.5 Diesel 1996 05 2001 04 55 75 2461 5 SDi AGX Bus LT 28-35
VW, Passenger Car EU LT 2.5 Diesel 1996 09 - 55 75 2461 5 SDi AGX Van LT 40-55
VW, Passenger Car EU LT 2.5 Diesel 1996 09 - 55 75 2461 5 SDi AGX Platform / Chassis LT 28-35
VW, Passenger Car EU LT 2.5 Diesel 1996 09 - 55 75 2461 5 SDi AGX Van LT 28-35
VW, Passenger Car EU LT 2.5 Diesel 1996 09 - 55 75 2461 5 SDi AGX Van LT 40-55
VW, Passenger Car EU LT 2.5 Diesel 1996 09 - 55 75 2461 5 SDi AGX Platform / Chassis LT 28-35
VW, Passenger Car EU LT 2.5 Diesel 1996 09 - 55 75 2461 5 SDi AGX Platform / Chassis LT 40-55
VW, Passenger Car EU LT 2.5 Diesel 1996 09 - 55 75 2461 5 SDi AGX Van LT 28-35
VW, Passenger Car EU LT 2.5 Diesel 1996 05 2001 04 55 75 2461 5 SDi AGX Bus LT 28-35
