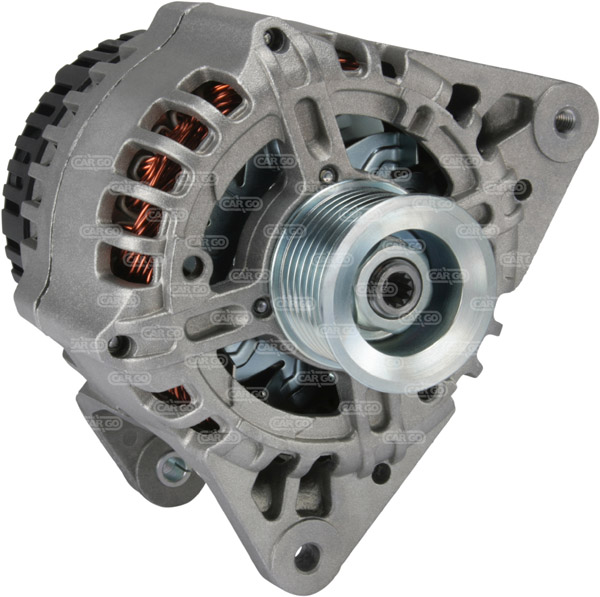

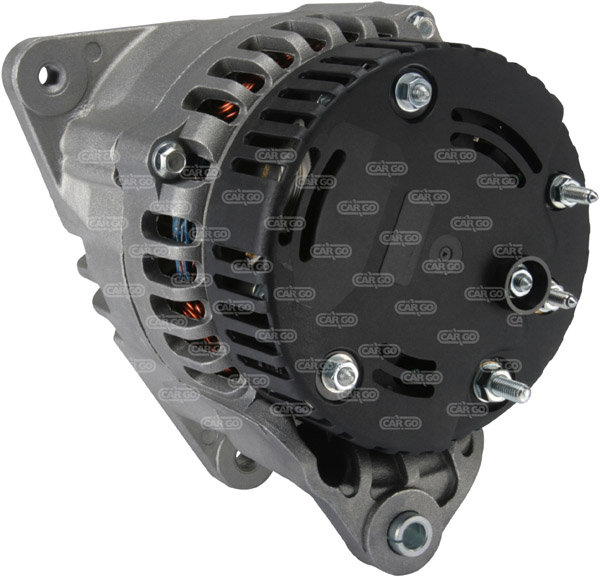

112021 - Alternator (112021)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 100, Terminal W,
Bracket Hole: 8.00, Belt. adj. bracket hole M8,
Width/Holder Arm: 13.50, Belt. adj. brackethole pos. 10,
Mount. Bracket Dist.: 83.50,
Pulley Dia.: 49.00,
Pulley Dist.: 31.00,
Grooves/Pulley: 7,
Radius: 87.00,
Radius: 87.00,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL70,
Blower: IF, Pulley SP,
Total Length: 194.00, Source Mahle Letrika
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 100 | |||
| Terminal | W | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 8.00 | |||
| G | Belt. adj. bracket hole M8 | |||
| B | Width/holder arm 13.50 | |||
| E | Belt. adj. brackethole pos. 10 | |||
| C | Mount. bracket dist. 83.50 | |||
| H | Pulley dia. 49.00 | |||
| A | Pulley dist. 31.00 | |||
| i | Grooves/pulley 7 | |||
| j | Radius 87.00 | |||
| j | Radius 87.00 | |||
| k | B+ position M6 | |||
| n | Rotation CR | |||
| o | Regulator plug PL70 | |||
| R | Total length 194.00 | |||
| Source | Mahle Letrika | |||
Further information (Alternator) | ||||
| Blower | IF | |||
| Pulley | SP | |||
Replacing | ||||
| 11.203.205 | ISKRA | |||
| 111283 | CARGO | |||
| 54022459 | LUCAS | |||
| 54022498 | LUCAS | |||
| 63321358 | MAGNETI MARELLI | |||
| 63340004 | MAGNETI MARELLI | |||
| 63341321 | MAGNETI MARELLI | |||
| 63341358 | MAGNETI MARELLI | |||
| aak5396 | ISKRA | |||
| AMR4248 | ROVER GROUP | |||
UNISTART Price: £246.53
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Land Rover, Passenger Car EU | Range Rover | 2.5 | Diesel | 1994 07 | 2002 03 | 100 | 136 | 2497 | 6 | Diesel | 256T | Range Rover | ||
| Land Rover, Passenger Car EU | Discovery | 2.5 | Diesel | 1989 10 | 1998 10 | 83 | 113 | 2496 | 4 | TDi | 12L | Discovery | ||
| Land Rover, Passenger Car EU | Range Rover | 2.5 | Diesel | 1994 08 | 2002 03 | 83 | 113 | 2496 | 4 | Diesel | 14L | Range Rover | ||
| Land Rover, Passenger Car EU | Range Rover | 2.5 | Diesel | 1994 07 | 2002 03 | 100 | 136 | 2497 | 6 | Diesel | 256T | Range Rover | ||
| Land Rover, Passenger Car EU | Discovery | 2.5 | Diesel | 1989 10 | 1998 10 | 83 | 113 | 2496 | 4 | TDi | 12L | Discovery | ||
| Land Rover, Passenger Car EU | Range Rover | 2.5 | Diesel | 1994 08 | 2002 03 | 83 | 113 | 2496 | 4 | Diesel | 14L | Range Rover | ||
| Land Rover, Passenger Car EU | Range Rover | 2.5 | Diesel | 1994 07 | 2002 03 | 100 | 136 | 2497 | 6 | Diesel | 256T | Range Rover | ||
| Land Rover, Passenger Car EU | Discovery | 2.5 | Diesel | 1989 10 | 1998 10 | 83 | 113 | 2496 | 4 | TDi | 12L | Discovery | ||
| Land Rover, Passenger Car EU | Range Rover | 2.5 | Diesel | 1994 08 | 2002 03 | 83 | 113 | 2496 | 4 | Diesel | 14L | Range Rover |
