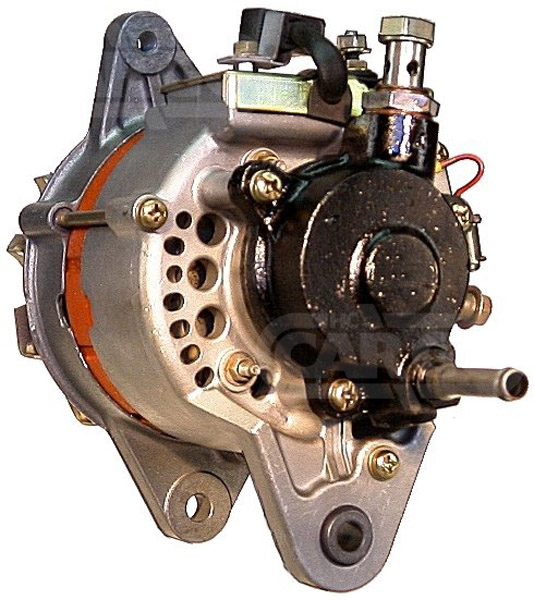

112054 - Alternator (112054)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 45,
Bracket Hole: 10.00, Belt. adj. bracket hole M8,
Width/Holder Arm: 14.50, Belt. adj. brackethole pos. 3,
Mount. Bracket Dist.: 97.00,
Pulley Dia.: 79.50,
Pulley Dist.: 52.70,
Grooves/Pulley: 2,
Radius: 89.00,
Radius: 92.25,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL15,
Blower: EF, Pulley DP, Remarks
Regulator Plug: or: HC-CARGO 135662.,
Total Length: 271.50

Electrical specifications (Alternator)
Voltage 14
Amp 45

Physical specifications (Alternator)
D Bracket hole 10.00
G Belt. adj. bracket hole M8
B Width/holder arm 14.50
E Belt. adj. brackethole pos. 3
C Mount. bracket dist. 97.00
H Pulley dia. 79.50
A Pulley dist. 52.70
i Grooves/pulley 2
j Radius 89.00
j Radius 92.25
k B+ position M6
n Rotation CR
o Regulator plug PL15
R Total length 271.50

Further information (Alternator)
Blower EF
Pulley DP
Remarks Regulator: HC-CARGO 135662.

Replacing
100210-3660 DENSO
100210-3760 DENSO
100210-3840 DENSO
121000-8230 DENSO
27020-54383 TOYOTA
27030-54251 TOYOTA
27030-54252 TOYOTA
27030-54253 TOYOTA

UNISTART Price: £349.21

Sorry, this item is out of stock.

The 112054 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Toyota, Passenger Car EU Hilux 2.4 Diesel 1988 08 2005 07 61 83 2446 4 Diesel 2L Pick Up Hilux
Toyota, Passenger Car EU Dyna 150 2.4 Diesel 1995 05 2001 07 54 73 2446 4 Diesel 2L Platform / Chassis Dyna 150
Toyota, Passenger Car EU Dyna 2.4 Diesel 1995 05 2001 08 55 75 2445 4 Diesel 2L Dyna 100
Toyota, Passenger Car EU Dyna 2.4 Diesel 1987 08 2001 07 61 83 2446 4 Diesel 2L Bus Dyna
Toyota, Passenger Car EU Hilux 2.4 Diesel 1988 08 2005 07 61 83 2446 4 Diesel 2L Pick Up 4WD Hilux
Toyota, Passenger Car EU Dyna 2.4 Diesel 1987 08 1995 04 61 83 2446 4 Diesel 2L Platform / Chassis Dyna
Toyota, Passenger Car EU Hilux 2.4 Diesel 1988 08 2005 07 61 83 2446 4 Diesel 2L Pick Up Hilux
Toyota, Passenger Car EU Dyna 150 2.4 Diesel 1995 05 2001 07 54 73 2446 4 Diesel 2L Platform / Chassis Dyna 150
Toyota, Passenger Car EU Dyna 2.4 Diesel 1995 05 2001 08 55 75 2445 4 Diesel 2L Dyna 100
Toyota, Passenger Car EU Dyna 2.4 Diesel 1987 08 2001 07 61 83 2446 4 Diesel 2L Bus Dyna
Toyota, Passenger Car EU Hilux 2.4 Diesel 1988 08 2005 07 61 83 2446 4 Diesel 2L Pick Up 4WD Hilux
Toyota, Passenger Car EU Dyna 2.4 Diesel 1987 08 1995 04 61 83 2446 4 Diesel 2L Platform / Chassis Dyna
Toyota, Passenger Car EU Dyna 150 2.4 Diesel 1995 05 2001 07 54 73 2446 4 Diesel 2L Platform / Chassis Dyna 150
Toyota, Passenger Car EU Dyna 2.4 Diesel 1987 08 2001 07 61 83 2446 4 Diesel 2L Bus Dyna
Toyota, Passenger Car EU Dyna 2.4 Diesel 1987 08 1995 04 61 83 2446 4 Diesel 2L Platform / Chassis Dyna
