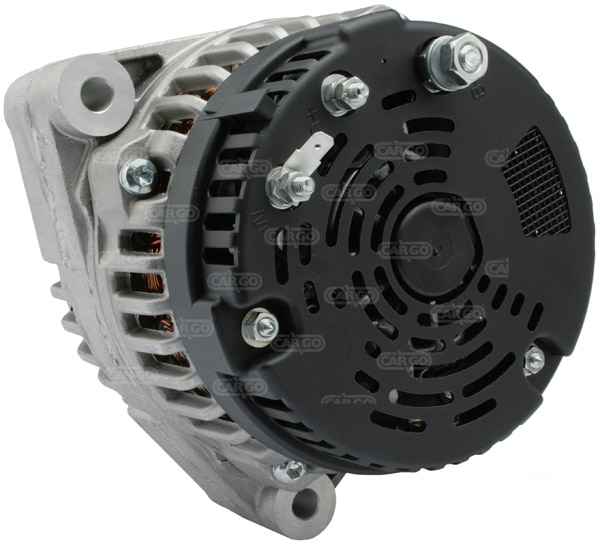

112062 - Alternator (112062)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 115,
Bracket Hole: 10.00, Belt. adj. bracket hole 10.00,
Width/Holder Arm: 56.00, Belt. adj. brackethole pos. 10,
Radius: 90.40,
Radius: 89.65,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: IF, Pulley w/o, Remarks SP/FW 235718 can be used.,
Total Length: 177.00, Source Bosch
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 115 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 10.00 | |||
| G | Belt. adj. bracket hole 10.00 | |||
| B | Width/holder arm 56.00 | |||
| E | Belt. adj. brackethole pos. 10 | |||
| j | Radius 90.40 | |||
| j | Radius 89.65 | |||
| k | B+ position M8 | |||
| n | Rotation CR | |||
| o | Regulator plug PL_NA | |||
| R | Total length 177.00 | |||
| Source | Bosch | |||
Further information (Alternator) | ||||
| Blower | IF | |||
| Pulley | w/o | |||
| Remarks | SP/FW 235718 can be used. | |||
Replacing | ||||
| 0123512500 | BOSCH | |||
| 0124515126 | BOSCH | |||
| 11.203.204 | ISKRA | |||
| aan5156 | ISKRA | |||
| AL111676 | JOHN DEERE | |||
| al114093 | JOHN DEERE | |||
| AL166646 | JOHN DEERE | |||
UNISTART Price: £182.81
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| John Deere, Agricultural | 6000 Series | Diesel | 1994 01 | - | 0 | 0 | 0 | 6910 | ||||||
| John Deere, Agricultural | 6000 Series | Diesel | 1994 01 | - | 0 | 0 | 6788 | 6 | 6920 | |||||
| John Deere, Agricultural | 6000 Series | 4.5 | Diesel | 2002 01 | - | 0 | 0 | 4530 | 4 | 6420 | ||||
| John Deere, Agricultural | 6000 Series | Diesel | 1994 01 | - | 0 | 0 | 6788 | 6 | 6620 | |||||
| John Deere, Agricultural | 6000 Series | 3.9 | Diesel | 2002 01 | - | 0 | 0 | 4530 | 4 | 6320 | ||||
| John Deere, Agricultural | 6000 Series | 4.5 | Diesel | 1994 01 | - | 0 | 0 | 4530 | 4 | 6420 S | ||||
| John Deere, Agricultural | 6000 Series | 4.5 | Diesel | 1997 01 | - | 0 | 0 | 0 | 0 | 6110 | ||||
| John Deere, Agricultural | 6000 Series | Diesel | 1994 01 | - | 0 | 0 | 0 | 6910 | ||||||
| John Deere, Agricultural | 6000 Series | Diesel | 1994 01 | - | 0 | 0 | 6788 | 6 | 6920 | |||||
| John Deere, Agricultural | 6000 Series | 4.5 | Diesel | 2002 01 | - | 0 | 0 | 4530 | 4 | 6420 | ||||
| John Deere, Agricultural | 6000 Series | Diesel | 1994 01 | - | 0 | 0 | 6788 | 6 | 6620 | |||||
| John Deere, Agricultural | 6000 Series | 3.9 | Diesel | 2002 01 | - | 0 | 0 | 4530 | 4 | 6320 | ||||
| John Deere, Agricultural | 6000 Series | 4.5 | Diesel | 1994 01 | - | 0 | 0 | 4530 | 4 | 6420 S | ||||
| John Deere, Agricultural | 6000 Series | 4.5 | Diesel | 1997 01 | - | 0 | 0 | 0 | 0 | 6110 | ||||
| John Deere, Agricultural | 6000 Series | 4.5 | Diesel | 1997 01 | - | 0 | 0 | 0 | 0 | 6110 | ||||
| John Deere, Agricultural | 6000 Series | Diesel | 1994 01 | - | 0 | 0 | 0 | 6910 | ||||||
| John Deere, Agricultural | 6000 Series | Diesel | 1994 01 | - | 0 | 0 | 6788 | 6 | 6920 | |||||
| John Deere, Agricultural | 6000 Series | 4.5 | Diesel | 2002 01 | - | 0 | 0 | 4530 | 4 | 6420 | ||||
| John Deere, Agricultural | 6000 Series | Diesel | 1994 01 | - | 0 | 0 | 6788 | 6 | 6620 | |||||
| John Deere, Agricultural | 6000 Series | 3.9 | Diesel | 2002 01 | - | 0 | 0 | 4530 | 4 | 6320 | ||||
| John Deere, Agricultural | 6000 Series | 4.5 | Diesel | 1994 01 | - | 0 | 0 | 4530 | 4 | 6420 S | ||||
| John Deere, Agricultural | 6000 Series | 4.5 | Diesel | 1997 01 | - | 0 | 0 | 0 | 0 | 6110 |
