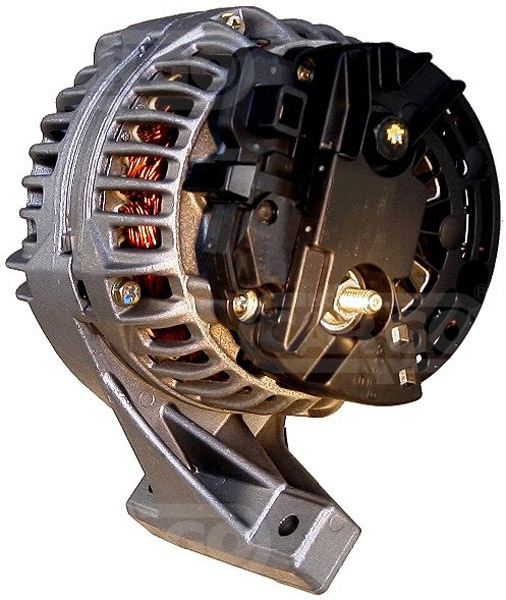

112072 - Alternator (112072)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 120,
Bracket Hole: 9.00, Belt. adj. bracket hole M8,
Width/Holder Arm: 20.20, Belt. adj. brackethole pos. 45,
Mount. Bracket Dist.: 82.00,
Pulley Dia.: 56.00,
Pulley Dist.: 44.50,
Grooves/Pulley: 6,
Radius: 86.00,
B+ Position: M8,
Rotation: ACR,
Regulator Plug: or plug PL149,
Bracket Hole: 9.00,
Blower: IF, Pulley SP/FW,
Total Length: 194.00, Terminal type L

Electrical specifications (Alternator)
Voltage 14
Amp 120

Physical specifications (Alternator)
D Bracket hole 9.00
G Belt. adj. bracket hole M8
B Width/holder arm 20.20
E Belt. adj. brackethole pos. 45
C Mount. bracket dist. 82.00
H Pulley dia. 56.00
A Pulley dist. 44.50
i Grooves/pulley 6
j Radius 86.00
k B+ position M8
n Rotation ACR
o Regulator plug PL149
D Bracket hole 9.00
R Total length 194.00
Terminal type L

Further information (Alternator)
Blower IF
Pulley SP/FW

Replacing
0124515019 BOSCH
0124515054 BOSCH
102211-0500 DENSO
8251071 VOLVO
8251655 VOLVO
8601699 VOLVO
8601841 VOLVO
8602276 VOLVO
9459077 VOLVO
9459092 VOLVO

UNISTART Price: £151.22

Sorry, this item is out of stock.

The 112072 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Volvo, Passenger Car EU S40 2 Gasoline 1995 07 2003 12 100 136 1948 4 16V B4204S2 S40
Volvo, Passenger Car EU S70 2.4 Gasoline 1997 01 2000 11 125 170 2435 5 B5244S S70
Volvo, Passenger Car EU S70 2.3 Gasoline 1997 01 2000 11 176 239 2319 5 B5234T3 T5 S70
Volvo, Passenger Car EU V70 2.4 Gasoline 1997 01 2000 03 142 193 2435 5 Turbo B5254T Estate V70
Volvo, Passenger Car EU V70 2.4 Gasoline 1997 01 2000 05 142 193 2435 5 Turbo B5254T Estate AWD V70
Volvo, Passenger Car EU V70 2.4 Gasoline 1997 01 2000 05 142 193 2435 5 Turbo B5244T Estate AWD V70
Volvo, Passenger Car EU S70 2 Gasoline 1997 01 2000 11 105 143 1984 5 B5204F S70
Volvo, Passenger Car EU V70 2 Gasoline 1997 01 2000 03 105 143 1984 5 B5204F Estate V70
Volvo, Passenger Car EU V70 2.3 Gasoline 1997 01 2000 03 184 250 2319 5 B5234FT Estate V70
Volvo, Passenger Car EU S70 2 Gasoline 1997 01 2000 11 132 180 1984 5 20V B5204T2 S70
Volvo, Passenger Car EU C70 2.3 Gasoline 1997 03 2002 09 176 240 2319 5 B5234T3 Coupe T5 C70
Volvo, Passenger Car EU C70 2 Gasoline 1998 03 2005 10 166 226 1984 5 Turbo B5204T3 Convertible C70
Volvo, Passenger Car EU S70 2.4 Gasoline 1998 06 2000 11 121 165 2435 5 B5254S S70
Volvo, Passenger Car EU S80 2.4 Gasoline 2000 06 2006 07 147 200 2435 5 Turbo B5244T3 S80
Volvo, Passenger Car EU S80 3 Gasoline 2001 06 2006 07 200 272 2922 6 B6294T T6 S80
Volvo, Passenger Car EU S40 2 Gasoline 2001 06 2003 12 120 163 1948 4 Turbo B4204T3 S40
Volvo, Passenger Car EU V70 2.3 Gasoline 2000 03 - 184 250 2319 5 B5234T3 Estate T5 V70
Volvo, Passenger Car EU V70 2.4 Gasoline 2000 03 - 147 200 2435 5 Turbo B5244T3 Estate V70
Volvo, Passenger Car EU S60 2.4 Bi-Fuel 2002 06 2010 04 103 140 2435 5 B5244SG2 LPG S60
Volvo, Passenger Car EU V70 2.5 Gasoline 2004 04 - 154 209 2521 5 Turbo B5254T2 Estate V70
Volvo, Passenger Car EU V70 2.4 Gasoline 1997 01 2000 05 125 170 2435 5 B5244S Estate V70
Volvo, Passenger Car EU V70 2.4 Gasoline 1997 01 2000 03 142 193 2435 5 Turbo B5244T Estate V70
Volvo, Passenger Car EU V70 2.3 Gasoline 1997 01 2000 03 176 239 2319 5 B5234T3 Estate T5 V70
Volvo, Passenger Car EU S70 2 Gasoline 1997 01 2000 11 93 126 1984 5 B5202FS S70
Volvo, Passenger Car EU V70 2 Gasoline 1997 01 2000 03 166 226 1984 5 Turbo B5204T3 Estate AWD V70
Volvo, Passenger Car EU C70 2 Gasoline 1997 03 2002 09 132 180 1984 5 20V B5204T2 Coupe C70
Volvo, Passenger Car EU C70 2.5 Gasoline 1998 03 2005 10 142 193 2435 5 Turbo B5244T Convertible C70
Volvo, Passenger Car EU S70 2.4 Gasoline 1998 10 2000 11 106 144 2435 5 GB5252S S70
Volvo, Passenger Car EU V70 2.4 Gasoline 1998 06 2000 03 121 165 2435 5 B5254S Estate V70
Volvo, Passenger Car EU S60 2.4 Gasoline 2000 11 - 103 140 2435 5 B5244S2 S60
Volvo, Passenger Car EU V70 2.4 Diesel 2001 09 - 103 140 2435 5 BiFuel B5244SG2 Estate V70
Volvo, Passenger Car EU V70 2.4 Gasoline 2000 03 - 103 140 2435 5 B5244S2 Estate V70
Volvo, Passenger Car EU S60 2.4 Gasoline/gas 2002 06 - 103 140 2435 5 BiFuel B5244SG S60
Volvo, Passenger Car EU S60 2.5 Gasoline 2003 03 - 221 300 2521 5 Turbo B5254T4 AWD S60 R
Volvo, Passenger Car EU V70 2.4 Bi-Fuel 2001 09 2007 08 103 140 2435 5 B5244SG Estate LPG V70
Volvo, Passenger Car EU S80 2.4 Bi-Fuel 2001 09 2006 07 103 140 2435 5 B5244SG LPG S80
Volvo, Passenger Car EU S70 2.4 Gasoline 1997 01 2000 11 142 193 2435 5 Turbo B5244T S70
Volvo, Passenger Car EU S70 2 Gasoline 1997 01 2000 11 155 210 1984 5 Turbo B5204T S70
Volvo, Passenger Car EU S70 2.3 Gasoline 1997 01 2000 11 184 250 2319 5 Turbo B5234FT S70
Volvo, Passenger Car EU C70 2 Gasoline 1997 03 2002 09 166 226 1984 5 Turbo B5204T3 Coupe C70
Volvo, Passenger Car EU S80 2.4 Gasoline 1999 01 2006 07 103 140 2435 5 B5244S2 S80
Volvo, Passenger Car EU C70 2.3 Gasoline 1998 03 2005 10 176 239 2319 5 B5234T3 Convertible T5 C70
Volvo, Passenger Car EU C70 2.5 Gasoline 1999 03 2002 09 121 165 2435 5 B5244S Coupe C70
Volvo, Passenger Car EU V40 2 Gasoline 1997 10 2000 07 118 160 1948 4 Turbo 16V B4204T Estate V40
Volvo, Passenger Car EU V70 2.3 Gasoline 1997 04 2000 03 184 250 2319 5 Turbo B5234FT Estate AWD V70
Volvo, Passenger Car EU XC 2.4 Gasoline 2000 03 2002 09 147 200 2435 5 Turbo B5244T3 SUV AWD XC70
Volvo, Passenger Car EU V70 2.3 Gasoline 2000 03 - 184 250 2319 5 B5234T4 Estate T5 V70
Volvo, Passenger Car EU V70 2.4 Gasoline 2000 03 - 125 170 2435 5 B5244S Estate V70
Volvo, Passenger Car EU C70 2 Gasoline 2000 03 2005 10 120 163 1984 5 Turbo B5204T4 Convertible C70
Volvo, Passenger Car EU V70 2.3 Gasoline 2000 10 2004 09 195 265 2319 5 B5234T7 Estate V70
Volvo, Passenger Car EU S70 2.4 Gasoline 1997 01 2000 11 142 193 2435 5 Turbo B5254T S70
Volvo, Passenger Car EU C70 2.5 Gasoline 1998 03 2005 10 142 193 2435 5 Turbo B5254T Convertible C70
Volvo, Passenger Car EU C70 2.5 Gasoline 1999 11 2002 09 125 170 2435 5 B5254S Coupe C70
Volvo, Passenger Car EU S40 2 Gasoline 2000 07 2001 06 121 165 1948 4 Turbo B4204T2 S40
Volvo, Passenger Car EU V40 2 Gasoline 2000 07 2004 06 147 200 1948 4 Turbo B4204T5 Estate T4 V40
Volvo, Passenger Car EU V40 2 Gasoline 2000 07 2004 06 121 165 1948 4 Turbo B4204T2 Estate V40
Volvo, Passenger Car EU S60 2.4 Gasoline 2000 11 - 147 200 2435 5 Turbo B5244T3 S60
Volvo, Passenger Car EU V70 2.4 Gasoline 1999 08 2000 05 103 140 2435 5 GB5244SG2 Estate V70
Volvo, Passenger Car EU S70 2.4 Gasoline 1999 08 2000 11 103 140 2435 5 B5244S2 S70
Volvo, Passenger Car EU C70 2.4 Gasoline 2002 07 2005 10 147 200 2435 5 Turbo B5244T7 Convertible C70
Volvo, Passenger Car EU S60 2 Gasoline 2001 09 - 132 180 1984 5 Turbo B5204T5 S60
Volvo, Passenger Car EU S80 3 Gasoline 2001 06 2006 07 144 196 2922 6 B6294S2 S80
Volvo, Passenger Car EU V70 2.4 Gasoline 2001 09 - 147 200 2435 5 Turbo B5244T3 Estate AWD V70
Volvo, Passenger Car EU C70 2 Gasoline 2000 03 2002 09 120 163 1984 5 Turbo B5204T4 Coupe C70
Volvo, Passenger Car EU S60 2.4 Gasoline 2001 11 - 147 200 2435 5 Turbo B5244T3 AWD S60
Volvo, Passenger Car EU V40 2 Gasoline 1995 07 2004 06 100 136 1948 4 16V B4204S2 Estate V40
Volvo, Passenger Car EU S70 2 Gasoline 1997 01 2000 11 93 126 1984 5 B5202S S70
Volvo, Passenger Car EU V70 2 Gasoline 1997 01 2000 03 166 226 1984 5 Turbo B5204T3 Estate V70
Volvo, Passenger Car EU C70 2.5 Gasoline 1997 03 2002 09 142 193 2435 5 Turbo B5254T Coupe C70
Volvo, Passenger Car EU C70 2.5 Gasoline 1997 03 2002 09 142 193 2435 5 Turbo B5244T Coupe C70
Volvo, Passenger Car EU S70 2.4 Gasoline 1997 01 2000 11 106 144 2435 5 B5252FS S70
Volvo, Passenger Car EU V70 2 Gasoline 1997 01 2000 03 93 126 1984 5 B5202S Estate V70
Volvo, Passenger Car EU V70 2.4 Gasoline 1997 01 2000 03 106 144 2435 5 B5252FS Estate V70
Volvo, Passenger Car EU V70 2 Gasoline 1997 01 2000 03 155 211 1984 5 Turbo B5204T Estate V70
Volvo, Passenger Car EU C70 2 Gasoline 1998 03 2005 10 132 180 1984 5 20V B5204T2 Convertible C70
Volvo, Passenger Car EU V70 2.3 Gasoline 1997 01 2000 03 176 239 2319 5 B5234T3 Estate T5 AWD V70
Volvo, Passenger Car EU V70 2.4 Diesel 1998 10 1999 08 106 144 2435 5 GB5252S Estate V70
Volvo, Passenger Car EU C70 2.5 Gasoline 1998 06 2005 10 125 170 2435 5 B5254S Convertible C70
Volvo, Passenger Car EU S80 2.4 Gasoline 1999 01 2006 07 125 170 2435 5 B5244S S80
Volvo, Passenger Car EU V70 2.4 Diesel 1999 08 2000 03 103 140 2435 5 BiFuel B5244SG Estate V70
Volvo, Passenger Car EU V70 2.4 Gasoline 2004 04 - 191 260 2401 5 Turbo B5244T5 Estate T5 V70
Volvo, Passenger Car EU V70 2 Gasoline 1997 01 2000 03 120 163 1984 5 B5204T4 Estate V70
Volvo, Passenger Car EU S70 2 Gasoline 1997 01 2000 11 120 163 1984 5 B5204T4 S70
Volvo, Passenger Car EU C70 2.3 Gasoline 2002 07 2005 10 180 245 2319 5 B5234T9 Convertible T5 C70
Volvo, Passenger Car EU V70 2.5 Gasoline 2003 03 - 221 300 2521 5 Turbo B5254T4 Estate R AWD V70
Volvo, Passenger Car EU V70 2.5 Gasoline 1999 03 2000 03 195 265 2435 5 B5244T2 Estate AWD V70
Volvo, Passenger Car EU V70 2.5 Gasoline 2002 09 2004 12 155 211 2521 5 B5254T2 Estate AWD V70
Volvo, Passenger cars US V70 2.4 Gasoline 2003 01 - 0 0 2435 L5 Turbo B5244T3 V70
Volvo, Passenger cars US C70 2.4 Gasoline 2003 01 - 0 0 2435 L5 Turbo B5244T3 C70
Volvo, Passenger cars US V70 2.4 Gasoline 2000 01 - 0 0 2435 L5 Turbo B5254T X/C AWD V70
Volvo, Passenger cars US V70 2.4 Gasoline 1999 01 - 0 0 2319 L5 Turbo B5234T3 V70
Volvo, Passenger cars US V70 2.3 Gasoline 2001 01 - 0 0 2319 L5 Turbo B5234T3 V70
Volvo, Passenger cars US S70 2.4 Gasoline 1999 01 2000 01 0 0 2435 L5 Turbo S70
Volvo, Passenger cars US V70 2.4 Gasoline 1999 01 2000 01 0 0 2435 L5 B5254FS V70
Volvo, Passenger cars US C70 2.4 Gasoline 2004 01 - 0 0 2435 L5 Turbo B5244T3 C70
Volvo, Passenger cars US S60 2.3 Gasoline 2005 01 - 0 0 2319 L5 Turbo B5234T3 T5 S60
Volvo, Passenger cars US V70 2.4 Gasoline 2000 01 - 0 0 2435 L5 Turbo B5244T2 V70
Volvo, Passenger cars US C70 2.4 Gasoline 2002 01 2002 01 0 0 2435 L5 Turbo B5244T C70
Volvo, Passenger cars US V70 2.4 Gasoline 2002 01 2002 01 0 0 2435 L5 Turbo B5244T3 X/C V70
Volvo, Passenger cars US V70 2.4 Gasoline 2001 01 - 0 0 2435 L5 B5244S V70
Volvo, Passenger cars US V70 2.4 Gasoline 2001 01 - 0 0 2435 L5 Turbo B5244T3 V70
Volvo, Passenger cars US V70 2.4 Gasoline 2002 01 2003 01 0 0 2435 L5 B5244S V70
Volvo, Passenger cars US V70 2.3 Gasoline 1999 01 2001 01 0 0 2319 L5 Turbo B5234FT V70
Volvo, Passenger cars US S60 2.3 Gasoline 2004 01 - 0 0 2319 L5 Turbo B5234T3 T5 S60
Volvo, Passenger cars US S70 2.4 Gasoline 1999 01 2000 01 0 0 2435 L5 B5254FS S70
Volvo, Passenger cars US S60 2.3 Gasoline 2001 01 2001 01 0 0 2319 L5 Turbo B5234FT S60
Volvo, Passenger cars US V70 2.3 Gasoline 2005 01 - 0 0 2319 L5 Turbo B5234T3 T5 V70
Volvo, Passenger cars US S60 2.4 Gasoline 2001 01 - 0 0 2435 L5 Turbo B5244T3 S60
Volvo, Passenger cars US C70 2.3 Gasoline 2000 01 - 0 0 2319 L5 Turbo B5234T3 C70
Volvo, Passenger cars US C70 2.3 Gasoline 2001 01 - 0 0 2319 L5 Turbo B5234T3 C70
Volvo, Passenger cars US V70 2.4 Gasoline 1999 01 - 0 0 2435 L5 Turbo B5254T X/C AWD V70
Volvo, Passenger cars US V70 2.4 Gasoline 2001 01 - 0 0 2435 L5 Turbo B5244T3 X/C AWD V70
Volvo, Passenger cars US C70 2.3 Gasoline 2002 01 2003 01 0 0 2319 L5 Turbo B5234T3 C70
Volvo, Passenger cars US V70 2.3 Gasoline 2002 01 2003 01 0 0 2319 L5 Turbo B5234T3 T5 V70
Volvo, Passenger cars US S60 2.5 Gasoline 2003 09 2010 04 224 300 2521 5 B5254T4 AWD S60
Volvo, Passenger cars US S60 2.3 Gasoline 2002 01 2003 01 0 0 2319 L5 Turbo B5234T3 T5 S60
Volvo, Passenger cars US V70 2.4 Gasoline 2004 01 - 0 0 2435 L5 B5244S V70
Volvo, Passenger cars US V70 2.4 Gasoline 2004 01 - 0 0 2435 L5 Turbo B5244T3 V70
Volvo, Passenger cars US S60 2.4 Gasoline 2001 01 - 0 0 2435 L5 B5244S S60
Volvo, Passenger cars US V70 2.4 Gasoline 1999 01 - 0 0 2435 L5 Turbo B5254T V70
Volvo, Passenger cars US V70 2.4 Gasoline 2000 01 - 0 0 2435 L5 Turbo B5254T V70
Volvo, Passenger cars US V70 2.4 Gasoline 2002 01 2002 01 0 0 2435 L5 Turbo B5244T3 V70
Volvo, Passenger cars AO V70 2.4 Gasoline 2000 03 2003 09 121 165 2435 5 Estate V70
Volvo, Passenger cars AO V70 2.3 Gasoline 2000 10 2004 09 195 265 2319 5 B5234T7 Estate AWD V70
Volvo, Passenger cars AO V70 2.3 Gasoline 2000 10 2004 09 195 265 2319 5 B5234T8 Estate AWD V70
Volvo, Passenger cars AO S80 2.4 Gasoline 2004 06 2006 07 132 179 2435 5 B5244T4 LTP S80
