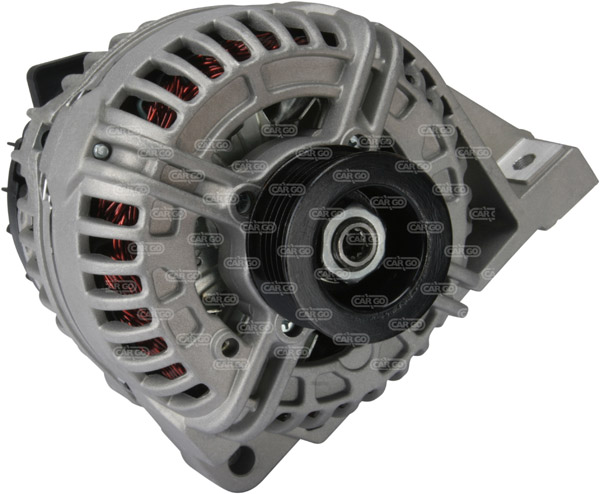

112078 - Alternator (112078)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 120,
Bracket Hole: M8, Belt. adj. bracket hole 8.50, Belt. adj. brackethole pos. 50,
Mount. Bracket Dist.: 82.00,
Pulley Dia.: 55.70,
Pulley Dist.: 44.50,
Grooves/Pulley: 6,
Radius: 87.00,
B+ Position: M8,
Rotation: ACR,
Regulator Plug: or plug PL_NA,
Blower: IF, Pulley SP, Belt. adj. bracket hole 8.50,
Total Length: 194.00

Electrical specifications (Alternator)
Voltage 14
Amp 120

Physical specifications (Alternator)
D Bracket hole M8
G Belt. adj. bracket hole 8.50
E Belt. adj. brackethole pos. 50
C Mount. bracket dist. 82.00
H Pulley dia. 55.70
A Pulley dist. 44.50
i Grooves/pulley 6
j Radius 87.00
k B+ position M8
n Rotation ACR
o Regulator plug PL_NA
G Belt. adj. bracket hole 8.50
R Total length 194.00

Further information (Alternator)
Blower IF
Pulley SP

Replacing
0124515017 BOSCH
0124515018 BOSCH
63304078 MAGNETI MARELLI
8111001 VOLVO
8602277 VOLVO
9442841 VOLVO
9459038 VOLVO

UNISTART Price: £221.91

Sorry, this item is out of stock.

The 112078 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Volvo, Passenger Car EU S80 2.9 Gasoline 1998 05 2006 07 150 204 2922 6 24V B6304S3 S80
Volvo, Passenger Car EU S80 2.4 Gasoline 2000 06 2006 07 147 200 2435 5 Turbo B5244T3 S80
Volvo, Passenger Car EU S80 3 Gasoline 2001 06 2006 07 200 272 2922 6 B6294T T6 S80
Volvo, Passenger Car EU V70 2.3 Gasoline 2000 03 - 184 250 2319 5 B5234T3 Estate T5 V70
Volvo, Passenger Car EU V70 2.4 Gasoline 2000 03 - 147 200 2435 5 Turbo B5244T3 Estate V70
Volvo, Passenger Car EU S80 2.4 Gasoline 2000 04 2003 09 147 200 2435 5 B5244T3 T5 AWD S80
Volvo, Passenger Car EU S60 2.4 Bi-Fuel 2002 06 2010 04 103 140 2435 5 B5244SG2 LPG S60
Volvo, Passenger Car EU V70 2.4 Gasoline 2000 03 - 103 140 2435 5 B5244S2 Estate V70
Volvo, Passenger Car EU S60 2.4 Gasoline 2000 11 - 103 140 2435 5 B5244S2 S60
Volvo, Passenger Car EU S60 2.4 Gasoline/gas 2002 06 - 103 140 2435 5 BiFuel B5244SG S60
Volvo, Passenger Car EU S60 2.5 Gasoline 2003 03 - 221 300 2521 5 Turbo B5254T4 AWD S60 R
Volvo, Passenger Car EU V70 2.4 Bi-Fuel 2001 09 2007 08 103 140 2435 5 B5244SG Estate LPG V70
Volvo, Passenger Car EU S80 2.4 Bi-Fuel 2001 09 2006 07 103 140 2435 5 B5244SG LPG S80
Volvo, Passenger Car EU S80 2.8 Gasoline 1998 05 2006 07 200 272 2783 6 B6284T T6 S80
Volvo, Passenger Car EU S80 2 Gasoline 1998 06 2006 07 166 226 1984 5 Turbo B5204T3 S80
Volvo, Passenger Car EU S80 2.4 Gasoline 1999 01 2006 07 103 140 2435 5 B5244S2 S80
Volvo, Passenger Car EU XC 2.4 Gasoline 2000 03 2002 09 147 200 2435 5 Turbo B5244T3 SUV AWD XC70
Volvo, Passenger Car EU V70 2.3 Gasoline 2000 03 - 184 250 2319 5 B5234T4 Estate T5 V70
Volvo, Passenger Car EU V70 2.4 Gasoline 2000 03 - 125 170 2435 5 B5244S Estate V70
Volvo, Passenger Car EU S60 2.4 Gasoline 2001 11 - 147 200 2435 5 Turbo B5244T3 AWD S60
Volvo, Passenger Car EU S60 2 Gasoline 2001 09 - 132 180 1984 5 Turbo B5204T5 S60
Volvo, Passenger Car EU S80 3 Gasoline 2001 06 2006 07 144 196 2922 6 B6294S2 S80
Volvo, Passenger Car EU V70 2.4 Gasoline 2001 09 - 147 200 2435 5 Turbo B5244T3 Estate AWD V70
Volvo, Passenger Car EU S60 2.4 Gasoline 2000 11 - 147 200 2435 5 Turbo B5244T3 S60
Volvo, Passenger Car EU S80 2.9 Gasoline 1999 03 2006 07 147 200 2922 6 B6294S S80
Volvo, Passenger Car EU S80 2 Gasoline 1998 06 2006 07 120 163 1984 5 B5204T4 S80
Volvo, Passenger Car EU S80 2.4 Gasoline 1999 01 2006 07 125 170 2435 5 B5244S S80
Volvo, Passenger Car EU S60 2.3 Gasoline 2000 11 - 184 250 2319 5 B5234T3 T5 S60
Volvo, Passenger Car EU V70 2.5 Gasoline 2002 09 2004 12 155 211 2521 5 B5254T2 Estate AWD V70
Volvo, Passenger cars US V70 2.4 Gasoline 2003 01 - 0 0 2435 L5 Turbo B5244T3 V70
Volvo, Passenger cars US S80 2.8 Gasoline 1999 01 2003 01 0 0 2798 L6 Turbo B6284T S80
Volvo, Passenger cars US V70 2.4 Gasoline 2002 01 2002 01 0 0 2435 L5 Turbo B5244T3 X/C V70
Volvo, Passenger cars US S60 2.3 Gasoline 2005 01 - 0 0 2319 L5 Turbo B5234T3 T5 S60
Volvo, Passenger cars US S80 2.9 Gasoline 1999 01 - 0 0 2917 L6 B6304S3 S80
Volvo, Passenger cars US S80 2.9 Gasoline 2000 01 - 0 0 2917 L6 B6294S S80
Volvo, Passenger cars US S60 2.3 Gasoline 2004 01 - 0 0 2319 L5 Turbo B5234T3 T5 S60
Volvo, Passenger cars US V70 2.4 Gasoline 2001 01 - 0 0 2435 L5 B5244S V70
Volvo, Passenger cars US V70 2.4 Gasoline 2001 01 - 0 0 2435 L5 Turbo B5244T3 V70
Volvo, Passenger cars US V70 2.4 Gasoline 2002 01 2003 01 0 0 2435 L5 B5244S V70
Volvo, Passenger cars US S60 2.3 Gasoline 2001 01 2001 01 0 0 2319 L5 Turbo B5234FT S60
Volvo, Passenger cars US S60 2.4 Gasoline 2001 01 - 0 0 2435 L5 Turbo B5244T3 S60
Volvo, Passenger cars US V70 2.4 Gasoline 2001 01 - 0 0 2435 L5 Turbo B5244T3 X/C AWD V70
Volvo, Passenger cars US S60 2.5 Gasoline 2003 09 2010 04 224 300 2521 5 B5254T4 AWD S60
Volvo, Passenger cars US S60 2.3 Gasoline 2002 01 2003 01 0 0 2319 L5 Turbo B5234T3 T5 S60
Volvo, Passenger cars US V70 2.4 Gasoline 2002 01 2002 01 0 0 2435 L5 Turbo B5244T3 V70
Volvo, Passenger cars US S60 2.4 Gasoline 2001 01 - 0 0 2435 L5 B5244S S60
Volvo, Passenger cars US S80 2.9 Gasoline 2001 01 - 0 0 2917 L6 B6294S S80
Volvo, Passenger cars US V70 2.4 Gasoline 2004 01 - 0 0 2435 L5 B5244S V70
Volvo, Passenger cars US V70 2.4 Gasoline 2004 01 - 0 0 2435 L5 Turbo B5244T3 V70
Volvo, Passenger cars AO S80 2.4 Gasoline 2004 06 2006 07 132 179 2435 5 B5244T4 LTP S80
