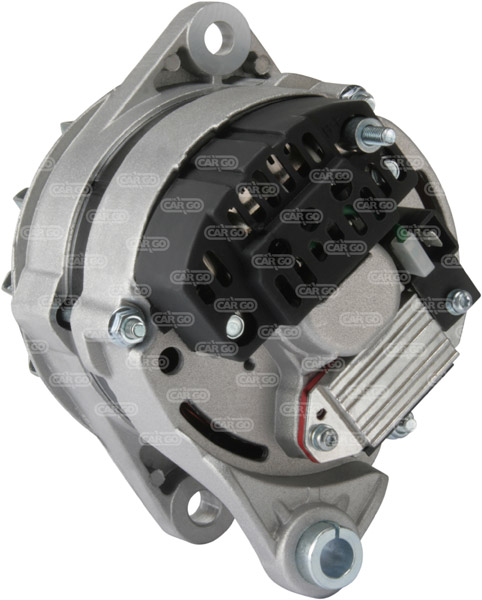

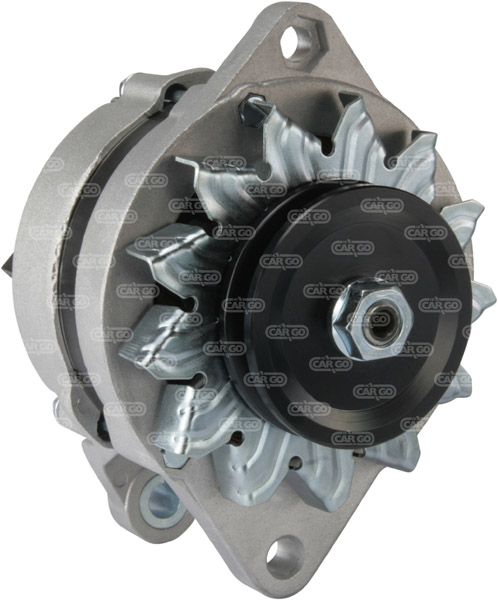

112097 - Alternator (112097)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 28,
Amp: 30,
Bracket Hole: 12.40, Belt. adj. bracket hole 10.60,
Width/Holder Arm: 17.00, Belt. adj. brackethole pos. 60,
Mount. Bracket Dist.: 63.00,
Pulley Dia.: 82.00,
Pulley Dist.: 45.00,
Grooves/Pulley: 1,
Radius: >85,
Radius: 81.00,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: w/o, Pulley P,
Total Length: 174.00
Electrical specifications (Alternator) | ||||
| Voltage | 28 | |||
| Amp | 30 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 12.40 | |||
| G | Belt. adj. bracket hole 10.60 | |||
| B | Width/holder arm 17.00 | |||
| E | Belt. adj. brackethole pos. 60 | |||
| C | Mount. bracket dist. 63.00 | |||
| H | Pulley dia. 82.00 | |||
| A | Pulley dist. 45.00 | |||
| i | Grooves/pulley 1 | |||
| j | Radius >85 | |||
| j | Radius 81.00 | |||
| k | B+ position M6 | |||
| n | Rotation CR | |||
| o | Regulator plug PL_NA | |||
| R | Total length 174.00 | |||
Further information (Alternator) | ||||
| Blower | w/o | |||
| Pulley | P | |||
Replacing | ||||
| 0120488252 | BOSCH | |||
| 0120488253 | BOSCH | |||
| 0120489410 | BOSCH | |||
| 0120489412 | BOSCH | |||
| 0120489414 | BOSCH | |||
| 0120489612 | BOSCH | |||
| 0120489638 | BOSCH | |||
| 0120489639 | BOSCH | |||
| 0120489792 | BOSCH | |||
| 0120489793 | BOSCH | |||
UNISTART Price: £101.88
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1991 01 | - | 152 | 207 | 5861 | 6 | 8060.45.4180TCA | Platform / Chassis | 100 E 21 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1992 01 | 1996 12 | 105 | 143 | 5861 | 6 | 8060.25R.4280LTC | Platform / Chassis | 150 E 15 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1992 01 | - | 130 | 177 | 5861 | 6 | 8060.25V.4000TC | Dump Truck | 150 E 18 | ||
| Iveco, Trucks EU | EuroCargo | 5.8 | Diesel | 1994 01 | - | 130 | 177 | 5861 | 6 | 8060.25VTC | Platform / Chassis | 180 E 18 | ||
| Iveco, Trucks EU | EuroCargo | 5.8 | Diesel | 1994 01 | - | 130 | 177 | 5861 | 6 | 8060.25VTC | Dump Truck | 180 E 18 | ||
| Iveco, Trucks EU | EuroCargo | 5.8 | Diesel | 1994 01 | - | 167 | 227 | 5816 | 6 | 8060.45STCA | Dump Truck | 180 E 23 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1992 01 | - | 167 | 227 | 5861 | 6 | 8060.45S.6800 | Platform / Chassis | 120 E 23 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1994 01 | - | 105 | 143 | 5861 | 6 | 8060.25R.4280LTC | Dump Truck | 130 E 15 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1992 01 | - | 130 | 177 | 5861 | 6 | 8060.25V.4080TC | Dump Truck | 130 E 18 | ||
| Iveco, Trucks EU | EuroCargo | 4 | Diesel | 1991 01 | 1996 12 | 100 | 136 | 3908 | 4 | 8040.45.4000TCA | Dump Truck | 60 E 14 | ||
| Iveco, Trucks EU | 100 | 13.8 | Diesel | 1987 09 | 1999 09 | 224 | 304 | 13798 | 6 | 8210.. | 190-30 N | |||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1991 01 | - | 105 | 143 | 5861 | 6 | 8060.45R.5000 | Platform / Chassis | 100 E 15 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1991 01 | - | 105 | 143 | 5861 | 6 | 8060.45R.5003 | Platform / Chassis | 100 E 15 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1992 01 | - | 130 | 177 | 5861 | 6 | 8060.25V.4080 | Platform / Chassis | 120 E 18 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1992 01 | - | 130 | 177 | 5861 | 6 | 8060.25V.4080TC | Dump Truck | 120 E 18 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1992 01 | - | 130 | 177 | 5861 | 6 | 8060.25V.4080 | Platform / Chassis | 150 E 18 | ||
| Iveco, Trucks EU | EuroCargo | 5.8 | Diesel | 1994 01 | - | 167 | 227 | 5816 | 6 | 8060.45STCA | Platform / Chassis | 170 E 23 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1991 01 | - | 105 | 143 | 5861 | 6 | 8060.25R.4200LTC | Dump Truck | 80 E 15 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1991 01 | - | 152 | 207 | 5861 | 6 | 8060.45.4100TCA | Platform / Chassis | 80 E 21 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1992 01 | - | 167 | 227 | 5861 | 6 | 8060.45S.6000TCA | Semi-Trailer | 280 E 23 | ||
| Iveco, Trucks EU | P/PA Series | 13.8 | Diesel | 1987 04 | 1990 12 | 224 | 305 | 13798 | 6 | 8210.22.210 | Dump Truck | P/PA 190-30 | ||
| Iveco, Trucks EU | P/PA Series | 13.8 | Diesel | 1987 04 | 1990 12 | 224 | 305 | 13798 | 6 | 8210.22.210 | Platform / Chassis | P/PA 190-30 | ||
| Iveco, Trucks EU | P/PA Series | 13.8 | Diesel | 1987 04 | 1990 12 | 224 | 305 | 13798 | 6 | 8210.22.236 | Dump Truck | P/PA 190-30 | ||
| Iveco, Trucks EU | EuroCargo | 4 | Diesel | 1991 01 | 1996 12 | 75 | 102 | 3908 | 4 | 8040.25B.4200LTC | Dump Truck | 65 E 10 | ||
| Iveco, Trucks EU | EuroCargo | 4 | Diesel | 1991 01 | 2000 02 | 85 | 116 | 3908 | 4 | 8040.25X.4000TC | Dump Truck | 65 E 12 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1991 01 | 2000 09 | 105 | 143 | 5861 | 6 | 8060.25R.4200LTC | Dump Truck | 75 E 15 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1991 01 | - | 105 | 143 | 5861 | 6 | 8060.45R.5001 | Platform / Chassis | 100 E 15 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1992 01 | - | 167 | 227 | 5861 | 6 | 8060.45.6090 | Platform / Chassis | 120 E 23 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1994 01 | - | 105 | 143 | 5861 | 6 | 8060.25R.4280LTC | Platform / Chassis | 130 E 15 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1992 01 | - | 167 | 227 | 5861 | 6 | 8060.45.6090 | Platform / Chassis | 130 E 23 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1992 01 | - | 167 | 227 | 5861 | 6 | 8060.45S.6000TCA | Platform / Chassis | 130 E 23 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1992 01 | 1996 12 | 105 | 143 | 5861 | 6 | 8060.25R.4280LTC | Dump Truck | 150 E 15 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1991 01 | - | 152 | 207 | 5861 | 6 | 8060.45.4180TCA | Platform / Chassis | 80 E 21 | ||
| Iveco, Trucks EU | EuroCargo | 5.9 | Diesel | 1992 01 | - | 167 | 227 | 5861 | 8060.45STCA | Dump Truck | 260 E 23 KE | |||
| Iveco, Trucks EU | 100 | 13.8 | Diesel | 1987 09 | 1999 09 | 224 | 304 | 13798 | 6 | 8210.. | 190-30 H | |||
| Iveco, Trucks EU | 300 | 13.8 | Diesel | 1989 10 | 1992 12 | 224 | 304 | 13769 | 6 | 8210.. | 330-30 N | |||
| Iveco, Trucks EU | 300 | 13.8 | Diesel | 1989 02 | 1998 12 | 265 | 360 | 13768 | 6 | 8210.. | 330-36 HW | |||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1992 01 | - | 130 | 177 | 5861 | 6 | 8060.25V.4080TC | Platform / Chassis | 130 E 18 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1991 01 | - | 105 | 143 | 5861 | 6 | 8060.45R.5005 | Platform / Chassis | 100 E 15 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1991 01 | - | 105 | 143 | 5861 | 6 | 8060.25R.4200LTC | Dump Truck | 100 E 15 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1991 01 | - | 105 | 143 | 5861 | 6 | 8060.25R.4280LTC | Platform / Chassis | 120 E 15 | ||
| Iveco, Trucks EU | EuroCargo | 5.8 | Diesel | 1994 01 | - | 167 | 227 | 5816 | 6 | 8060.45STCA | Platform / Chassis | 180 E 23 | ||
| Iveco, Trucks EU | EuroCargo | 4 | Diesel | 1991 01 | 1996 12 | 85 | 116 | 3908 | 4 | 8040.25X.4000TC | Platform / Chassis | 60 E 12 | ||
| Iveco, Trucks EU | EuroCargo | 4 | Diesel | 1991 01 | 1996 12 | 100 | 136 | 3908 | 4 | 8040.45.4000TCA | Platform / Chassis | 60 E 14 | ||
| Iveco, Trucks EU | EuroCargo | 4 | Diesel | 1991 01 | 2000 02 | 85 | 116 | 3908 | 4 | 8040.25X.4000TC | Platform / Chassis | 75 E 12 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1991 01 | 2000 09 | 105 | 143 | 5861 | 6 | 8060.25R.4200LTC | Platform / Chassis | 75 E 15 | ||
| Iveco, Trucks EU | 300 | 13.8 | Diesel | 1984 06 | 1992 12 | 224 | 304 | 13768 | 6 | 8210.. | 330-30 H | |||
| Iveco, Trucks EU | TurboTech | 9.5 | Diesel | 1990 07 | 2000 11 | 192 | 260 | 9500 | 6 | 8460.21.102 | 240-26 | |||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1991 01 | - | 105 | 143 | 5861 | 6 | 8060.25R.4200LTC | Platform / Chassis | 100 E 15 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1991 01 | - | 130 | 177 | 5861 | 6 | 8060.25V.4000 | Platform / Chassis | 100 E 18 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1991 01 | - | 130 | 177 | 5861 | 6 | 8060.25V.4000TC | Dump Truck | 100 E 18 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1991 01 | - | 152 | 207 | 5861 | 6 | 8060.45.4100TCA | Platform / Chassis | 100 E 21 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1992 01 | - | 130 | 177 | 5861 | 6 | 8060.25V.4080TC | Dump Truck | 150 E 18 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1992 01 | - | 167 | 227 | 5861 | 6 | 8060.45.6090 | Platform / Chassis | 150 E 23 | ||
| Iveco, Trucks EU | EuroCargo | 5.8 | Diesel | 1994 01 | - | 167 | 227 | 5816 | 6 | 8060.45STCA | Dump Truck | 170 E 23 | ||
| Iveco, Trucks EU | EuroCargo | 4 | Diesel | 1991 01 | 1996 08 | 75 | 102 | 3908 | 4 | 8040.25B.4200LTC | Platform / Chassis | 60 E 10 | ||
| Iveco, Trucks EU | EuroCargo | 4 | Diesel | 1991 01 | 1996 12 | 75 | 102 | 3908 | 4 | 8040.25B.4200LTC | Platform / Chassis | 65 E 10 | ||
| Iveco, Trucks EU | EuroCargo | 4 | Diesel | 1991 01 | 2000 02 | 100 | 136 | 3908 | 4 | 8040.45.4000TCA | Dump Truck | 65 E 14 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1991 01 | 2000 09 | 105 | 143 | 5861 | 6 | 8060.25R.4200LTC | Platform / Chassis | 80 E 15 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1991 01 | - | 105 | 143 | 5861 | 6 | 8060.25R.4200LTC | Platform / Chassis | 80 E 15 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1991 01 | - | 130 | 177 | 5861 | 6 | 8060.25V.4000TC | Dump Truck | 80 E 18 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1991 01 | - | 152 | 207 | 5861 | 6 | 8060.45.4100TCA | Semi-Trailer | 180 E 21 | ||
| Iveco, Trucks EU | P/PA Series | 13.8 | Diesel | 1991 01 | 1992 12 | 224 | 305 | 13798 | 6 | 8210.22X.235 | Dump Truck | P/PA 330-30 | ||
| Iveco, Trucks EU | EuroCargo | 5.9 | Diesel | 1998 01 | 2003 01 | 105 | 143 | 5861 | 6 | 8060.25R.4280 | Platform / Chassis | 120 E 14 | ||
| Iveco, Trucks EU | 200 | 13.8 | Diesel | 1984 06 | 1991 10 | 224 | 304 | 13798 | 6 | 8210.. | 260-30 H | |||
| Iveco, Trucks EU | 300 | 13.8 | Diesel | 1984 01 | 1996 07 | 224 | 304 | 13798 | 6 | 8210.. | 320-30 H | |||
| Iveco, Trucks EU | 300 | 13.8 | Diesel | 1989 01 | 1999 12 | 265 | 360 | 13768 | 6 | 8210.. | 330-36 H | |||
| Iveco, Trucks EU | 90 | 6.1 | Diesel | 1983 01 | 1991 12 | 0 | 0 | 6120 | 6 | BF6L913T | 90-13A | |||
| Astra, Industrials | BM | - | - | 0 | 0 | 0 | Dumper | BM304 | ||||||
| Astra, Industrials | BM | - | - | 0 | 0 | 0 | Dumper | BM20M | ||||||
| Astra, Industrials | MR | - | - | 0 | 0 | 0 | Dumper | MR | ||||||
| Astra, Industrials | BM | - | - | 0 | 0 | 0 | Dumper | BM25 | ||||||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1992 01 | 1996 12 | 105 | 143 | 5861 | 6 | 8060.25R.4280LTC | Platform / Chassis | 150 E 15 | ||
| Iveco, Trucks EU | EuroCargo | 5.8 | Diesel | 1994 01 | - | 130 | 177 | 5861 | 6 | 8060.25VTC | Platform / Chassis | 180 E 18 | ||
| Iveco, Trucks EU | EuroCargo | 5.8 | Diesel | 1994 01 | - | 130 | 177 | 5861 | 6 | 8060.25VTC | Dump Truck | 180 E 18 | ||
| Iveco, Trucks EU | EuroCargo | 5.8 | Diesel | 1994 01 | - | 167 | 227 | 5816 | 6 | 8060.45STCA | Dump Truck | 180 E 23 | ||
| Iveco, Trucks EU | 100 | 13.8 | Diesel | 1987 09 | 1999 09 | 224 | 304 | 13798 | 6 | 8210.. | 190-30 N | |||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1991 01 | - | 105 | 143 | 5861 | 6 | 8060.45R.5000 | Platform / Chassis | 100 E 15 | ||
| Iveco, Trucks EU | EuroCargo | 5.8 | Diesel | 1994 01 | - | 167 | 227 | 5816 | 6 | 8060.45STCA | Platform / Chassis | 170 E 23 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1991 01 | - | 105 | 143 | 5861 | 6 | 8060.45R.5003 | Platform / Chassis | 100 E 15 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1991 01 | - | 105 | 143 | 5861 | 6 | 8060.45R.5001 | Platform / Chassis | 100 E 15 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1992 01 | 1996 12 | 105 | 143 | 5861 | 6 | 8060.25R.4280LTC | Dump Truck | 150 E 15 | ||
| Iveco, Trucks EU | P/PA Series | 13.8 | Diesel | 1987 04 | 1990 12 | 224 | 305 | 13798 | 6 | 8210.22.210 | Dump Truck | P/PA 190-30 | ||
| Iveco, Trucks EU | P/PA Series | 13.8 | Diesel | 1987 04 | 1990 12 | 224 | 305 | 13798 | 6 | 8210.22.210 | Platform / Chassis | P/PA 190-30 | ||
| Iveco, Trucks EU | P/PA Series | 13.8 | Diesel | 1987 04 | 1990 12 | 224 | 305 | 13798 | 6 | 8210.22.236 | Dump Truck | P/PA 190-30 | ||
| Iveco, Trucks EU | 100 | 13.8 | Diesel | 1987 09 | 1999 09 | 224 | 304 | 13798 | 6 | 8210.. | 190-30 H | |||
| Iveco, Trucks EU | 300 | 13.8 | Diesel | 1989 02 | 1998 12 | 265 | 360 | 13768 | 6 | 8210.. | 330-36 HW | |||
| Iveco, Trucks EU | EuroCargo | 5.8 | Diesel | 1994 01 | - | 167 | 227 | 5816 | 6 | 8060.45STCA | Platform / Chassis | 180 E 23 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1991 01 | - | 105 | 143 | 5861 | 6 | 8060.45R.5005 | Platform / Chassis | 100 E 15 | ||
| Iveco, Trucks EU | 300 | 13.8 | Diesel | 1984 06 | 1992 12 | 224 | 304 | 13768 | 6 | 8210.. | 330-30 H | |||
| Iveco, Trucks EU | TurboTech | 9.5 | Diesel | 1990 07 | 2000 11 | 192 | 260 | 9500 | 6 | 8460.21.102 | 240-26 | |||
| Iveco, Trucks EU | P/PA Series | 13.8 | Diesel | 1991 01 | 1992 12 | 224 | 305 | 13798 | 6 | 8210.22X.235 | Dump Truck | P/PA 330-30 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1991 01 | - | 105 | 143 | 5861 | 6 | 8060.25R.4200LTC | Platform / Chassis | 100 E 15 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1991 01 | - | 152 | 207 | 5861 | 6 | 8060.45.4100TCA | Platform / Chassis | 100 E 21 | ||
| Iveco, Trucks EU | EuroCargo | 5.8 | Diesel | 1994 01 | - | 167 | 227 | 5816 | 6 | 8060.45STCA | Dump Truck | 170 E 23 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1991 01 | - | 105 | 143 | 5861 | 6 | 8060.25R.4200LTC | Platform / Chassis | 80 E 15 | ||
| Iveco, Trucks EU | EuroCargo | 6 | Diesel | 1991 01 | - | 130 | 177 | 5861 | 6 | 8060.25V.4000 | Platform / Chassis | 100 E 18 | ||
| Iveco, Trucks EU | EuroCargo | 5.9 | Diesel | 1998 01 | 2003 01 | 105 | 143 | 5861 | 6 | 8060.25R.4280 | Platform / Chassis | 120 E 14 | ||
| Iveco, Trucks EU | 200 | 13.8 | Diesel | 1984 06 | 1991 10 | 224 | 304 | 13798 | 6 | 8210.. | 260-30 H | |||
| Iveco, Trucks EU | 300 | 13.8 | Diesel | 1984 01 | 1996 07 | 224 | 304 | 13798 | 6 | 8210.. | 320-30 H |
