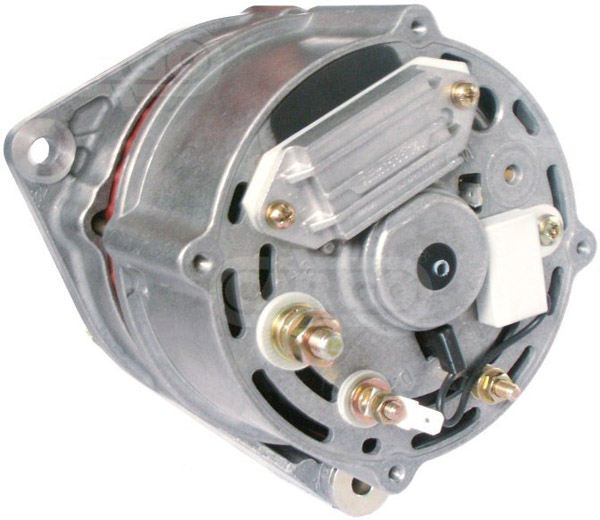

112098 - Alternator (112098)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.

Voltage: 14,
Amp: 65, Terminal W,
Bracket Hole: 8.20, Belt. adj. bracket hole 8.30,
Width/Holder Arm: 56.00, Belt. adj. brackethole pos. 10, Belt. adj. brackethole pos. 50,
Pulley Dia.: 76.50,
Pulley Dist.: 77.00,
Grooves/Pulley: 1,
Radius: >85,
Radius: 81.00,
Radius: 81.00,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: EF, Pulley P, Belt. adj. bracket hole 8.30,
Total Length: 171.00

Electrical specifications (Alternator)
Voltage	14
Amp	65
Terminal	W

Physical specifications (Alternator)
D	Bracket hole 8.20
G	Belt. adj. bracket hole 8.30
B	Width/holder arm 56.00
E	Belt. adj. brackethole pos. 10
E	Belt. adj. brackethole pos. 50
H	Pulley dia. 76.50
A	Pulley dist. 77.00
i	Grooves/pulley 1
j	Radius >85
j	Radius 81.00
j	Radius 81.00
k	B+ position M6
n	Rotation CR
o	Regulator plug PL_NA
G	Belt. adj. bracket hole 8.30
R	Total length 171.00

Further information (Alternator)
Blower	EF
Pulley	P

Replacing
0021543802	MERCEDES BENZ
0021544002	MERCEDES BENZ
0031540502	MERCEDES BENZ
0031541002	MERCEDES BENZ
0061541602	MERCEDES BENZ
0120400369	BOSCH
0120400600	BOSCH
0120400601	BOSCH
0120400603	BOSCH
0120400606	BOSCH

UNISTART Price: £65.86
