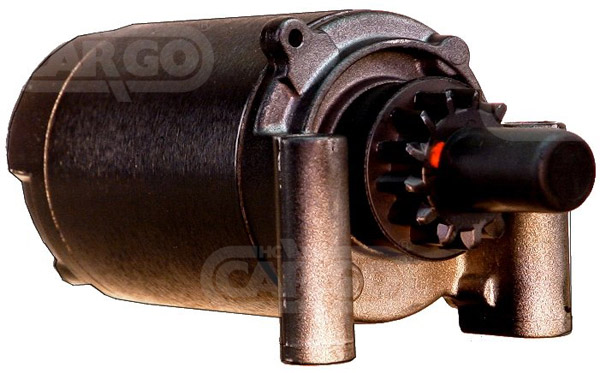

112150 - Starter (112150)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 12, Drive dist. 17.00, Dist./back 136.00, Dist./front 52.00, No. of teeth 13, B+ 1/4" UNC, Gear type DD, Dist. 68.00,
Rotation: ACR, No./mount. holes 2 (0),
Drive Type: Steel,
Total Length: 202.00, Oil sealed No, Waterproof No
Electrical specifications (Starter) | ||||
| Voltage | 12 | |||
Physical specifications (Starter) | ||||
| B | Drive dist. 17.00 | |||
| F | Dist./back 136.00 | |||
| G | Dist./front 52.00 | |||
| H | No. of teeth 13 | |||
| I | B+ 1/4" UNC | |||
| N | Gear type DD | |||
| O | Dist. 68.00 | |||
| P | Rotation ACR | |||
| R | Total length 202.00 | |||
Further information (Starter) | ||||
| No./mount. | holes 2 (0) | |||
| Drive | type Steel | |||
| Oil | sealed No | |||
| Waterproof | No | |||
Replacing | ||||
| 12-098-05 | KOHLER | |||
| 12-098-06 | KOHLER | |||
| 12-098-09 | KOHLER | |||
| 12-098-12 | KOHLER | |||
| 1209821 | KOHLER | |||
| 12-098-21 | KOHLER | |||
| 5239740MO30SM | UNITED TECHNOLOGIES | |||
| 5278440MO30SM | UNITED TECHNOLOGIES | |||
| 5667040MO30SM | UNITED TECHNOLOGIES | |||
| 6734620mo30sm | UNITED TECHNOLOGIES | |||
UNISTART Price: £76.42
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cub Cadet, Agricultural | 1000 Series | 1.3 | - | - | 0 | 12 | 0 | Kohler | Garden 1340 | |||||
| Cub Cadet, Agricultural | 1000 Series | Gasoline | 1992 01 | - | 0 | 0 | 0 | Kohler | Lawn 1330 | |||||
| Cub Cadet, Agricultural | 1000 Series | Gasoline | 1989 01 | - | 0 | 0 | 0 | Kohler | Lawn 1320 | |||||
| Cub Cadet, Agricultural | 1000 Series | Gasoline | 1992 01 | - | 0 | 0 | 0 | Kohler | Lawn 1325 | |||||
| Cub Cadet, Agricultural | 1000 Series | Gasoline | 1990 01 | - | 0 | 0 | 0 | Kohler | Lawn 1405 | |||||
| Cub Cadet, Agricultural | 1000 Series | 1.3 | - | - | 0 | 12 | 0 | Kohler | Lawn 1315 | |||||
| Kohler, MOTOR | Engine | Gasoline | - | - | 0 | 12 | 0 | Engine | ||||||
| Kohler, MOTOR | Engine | - | - | 0 | 14 | 0 | Engine | |||||||
| Kohler, MOTOR | Engine | Gasoline | - | - | 0 | 12 | 0 | Engine | ||||||
| Kohler, MOTOR | Engine | - | - | 0 | 14 | 0 | Engine |
