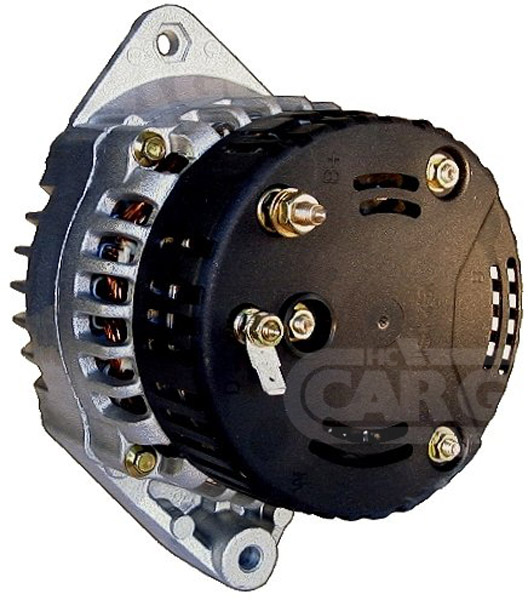

112191 - Alternator (112191)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 80,
Bracket Hole: 8.00, Belt. adj. bracket hole 8.00,
Width/Holder Arm: 56.00, Belt. adj. brackethole pos. 2,
Pulley Dia.: 73.75,
Pulley Dist.: 81.40,
Grooves/Pulley: 1,
Radius: >85,
Radius: 86.50,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: EF, Pulley P,
Total Length: 183.50, Source Mahle Letrika

Electrical specifications (Alternator)
Voltage 14
Amp 80

Physical specifications (Alternator)
D Bracket hole 8.00
G Belt. adj. bracket hole 8.00
B Width/holder arm 56.00
E Belt. adj. brackethole pos. 2
H Pulley dia. 73.75
A Pulley dist. 81.40
i Grooves/pulley 1
j Radius >85
j Radius 86.50
k B+ position M6
n Rotation CR
o Regulator plug PL_NA
R Total length 183.50
Source Mahle Letrika

Further information (Alternator)
Blower EF
Pulley P

Replacing
11.201.498 ISKRA
2121-43701010 LADA
21214-3701010 KATEK
21214-3701010 LADA
9412.3701 LADA
aak5105 ISKRA

UNISTART Price: £189.03

Sorry, this item is out of stock.

The 112191 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Lada, Passenger Car EU 110 1.5 Gasoline 2000 10 - 67 91 1499 4 16V 110
Lada, Passenger Car EU Niva 1.7 Bi-Fuel 2002 09 - 57 78 1690 4 Hatchback LPG Niva
Lada, Passenger Car EU Niva 1.7 Gasoline 1996 06 - 59 80 1690 4 i BA321214 1700 Niva
Lada, Passenger Car EU 111 1.5 Gasoline 2000 10 - 56 76 1499 4 VAZ-2111 Estate 111
Lada, Passenger Car EU Niva 1.7 Gasoline 2000 10 - 60 82 1690 4 i 4x4 Niva
Lada, Passenger Car EU Niva 1.7 Gasoline 2010 09 - 61 83 1690 4 4x4 Niva
Lada, Passenger Car EU 111 1.5 Gasoline 2000 10 - 67 91 1499 4 16V VAZ-2112 Estate 111
Lada, Passenger Car EU 112 1.5 Gasoline 2000 10 - 67 91 1499 4 16V VAZ-2112 Hatchback 112
Lada, Passenger Car EU 110 1.5 Gasoline 2000 10 - 67 91 1499 4 16V 110
Lada, Passenger Car EU Niva 1.7 Bi-Fuel 2002 09 - 57 78 1690 4 Hatchback LPG Niva
Lada, Passenger Car EU Niva 1.7 Gasoline 1996 06 - 59 80 1690 4 i BA321214 1700 Niva
Lada, Passenger Car EU 111 1.5 Gasoline 2000 10 - 56 76 1499 4 VAZ-2111 Estate 111
Lada, Passenger Car EU Niva 1.7 Gasoline 2000 10 - 60 82 1690 4 i 4x4 Niva
Lada, Passenger Car EU Niva 1.7 Gasoline 2010 09 - 61 83 1690 4 4x4 Niva
Lada, Passenger Car EU 111 1.5 Gasoline 2000 10 - 67 91 1499 4 16V VAZ-2112 Estate 111
Lada, Passenger Car EU 112 1.5 Gasoline 2000 10 - 67 91 1499 4 16V VAZ-2112 Hatchback 112
Lada, Passenger Car EU 110 1.5 Gasoline 2000 10 - 67 91 1499 4 16V 110
Lada, Passenger Car EU Niva 1.7 Bi-Fuel 2002 09 - 57 78 1690 4 Hatchback LPG Niva
Lada, Passenger Car EU 111 1.5 Gasoline 2000 10 - 56 76 1499 4 VAZ-2111 Estate 111
Lada, Passenger Car EU Niva 1.7 Gasoline 2000 10 - 60 82 1690 4 i 4x4 Niva
Lada, Passenger Car EU Niva 1.7 Gasoline 2010 09 - 61 83 1690 4 4x4 Niva
Lada, Passenger Car EU 111 1.5 Gasoline 2000 10 - 67 91 1499 4 16V VAZ-2112 Estate 111
Lada, Passenger Car EU 112 1.5 Gasoline 2000 10 - 67 91 1499 4 16V VAZ-2112 Hatchback 112
Lada, Passenger Car EU 110 1.5 Gasoline 2000 10 - 67 91 1499 4 16V 110
Lada, Passenger Car EU Niva 1.7 Bi-Fuel 2002 09 - 57 78 1690 4 Hatchback LPG Niva
Lada, Passenger Car EU Niva 1.7 Gasoline 1996 06 - 59 80 1690 4 i BA321214 1700 Niva
Lada, Passenger Car EU 111 1.5 Gasoline 2000 10 - 56 76 1499 4 VAZ-2111 Estate 111
Lada, Passenger Car EU Niva 1.7 Gasoline 2000 10 - 60 82 1690 4 i 4x4 Niva
Lada, Passenger Car EU Niva 1.7 Gasoline 2010 09 - 61 83 1690 4 4x4 Niva
Lada, Passenger Car EU 111 1.5 Gasoline 2000 10 - 67 91 1499 4 16V VAZ-2112 Estate 111
Lada, Passenger Car EU 112 1.5 Gasoline 2000 10 - 67 91 1499 4 16V VAZ-2112 Hatchback 112
