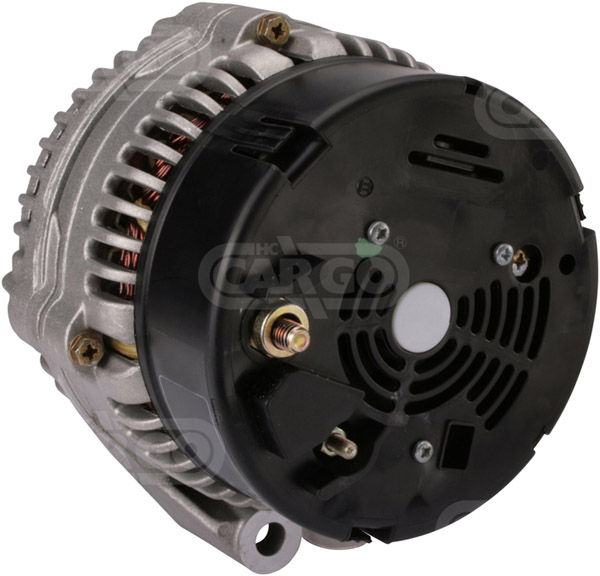

112196 - Alternator (112196)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 143,
Bracket Hole: 10.30, Belt. adj. bracket hole 10.30,
Width/Holder Arm: 56.00, Belt. adj. brackethole pos. 10,
Radius: 90.00,
Radius: 90.00,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: IF, Pulley w/o, Remarks Bosch Type.,
Total Length: 177.00, Source Bosch
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 143 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 10.30 | |||
| G | Belt. adj. bracket hole 10.30 | |||
| B | Width/holder arm 56.00 | |||
| E | Belt. adj. brackethole pos. 10 | |||
| j | Radius 90.00 | |||
| j | Radius 90.00 | |||
| k | B+ position M8 | |||
| n | Rotation CR | |||
| o | Regulator plug PL_NA | |||
| R | Total length 177.00 | |||
| Source | Bosch | |||
Further information (Alternator) | ||||
| Blower | IF | |||
| Pulley | w/o | |||
| Remarks | Bosch Type. | |||
Replacing | ||||
| 0101541502 | MERCEDES BENZ | |||
| 0101541602 | MERCEDES BENZ | |||
| 0123510060 | BOSCH | |||
| 0123510074 | BOSCH | |||
| 0123510075 | BOSCH | |||
| 0124615053 | BOSCH | |||
| 1340893 | DAF | |||
| 51.26101-7221 | MAN | |||
| A0101541502 | MERCEDES BENZ | |||
| A0101541602 | MERCEDES BENZ | |||
UNISTART Price: £343.25
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fendt, Agricultural | Favorit | 5.7 | Diesel | 1978 02 | - | 63 | 86 | 5650 | 6 | Diesel | D227-6 | 600 | ||
| Fendt, Agricultural | Favorit | 5.7 | Diesel | 1978 02 | - | 70 | 95 | 5650 | 6 | Diesel | D226-6 | 610 | ||
| Fendt, Agricultural | Favorit | 6.2 | Diesel | 1976 02 | - | 77 | 105 | 6240 | 6 | Diesel | D226-6 | 611 | ||
| Fendt, Agricultural | Favorit | 6.2 | Diesel | 1976 02 | - | 88 | 120 | 6240 | 6 | Diesel | D226-6 | 612 | ||
| Fendt, Agricultural | Favorit | 11.4 | Diesel | 1982 02 | - | 185 | 252 | 11400 | 6 | Diesel | D2566ME | 626 LS | ||
| Fendt, Agricultural | Farmer | 4.2 | Diesel | 1980 02 | - | 0 | 0 | 0 | 4 | Diesel | D226.. | 300 SERIES | ||
| Fendt, Agricultural | Favorit | 6.2 | Diesel | 1978 02 | - | 99 | 135 | 6240 | 6 | Diesel | TD226-6 | 614 | ||
| Fendt, Agricultural | Favorit | 6.2 | Diesel | 1978 02 | - | 110 | 150 | 6240 | 6 | Diesel | TD226-6 | 615 | ||
| Mercedes-Benz, Passenger Car EU | Vito | 2.3 | Diesel | 1997 03 | 2003 07 | 72 | 98 | 2299 | 4 | TD | OM601.970 | Van | Vito 110 |
