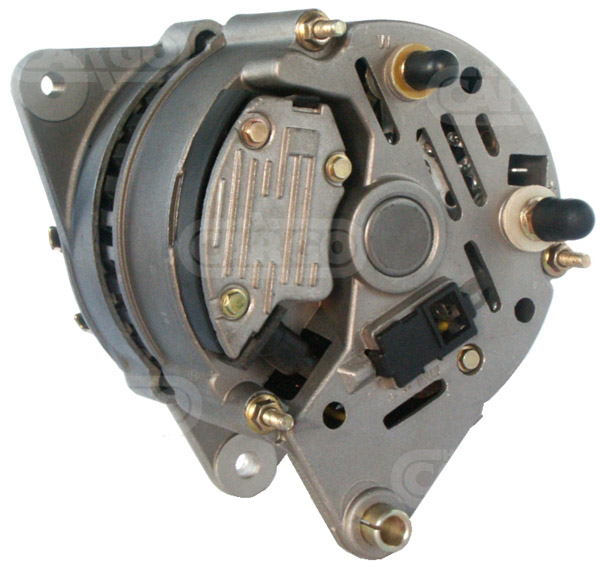

112238 - Alternator (112238)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 65, Terminal W,
Bracket Hole: 8.20, Belt. adj. bracket hole M8,
Width/Holder Arm: 11.50, Belt. adj. brackethole pos. 10,
Mount. Bracket Dist.: 81.70,
Pulley Dia.: 66.00,
Pulley Dist.: 36.00,
Grooves/Pulley: 1,
Radius: 86.00,
Radius: 86.00,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: EF, Pulley P,
Total Length: 168.00
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 65 | |||
| Terminal | W | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 8.20 | |||
| G | Belt. adj. bracket hole M8 | |||
| B | Width/holder arm 11.50 | |||
| E | Belt. adj. brackethole pos. 10 | |||
| C | Mount. bracket dist. 81.70 | |||
| H | Pulley dia. 66.00 | |||
| A | Pulley dist. 36.00 | |||
| i | Grooves/pulley 1 | |||
| j | Radius 86.00 | |||
| j | Radius 86.00 | |||
| k | B+ position M6 | |||
| n | Rotation CR | |||
| o | Regulator plug PL_NA | |||
| R | Total length 168.00 | |||
Further information (Alternator) | ||||
| Blower | EF | |||
| Pulley | P | |||
Replacing | ||||
| 111357 | CARGO | |||
| 1475923M91 | MASSEY FERGUSON | |||
| 24161 | LUCAS | |||
| 24161a | LUCAS | |||
| 24161d | LUCAS | |||
| 24228 | LUCAS | |||
| 24228a | LUCAS | |||
| 24240 | LUCAS | |||
| 24240a | LUCAS | |||
| 24241 | LUCAS | |||
UNISTART Price: £59.53
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rover, Passenger Car EU | 200 | 1.4 | Gasoline | 1993 01 | 1999 11 | 76 | 103 | 1396 | 4 | i | 14K4F | Convertible | 214 | |
| Rover, Passenger Car EU | 100 | 1.4 | Gasoline | 1990 03 | 1998 12 | 55 | 75 | 1396 | 4 | 14K2D | Hatchback | 114 | ||
| Rover, Passenger Car EU | 200 | 1.4 | Gasoline | 1990 01 | 1995 10 | 70 | 95 | 1396 | 4 | 14K4C | Hatchback | 214 | ||
| Rover, Passenger Car EU | 100 | 1.4 | Gasoline | 1990 03 | 1991 08 | 69 | 94 | 1396 | 4 | GTi 16V | 14K4D | Hatchback | Metro | 114 |
| Rover, Passenger Car EU | Montego | 2 | Gasoline | 1988 10 | 1991 10 | 86 | 117 | 1994 | 4 | GTi | 20H | Montego | ||
| Rover, Passenger Car EU | 400 | 1.4 | Gasoline | 1993 01 | 1995 04 | 76 | 103 | 1396 | 4 | 14K4F | 414 | |||
| Rover, Passenger Car EU | 100 | 1.4 | Gasoline | 1990 03 | 1998 12 | 66 | 90 | 1396 | 4 | 16V | 14K4C | Hatchback | Metro | 114 |
| Rover, Passenger Car EU | 100 | 1.4 | Gasoline | 1994 10 | 1995 10 | 76 | 103 | 1396 | 4 | GSi | 14K4F | Hatchback | 114 | |
| Rover, Passenger Car EU | 200 | 1.4 | Gasoline | 1989 10 | 1995 10 | 66 | 90 | 1396 | 4 | 14K4C | Hatchback | 214 | ||
| Rover, Passenger Car EU | 200 | 1.4 | Gasoline | 1989 10 | 1995 10 | 66 | 90 | 1396 | 4 | 14K4D | Hatchback | 214 | ||
| Rover, Passenger Car EU | 200 | 1.4 | Gasoline | 1992 12 | 1995 10 | 76 | 103 | 1396 | 4 | 14K4F | Hatchback | 214 | ||
| Rover, Passenger Car EU | 100 | 1.4 | Gasoline | 1990 03 | 1998 12 | 55 | 75 | 1396 | 4 | 14K2A | Hatchback | Metro | 114 | |
| Rover, Passenger Car EU | 100 | 1.4 | Gasoline | 1990 03 | 1998 12 | 66 | 90 | 1396 | 4 | 16V | 14K4D | Hatchback | Metro | 114 |
| Rover, Passenger Car EU | 214 | 1.4 | Gasoline | 1990 04 | 1992 09 | 70 | 95 | 1396 | 4 | 14K4C | Convertible | 214 | ||
| Rover, Passenger Car EU | 100 | 1.4 | Gasoline | 1991 08 | 1998 12 | 76 | 103 | 1396 | 4 | GTi 16V | 14K4F | Hatchback | 114 | |
| Rover, Passenger Car EU | 100 | 1.4 | Gasoline | 1990 03 | 1991 08 | 69 | 94 | 1396 | 4 | GTi 16V | 14K4C | Hatchback | Metro | 114 |
| LDV, Passenger Car EU | Sherpa | 3.5 | Gasoline | 1983 01 | 1988 09 | 103 | 140 | 3528 | 6 | Bus | Sherpa | |||
| LDV, Passenger Car EU | Sherpa | 2.6 | Diesel | 1983 01 | 1988 09 | 59 | 80 | 2594 | 6 | Diesel | K25D | Bus | Sherpa | |
| LDV, Passenger Car EU | Sherpa | 1.8 | Gasoline | 1983 01 | 1988 09 | 50 | 68 | 1760 | 4 | G18A | Bus | Sherpa | ||
| LDV, Passenger Car EU | Sherpa | 2 | Gasoline | 1983 01 | 1988 09 | 64 | 87 | 1994 | 4 | G20A | Bus | Sherpa | ||
| LDV, Passenger Car EU | 200 | 2 | Diesel | 1986 11 | 1998 12 | 0 | 0 | 1944 | 4 | Diesel | Van | 200 | ||
| LDV, Passenger Car EU | Sherpa | 2 | Diesel | 1986 01 | 1989 01 | 0 | 0 | 0 | 4 | Diesel | Van | Sherpa | ||
| Austin, Passenger Car EU | Montego | 1.6 | Gasoline | 1984 10 | 1988 08 | 61 | 83 | 1598 | 4 | 16HC37 | Estate | Montego | ||
| Austin, Passenger Car EU | Montego | 1.6 | Gasoline | 1984 04 | 1988 08 | 61 | 83 | 1598 | 4 | 16HC37 | Montego |
TEST & REPAIR SERVICE
Unistart has its own workshops for remanufacturing with the latest testing equipment. This enables us to provide an excellent (and free) technical helpline and aftersales support and backup service.
You can speak to one of our friendly and knowledgeable technicians who will be glad to Help with any enquiries no matter how large or small. Call us on 020 8 983 9969.
