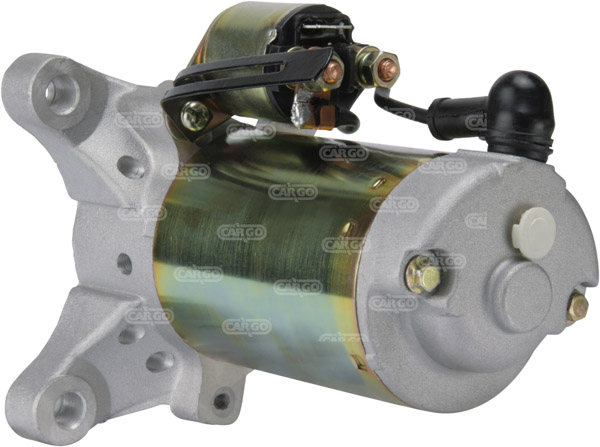

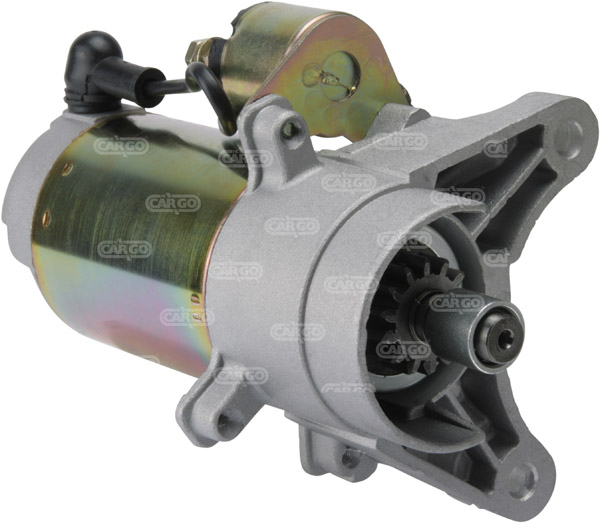

112246 - Starter (112246)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 12, kW 0.6, Mount. flange 62.45, Drive dist. 10.00, Dist./back 152.50, Dist./front 39.00, No. of teeth 14, B+ M6, Gear type DD, Dist. 90.75,
Rotation: ACR, No./mount. holes 2 (0), Clutch type Dry,
Drive Type: Steel, Remarks Solenoid: HC-CARGO 133711.,
Total Length: 193.00, Oil sealed No, Waterproof No
Electrical specifications (Starter) | ||||
| Voltage | 12 | |||
| kW | 0.6 | |||
Physical specifications (Starter) | ||||
| A | Mount. flange 62.45 | |||
| B | Drive dist. 10.00 | |||
| F | Dist./back 152.50 | |||
| G | Dist./front 39.00 | |||
| H | No. of teeth 14 | |||
| I | B+ M6 | |||
| N | Gear type DD | |||
| O | Dist. 90.75 | |||
| P | Rotation ACR | |||
| R | Total length 193.00 | |||
Further information (Starter) | ||||
| No./mount. | holes 2 (0) | |||
| Clutch | type Dry | |||
| Drive | type Steel | |||
| Remarks | Solenoid: HC-CARGO 133711. | |||
| Oil | sealed No | |||
| Waterproof | No | |||
Replacing | ||||
| 028000-6110 | DENSO | |||
| 028000-6111 | DENSO | |||
| 028000-8410 | DENSO | |||
| 028000-8411 | DENSO | |||
| 128000-2950 | DENSO | |||
| 128000-4600 | DENSO | |||
| 128000-4601 | DENSO | |||
| 128000-5290 | DENSO | |||
| 31100-za1-0030 | HONDA | |||
| 31200-ZA1-0030 | HONDA | |||
UNISTART Price: £117.11
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Honda, MOTOR | GX | - | - | 0 | 11 | 0 | GX340DE33 | |||||||
| Honda, MOTOR | GX | - | - | 0 | 13 | 0 | GXV390SE33 | |||||||
| John Deere, Agricultural | Various Models | Diesel | - | - | 0 | 0 | 0 | Various Models |
