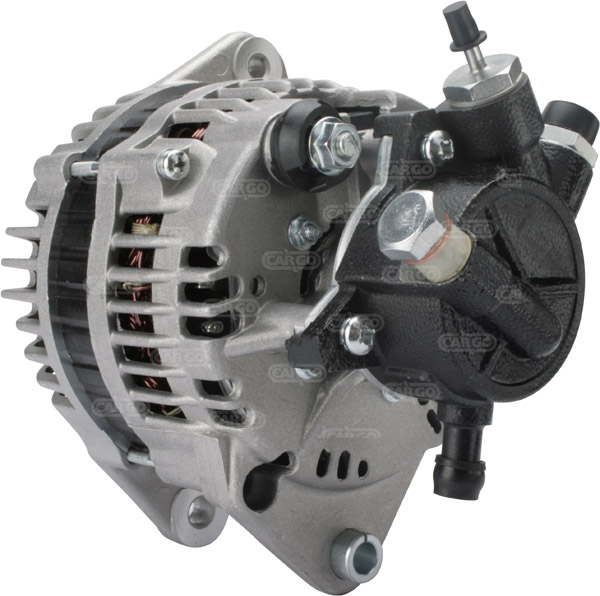

112271 - Alternator (112271)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 100, Terminal W,
Bracket Hole: 10.30, Belt. adj. bracket hole 8.50,
Width/Holder Arm: 12.90, Belt. adj. brackethole pos. 56,
Mount. Bracket Dist.: 66.10,
Pulley Dia.: 60.10,
Pulley Dist.: 36.00,
Grooves/Pulley: 6,
Radius: 90.00,
Radius: 84.00,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL50,
Blower: IF, Pulley SP,
Total Length: 223.00

Electrical specifications (Alternator)
Voltage 14
Amp 100
Terminal W

Physical specifications (Alternator)
D Bracket hole 10.30
G Belt. adj. bracket hole 8.50
B Width/holder arm 12.90
E Belt. adj. brackethole pos. 56
C Mount. bracket dist. 66.10
H Pulley dia. 60.10
A Pulley dist. 36.00
i Grooves/pulley 6
j Radius 90.00
j Radius 84.00
k B+ position M8
n Rotation CR
o Regulator plug PL50
R Total length 223.00

Further information (Alternator)
Blower IF
Pulley SP

Replacing
11.209.424 ISKRA
1204158 OPEL
31100-PLZ-D00 HONDA
6204140 OPEL
6204284 OPEL
8971891133 ISUZU
8-97189113-3 ISUZU
8971891134 ISUZU
8-97189113-4 ISUZU
8971891135 ISUZU

UNISTART Price: £116.92

Sorry, this item is out of stock.

The 112271 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Opel, Passenger Car EU Astra 1.7 Diesel 2000 02 2005 01 55 75 1686 4 DTi 16V Y17DT Hatchback Astra G
Opel, Passenger Car EU Astra 1.7 Diesel 2000 02 2005 01 55 75 1686 4 DTi 16V Y17DT Astra G
Opel, Passenger Car EU Astra 1.7 Diesel 2003 04 2009 12 59 80 1686 4 CDTi Z17DTL Hatchback Astra G
Opel, Passenger Car EU Corsa 1.7 Diesel 2000 09 - 55 75 1686 4 DTi 16V Y17DT Van Corsa C
Opel, Passenger Car EU Combo 1.7 Diesel 2001 10 - 55 75 1686 4 DTi 16V Y17DT Twin Cab Combo
Opel, Passenger Car EU Meriva 1.7 Diesel 2003 09 - 55 75 1686 4 DTi Y17DT MPV Meriva A
Opel, Passenger Car EU Astra 1.7 Diesel 2000 02 2005 04 55 75 1686 4 DTi 16V Y17DT Van Astra G
Opel, Passenger Car EU Astra 1.7 Diesel 2000 02 2004 07 55 75 1686 4 DTi 16V Y17DT Estate Astra G
Opel, Passenger Car EU Astra 1.7 Diesel 2003 04 2009 12 59 80 1686 4 CDTi Z17DTL Astra G
Opel, Passenger Car EU Combo 1.7 Diesel 2001 10 - 48 65 1686 4 Diesel 16V Y17DTL Twin Cab Combo
Opel, Passenger Car EU Astra 1.7 Diesel 2003 04 2004 07 59 80 1686 4 CDTi Z17DTL Estate Astra G
Opel, Passenger Car EU Corsa 1.7 Diesel 2000 09 - 55 75 1686 4 DTi Y17DT Hatchback Corsa C
Opel, Passenger Car EU Corsa 1.7 Diesel 2000 09 - 48 65 1686 4 DT Y17DTL Hatchback Corsa C
Opel, Passenger Car EU Corsa 1.7 Diesel 2000 09 - 48 65 1686 4 Diesel 16V Y17DTL Van Corsa C
Vauxhall, Passenger Car EU Corsa 1.7 Diesel 2000 09 - 48 65 1686 4 DT 16V Y17DTL Hatchback Corsa MK III
Vauxhall, Passenger Car EU Meriva 1.7 Diesel 2003 06 - 55 75 1686 4 CDTi Y17DT MPV Meriva MK I
Vauxhall, Passenger Car EU Corsavan 1.7 Diesel 2000 09 2006 06 48 65 1686 4 Diesel Y17DTL Van Corsavan MK III
Vauxhall, Passenger Car EU Corsavan 1.7 Diesel 2000 09 2006 06 55 75 1686 4 DTi 16V Y17DT Van Corsavan MK III
Vauxhall, Passenger Car EU Astra 1.7 Diesel 2000 02 2005 05 55 75 1686 4 DTi 16V Y17DT Astra MK IV
Vauxhall, Passenger Car EU Combo 1.7 Diesel 2001 10 2011 11 55 75 1686 4 DTi Y17DT Van Combo
Vauxhall, Passenger Car EU Astra 1.7 Diesel 2003 04 2005 05 59 80 1686 4 CDTi 16V Z17DTL Hatchback Astra MK IV
Vauxhall, Passenger Car EU Corsa 1.7 Diesel 2000 09 - 55 75 1686 4 DTi 16V Y17DT Hatchback Corsa MK III
Vauxhall, Passenger Car EU Astra 1.7 Diesel 2000 02 2005 05 55 75 1686 4 DTi 16V Y17DT Estate Astra MK IV
Vauxhall, Passenger Car EU Meriva 1.7 Diesel 2004 04 - 74 100 1686 4 CDTi 16V Z17DTH MPV Meriva A
Vauxhall, Passenger Car EU Astra 1.7 Diesel 2003 04 2005 05 59 80 1686 4 CDTi 16V Z17DTL Astra MK IV
Vauxhall, Passenger Car EU Astra 1.7 Diesel 2000 02 2005 05 55 75 1686 4 DTi 16V Y17DT Hatchback Astra MK IV
Vauxhall, Passenger Car EU Astravan 1.7 Diesel 2004 04 2006 08 59 80 1686 4 CDTi Z17DTL Van Astravan MK IV
Vauxhall, Passenger Car EU Astra 1.7 Diesel 2003 04 2005 05 59 80 1686 4 CDTi 16V Z17DTL Estate Astra MK IV
