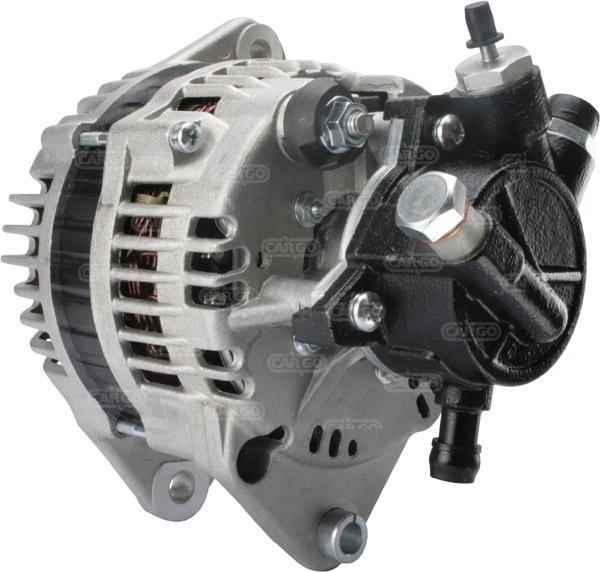

112272 - Alternator (112272)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 70, Terminal W,
Bracket Hole: 10.30, Belt. adj. bracket hole 8.40,
Width/Holder Arm: 13.50, Belt. adj. brackethole pos. 57,
Mount. Bracket Dist.: 66.30,
Pulley Dia.: 60.00,
Pulley Dist.: 36.00,
Grooves/Pulley: 6,
Radius: 90.00,
Radius: >85,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL50,
Blower: IF, Pulley SP,
Total Length: 225.00
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 70 | |||
| Terminal | W | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 10.30 | |||
| G | Belt. adj. bracket hole 8.40 | |||
| B | Width/holder arm 13.50 | |||
| E | Belt. adj. brackethole pos. 57 | |||
| C | Mount. bracket dist. 66.30 | |||
| H | Pulley dia. 60.00 | |||
| A | Pulley dist. 36.00 | |||
| i | Grooves/pulley 6 | |||
| j | Radius 90.00 | |||
| j | Radius >85 | |||
| k | B+ position M8 | |||
| n | Rotation CR | |||
| o | Regulator plug PL50 | |||
| R | Total length 225.00 | |||
Further information (Alternator) | ||||
| Blower | IF | |||
| Pulley | SP | |||
Replacing | ||||
| 1204157 | OPEL | |||
| 8971891122 | ISUZU | |||
| 8-97189112-2 | ISUZU | |||
| 8971891123 | ISUZU | |||
| 8-97189112-3 | ISUZU | |||
| 8971891124 | ISUZU | |||
| 8971891125 | ISUZU | |||
| 8971891126 | ISUZU | |||
| 93178173 | OPEL | |||
| 97189112 | OPEL | |||
UNISTART Price: £124.55
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 2000 02 | 2005 01 | 55 | 75 | 1686 | 4 | DTi 16V | Y17DT | Hatchback | Astra G | |
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 2000 02 | 2005 01 | 55 | 75 | 1686 | 4 | DTi 16V | Y17DT | Astra G | ||
| Opel, Passenger Car EU | Meriva | 1.7 | Diesel | 2003 09 | - | 55 | 75 | 1686 | 4 | DTi | Y17DT | MPV | Meriva A | |
| Opel, Passenger Car EU | Corsa | 1.7 | Diesel | 2000 09 | - | 55 | 75 | 1686 | 4 | DTi 16V | Y17DT | Van | Corsa C | |
| Opel, Passenger Car EU | Combo | 1.7 | Diesel | 2001 10 | - | 55 | 75 | 1686 | 4 | DTi 16V | Y17DT | Twin Cab | Combo | |
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 2000 02 | 2005 04 | 55 | 75 | 1686 | 4 | DTi 16V | Y17DT | Van | Astra G | |
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 2000 02 | 2004 07 | 55 | 75 | 1686 | 4 | DTi 16V | Y17DT | Estate | Astra G | |
| Opel, Passenger Car EU | Combo | 1.7 | Diesel | 2001 10 | - | 48 | 65 | 1686 | 4 | Diesel 16V | Y17DTL | Twin Cab | Combo | |
| Opel, Passenger Car EU | Corsa | 1.7 | Diesel | 2000 09 | - | 55 | 75 | 1686 | 4 | DTi | Y17DT | Hatchback | Corsa C | |
| Opel, Passenger Car EU | Corsa | 1.7 | Diesel | 2000 09 | - | 48 | 65 | 1686 | 4 | DT | Y17DTL | Hatchback | Corsa C | |
| Opel, Passenger Car EU | Corsa | 1.7 | Diesel | 2000 09 | - | 48 | 65 | 1686 | 4 | Diesel 16V | Y17DTL | Van | Corsa C | |
| Vauxhall, Passenger Car EU | Corsa | 1.7 | Diesel | 2000 09 | - | 48 | 65 | 1686 | 4 | DT 16V | Y17DTL | Hatchback | Corsa MK III | |
| Vauxhall, Passenger Car EU | Corsavan | 1.7 | Diesel | 2000 09 | 2006 06 | 48 | 65 | 1686 | 4 | Diesel | Y17DTL | Van | Corsavan MK III | |
| Vauxhall, Passenger Car EU | Corsavan | 1.7 | Diesel | 2000 09 | 2006 06 | 55 | 75 | 1686 | 4 | DTi 16V | Y17DT | Van | Corsavan MK III | |
| Vauxhall, Passenger Car EU | Astra | 1.7 | Diesel | 2000 02 | 2005 05 | 55 | 75 | 1686 | 4 | DTi 16V | Y17DT | Astra MK IV | ||
| Vauxhall, Passenger Car EU | Combo | 1.7 | Diesel | 2001 10 | 2011 11 | 55 | 75 | 1686 | 4 | DTi | Y17DT | Van | Combo | |
| Vauxhall, Passenger Car EU | Corsa | 1.7 | Diesel | 2004 04 | - | 74 | 100 | 1686 | 4 | CDTi 16V | Z17DTH | Hatchback | Corsa MK III | |
| Vauxhall, Passenger Car EU | Combo | 1.7 | Diesel | 2001 09 | 2004 06 | 48 | 65 | 1686 | 4 | DI 16V | Y17DTL | Estate | Combo Tour Mk II | |
| Vauxhall, Passenger Car EU | Corsa | 1.7 | Diesel | 2000 09 | - | 55 | 75 | 1686 | 4 | DTi 16V | Y17DT | Hatchback | Corsa MK III | |
| Vauxhall, Passenger Car EU | Astra | 1.7 | Diesel | 2000 02 | 2005 05 | 55 | 75 | 1686 | 4 | DTi 16V | Y17DT | Estate | Astra MK IV | |
| Vauxhall, Passenger Car EU | Astra | 1.7 | Diesel | 2000 02 | 2005 05 | 55 | 75 | 1686 | 4 | DTi 16V | Y17DT | Hatchback | Astra MK IV |
