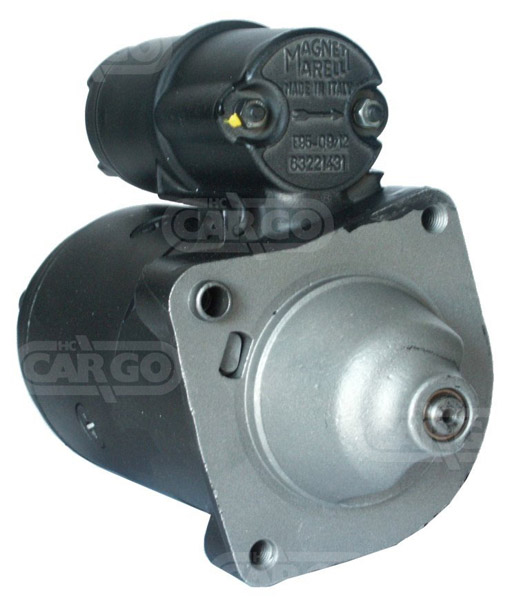

112289 - Starter (112289)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 12, kW 0.8, Mount. flange 64.20, Drive dist. 13.00, Dist./back 168.00, Dist./front 51.00, No. of teeth 11, B+ M8, Terminal 15a M5, Gear type DD, Dist. 105.00, Dist. 2 72.00, Dist. 3 73.00,
Rotation: CR, No./mount. holes 3 (3),
Drive Type: Steel,
Total Length: 224.00, Oil sealed No, Waterproof No
Electrical specifications (Starter) | ||||
| Voltage | 12 | |||
| kW | 0.8 | |||
Physical specifications (Starter) | ||||
| A | Mount. flange 64.20 | |||
| B | Drive dist. 13.00 | |||
| F | Dist./back 168.00 | |||
| G | Dist./front 51.00 | |||
| H | No. of teeth 11 | |||
| I | B+ M8 | |||
| J | Terminal 15a M5 | |||
| N | Gear type DD | |||
| O | Dist. 105.00 | |||
| O | Dist. 2 72.00 | |||
| O | Dist. 3 73.00 | |||
| P | Rotation CR | |||
| R | Total length 224.00 | |||
Further information (Starter) | ||||
| No./mount. | holes 3 (3) | |||
| Drive | type Steel | |||
| Oil | sealed No | |||
| Waterproof | No | |||
Replacing | ||||
| 0001112024 | BOSCH | |||
| 0001211246 | BOSCH | |||
| 4470377 | FIAT | |||
| 4470378 | FIAT | |||
| 46231535 | FIAT | |||
| 5968605 | FIAT | |||
| 63221401 | MAGNETI MARELLI | |||
| 63221431 | MAGNETI MARELLI | |||
| 7589547 | FIAT | |||
| 7589655 | FIAT | |||
UNISTART Price: £71.82
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fiat, Passenger Car EU | Ritmo | 1.5 | Gasoline | 1981 01 | 1982 09 | 63 | 85 | 1498 | 4 | 138A4.000 | Hatchback | Ritmo | ||
| Fiat, Passenger Car EU | Regata | 1.5 | Gasoline | 1985 07 | 1989 07 | 55 | 75 | 1498 | 4 | i.e. | 149C1.000 | Regata | ||
| Fiat, Passenger Car EU | Ritmo | 1.5 | Gasoline | 1980 01 | 1989 07 | 63 | 86 | 1498 | 4 | 138A4.000 | Convertible | Bertone | Ritmo | |
| Fiat, Passenger Car EU | Ritmo | 1.5 | Gasoline | 1983 03 | 1986 12 | 60 | 82 | 1498 | 4 | 138B3.000 | Convertible | Bertone | Ritmo | |
| Fiat, Passenger Car EU | Ritmo | 1.5 | Gasoline | 1985 09 | 1988 12 | 55 | 75 | 1498 | 4 | 138C2.048 | Hatchback | Ritmo | ||
| Fiat, Passenger Car EU | Tempra | 1.4 | Gasoline | 1991 03 | 1996 08 | 57 | 78 | 1372 | 4 | i.e. | 159A2.000 | Tempra | ||
| Fiat, Passenger Car EU | Ritmo | 1.6 | Gasoline | 1985 10 | 1987 12 | 74 | 100 | 1585 | 4 | 138AR.048 | Convertible | Bertone | Ritmo | |
| Fiat, Passenger Car EU | Ritmo | 1.6 | Gasoline | 1985 10 | 1987 12 | 77 | 105 | 1585 | 4 | 138AR.000 | Convertible | Bertone | Ritmo | |
| Fiat, Passenger Car EU | Elba | 1.6 | Gasoline | 1989 04 | 1993 12 | 62 | 84 | 1581 | 4 | 159A3.000 | Estate | Elba | ||
| Fiat, Passenger Car EU | Ritmo | 1.3 | Gasoline | 1981 01 | 1982 09 | 55 | 75 | 1301 | 4 | 138A3.000 | Hatchback | Ritmo | ||
| Fiat, Passenger Car EU | Ritmo | 1.5 | Gasoline | 1983 03 | 1987 05 | 55 | 75 | 1498 | 4 | i.e. | 138C2.048 | Hatchback | Ritmo | |
| Fiat, Passenger Car EU | Regata | 1.3 | Gasoline | 1983 09 | 1989 07 | 48 | 65 | 1301 | 4 | 149A3.000 | ES | Regata | ||
| Fiat, Passenger Car EU | Regata | 1.5 | Gasoline | 1984 09 | 1989 07 | 55 | 75 | 1498 | 4 | i.e. | 138C3.048 | Estate | Regata | |
| Fiat, Passenger Car EU | Uno | 1.5 | Gasoline | 1985 10 | 1993 12 | 55 | 75 | 1499 | 4 | i.e. | 138C2.048 | Hatchback | Uno | |
| Fiat, Passenger Car EU | Ritmo | 1.5 | Gasoline | 1978 01 | 1982 10 | 55 | 75 | 1498 | 4 | 138A2.000 | Hatchback | Ritmo | ||
| Fiat, Passenger Car EU | Ritmo | 1.5 | Gasoline | 1978 01 | 1982 10 | 55 | 75 | 1498 | 4 | 138C3.048 | Hatchback | Ritmo | ||
| Fiat, Passenger Car EU | Fiorino | 1.4 | Gasoline | 1994 05 | 2001 05 | 49 | 67 | 1372 | 4 | 146C5.000 | Van | Fiorino | ||
| Fiat, Passenger Car EU | Regata | 1.5 | Gasoline | 1983 12 | 1987 12 | 55 | 75 | 1498 | 4 | i.e. | 138C3.048 | Regata | ||
| Fiat, Passenger Car EU | Ritmo | 1.5 | Gasoline | 1985 08 | 1987 05 | 58 | 79 | 1498 | 4 | 149A5.000 | Hatchback | Ritmo | ||
| Fiat, Passenger Car EU | Regata | 1.5 | Gasoline | 1984 01 | 1989 04 | 60 | 82 | 1498 | 4 | 138B3.000 | Estate | Regata | ||
| Fiat, Passenger Car EU | Ritmo | 1.5 | Gasoline | 1983 03 | 1987 05 | 55 | 75 | 1498 | 4 | i.e. | 149C1.000 | Hatchback | Ritmo | |
| Fiat, Passenger Car EU | Regata | 1.5 | Gasoline | 1985 07 | 1989 07 | 55 | 75 | 1498 | 4 | i.e. | 138C2.048 | Regata | ||
| Fiat, Passenger Car EU | Uno | 1.3 | Gasoline | 1985 04 | 1989 08 | 77 | 105 | 1301 | 4 | i.e. Turbo | 146A2.000 | Hatchback | Uno | |
| Fiat, Passenger Car EU | Fiorino | 1.6 | Gasoline | 1993 10 | 2001 05 | 55 | 75 | 1581 | 4 | 146C6.000 | Van | Fiorino | ||
| Fiat, Passenger Car EU | Ritmo | 1.5 | Gasoline | 1985 09 | 1988 12 | 55 | 75 | 1498 | 4 | 149C1.000 | Hatchback | Ritmo | ||
| Fiat, Passenger Car EU | Elba | 1.5 | Gasoline | 1992 01 | 1996 12 | 55 | 75 | 1499 | 4 | 149C3.000 | Estate | Elba | ||
| Fiat, Passenger Car EU | Uno | 1.1 | Gasoline | 1988 02 | 1992 02 | 43 | 58 | 1116 | 4 | 146A4.048 | Van | Uno | ||
| Fiat, Passenger Car EU | Ritmo | 1.5 | Gasoline | 1983 01 | 1987 12 | 60 | 82 | 1498 | 4 | 138B3.000 | Hatchback | Ritmo | ||
| Fiat, Passenger Car EU | Regata | 1.3 | Gasoline | 1983 09 | 1989 07 | 48 | 65 | 1301 | 4 | 149A7.000 | ES | Regata | ||
| Fiat, Passenger Car EU | Regata | 1.5 | Gasoline | 1984 09 | 1989 07 | 55 | 75 | 1498 | 4 | i.e. | 138B3.048 | Estate | Regata | |
| Fiat, Passenger Car EU | Uno | 1.3 | Gasoline | 1987 01 | 1987 12 | 73 | 99 | 1301 | 4 | i.e. Turbo | 146A2.146 | Hatchback | Uno | |
| Fiat, Passenger Car EU | Uno | 1.3 | Gasoline | 1989 09 | 1991 03 | 74 | 101 | 1301 | 4 | i.e. Turbo | 146A2.246 | Hatchback | Uno | |
| Fiat, Passenger Car EU | Fiorino | 1.5 | Gasoline | 1988 01 | 1993 08 | 55 | 75 | 1499 | 4 | 149C1.000 | Van | Fiorino | ||
| Fiat, Passenger Car EU | Fiorino | 1.6 | Gasoline | 1993 10 | 2001 05 | 55 | 75 | 1581 | 4 | 146D6.000 | Van | Fiorino | ||
| Fiat, Passenger Car EU | Fiorino | 1.5 | Gasoline | 1988 05 | 1993 12 | 55 | 75 | 1499 | 4 | i.e. | 149C1.000 | Van | Fiorino | |
| Fiat, Passenger Car EU | Regata | 1.6 | Gasoline | 1983 10 | 1990 06 | 60 | 82 | 1585 | 4 | 149A.000 | Regata | |||
| Fiat, Passenger Car EU | Fiorino | 1.6 | Gasoline | 1994 01 | 2001 05 | 55 | 75 | 1581 | 4 | 146C6.000 | Pick Up | Fiorino | ||
| Fiat, Passenger Car EU | Uno | 1.4 | Gasoline | 1989 09 | 1992 10 | 52 | 71 | 1372 | 4 | 160A1.048 | Hatchback | S | Uno | |
| Fiat, Passenger Car EU | Elba | 1.5 | Gasoline | 1992 01 | 1996 12 | 49 | 67 | 1497 | 4 | 149C1.000 | Estate | Elba | ||
| Fiat, Passenger Car EU | Regata | 1.5 | Gasoline | 1985 05 | 1987 12 | 58 | 79 | 1498 | 4 | 149A5.000 | Regata | |||
| Fiat, Passenger Car EU | Regata | 1.5 | Gasoline | 1983 09 | 1985 04 | 60 | 82 | 1498 | 4 | 138B3.000 | Super | Regata | ||
| Fiat, Passenger Car EU | Uno | 1.4 | Gasoline | 1989 09 | 1993 09 | 82 | 112 | 1372 | 4 | i.e. Turbo | 146A8.046 | Hatchback | Uno | |
| Fiat, Passenger Car EU | Uno | 1.5 | Gasoline | 1985 10 | 1993 12 | 55 | 75 | 1499 | 4 | i.e. | 149C1.000 | Hatchback | Uno | |
| Fiat, Passenger Car EU | Regata | 1.5 | Gasoline | 1983 12 | 1987 12 | 55 | 75 | 1498 | 4 | i.e. | 138B3.048 | Regata | ||
| Fiat, Passenger Car EU | Regata | 1.6 | Gasoline | 1984 09 | 1986 12 | 74 | 101 | 1585 | 4 | 149A4.000 | Estate | Regata | ||
| Fiat, Passenger Car EU | Fiorino | 1.4 | Gasoline | 1994 05 | 2001 05 | 49 | 67 | 1372 | 4 | 146D5.000 | Pick Up | Fiorino | ||
| Fiat, Passenger Car EU | Elba | 1.5 | Gasoline | 1986 04 | 1992 10 | 52 | 71 | 1499 | 4 | 149C1.000 | Estate | Elba | ||
| Fiat, Passenger Car EU | Elba | 1.6 | Gasoline | 1994 01 | 1996 12 | 69 | 94 | 1581 | 4 | Estate | Elba | |||
| Fiat, Passenger Car EU | Regata | 1.5 | Gasoline | 1986 12 | 1989 07 | 55 | 75 | 1498 | 4 | 138C2.048 | Estate | Regata | ||
| Fiat, Passenger Car EU | Ritmo | 1.5 | Gasoline | 1985 12 | 1987 12 | 66 | 90 | 1585 | 4 | i.e. | 138AR.000 | Hatchback | Ritmo | |
| Lancia, Passenger Car EU | Prisma | 1.5 | Gasoline | 1983 01 | 1986 04 | 63 | 86 | 1498 | 4 | 831A1.000 | Prisma | |||
| Lancia, Passenger Car EU | Delta | 1.5 | Gasoline | 1979 09 | 1992 12 | 63 | 86 | 1498 | 4 | 831A1.000 | Hatchback | Delta | ||
| Lancia, Passenger Car EU | Prisma | 1.5 | Gasoline | 1985 09 | 1992 02 | 55 | 75 | 1498 | 4 | 831B1.048 | Prisma | |||
| Lancia, Passenger Car EU | Delta | 1.5 | Gasoline | 1979 09 | 1992 12 | 63 | 86 | 1498 | 4 | 831B1.000 | Hatchback | Delta | ||
| Lancia, Passenger Car EU | Prisma | 1.5 | Gasoline | 1986 08 | 1992 02 | 59 | 80 | 1498 | 4 | 831B1.000 | Prisma | |||
| Lancia, Passenger Car EU | Dedra | 1.6 | Gasoline | 1994 10 | 1999 07 | 66 | 90 | 1581 | 4 | 159B9.000 | Estate | Dedra | ||
| Lancia, Passenger Car EU | Prisma | 1.5 | Gasoline | 1985 09 | 1992 02 | 55 | 75 | 1498 | 4 | 138C2.048 | Prisma | |||
| Lancia, Passenger Car EU | Delta | 1.6 | Gasoline | 1996 01 | 1999 08 | 76 | 103 | 1581 | 4 | i.e. | 182A4.000 | Hatchback | LE | Delta |
| Lancia, Passenger Car EU | Delta | 1.1 | Gasoline | 1986 01 | 1990 12 | 47 | 64 | 1116 | 4 | 831B8.000 | Hatchback | Delta | ||
| Innocenti, Passenger Car EU | Elba | 1.4 | Gasoline | 1994 09 | 1996 12 | 49 | 67 | 1372 | 4 | i.e. | 146C5.000 | Estate | Elba | |
| Innocenti, Passenger Car EU | Elba | 1.4 | Gasoline | 1994 09 | 1996 12 | 49 | 67 | 1372 | 4 | i.e. | 146D5.000 | Estate | Elba | |
| Innocenti, Passenger Car EU | Elba | 1.6 | Gasoline | 1994 09 | 1996 12 | 55 | 75 | 1580 | 4 | i.e. | 146D6.000 | Estate | Elba | |
| Innocenti, Passenger Car EU | Elba | 1.5 | Gasoline | 1992 08 | 1994 09 | 55 | 75 | 1498 | 4 | i.e. | 149C1.000 | Estate | Elba |
