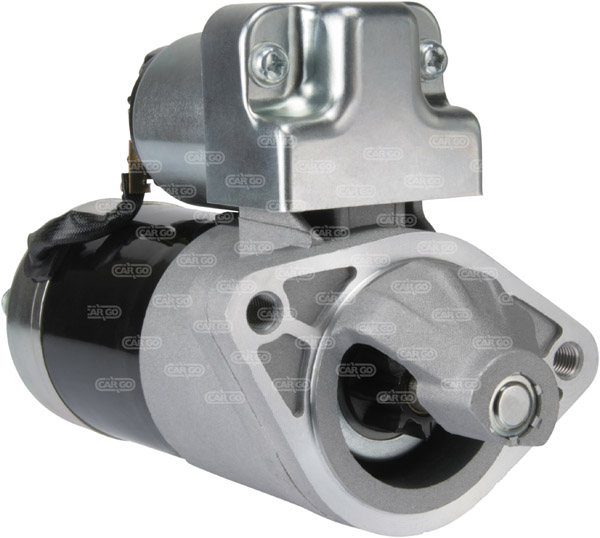

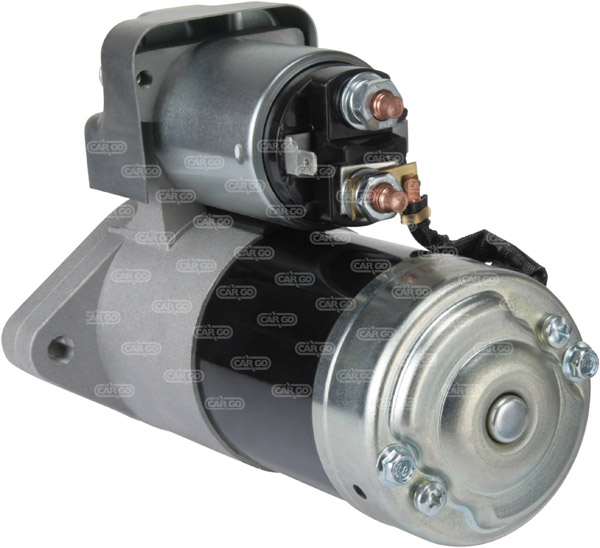

112300 - Starter (112300)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 12, kW 1.4, Mount. flange 66.00, Drive dist. 4.50, Dist./back 163.50, Dist./front 40.00, No. of teeth 8, B+ M8, Gear type GR, Dist. 100.00,
Rotation: CR, No./mount. holes 2 (2),
Drive Type: Steel,
Total Length: 208.00, Oil sealed No, Waterproof No

Electrical specifications (Starter)
Voltage 12
kW 1.4

Physical specifications (Starter)
A Mount. flange 66.00
B Drive dist. 4.50
F Dist./back 163.50
G Dist./front 40.00
H No. of teeth 8
I B+ M8
N Gear type GR
O Dist. 100.00
P Rotation CR
R Total length 208.00

Further information (Starter)
No./mount. holes 2 (2)
Drive type Steel
Oil sealed No
Waterproof No

Replacing
113585 CARGO
31100-65da0 SUZUKI
31100-67D10 SUZUKI
31100-67D20 SUZUKI
31100-77e10 SUZUKI
31100-77E11 SUZUKI
31100-77e20 SUZUKI
31100-77e22 SUZUKI
6840 FAE
M000T85681 MITSUBISHI

UNISTART Price: £96.61

Sorry, this item is out of stock.

The 112300 - Starter is shown in: Starters & Alternators > Starters , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Suzuki, Passenger Car EU Grand Vitara 2.7 Gasoline 2001 09 2003 07 127 173 2736 6 V6 H27A Grand Vitara
Suzuki, Passenger Car EU Grand Vitara 2.7 Gasoline 2003 04 2003 07 135 184 2736 6 H27A XL-7 Grand Vitara
Suzuki, Passenger Car EU Grand Vitara 2 Gasoline 1998 04 2005 08 103 140 1995 4 J20A 4x4 Grand Vitara
Suzuki, Passenger Car EU Vitara 2.5 Gasoline 1995 12 1998 03 118 160 2493 6 i 24V H25A Vitara
Suzuki, Passenger Car EU Vitara 2.5 Gasoline 1998 04 2003 07 106 144 2493 6 V6 24V H25A Vitara
Suzuki, Passenger Car EU Grand Vitara 2 Gasoline 2005 10 - 103 140 1995 4 J20A Grand Vitara
Suzuki, Passenger Car EU Vitara 2 Gasoline 1994 12 1998 03 100 136 1998 6 i H20A Lang Vitara
Suzuki, Passenger Car EU Grand Vitara 2.5 Gasoline 2001 04 2003 07 116 158 2493 6 V6 24V H25A Grand Vitara
Suzuki, Passenger cars US Grand Vitara 2.5 Gasoline 2003 01 2003 01 0 0 2500 V6 Grand Vitara
Suzuki, Passenger cars US Grand Vitara 2.5 Gasoline 2001 01 2002 01 0 0 2500 V6 Grand Vitara
Suzuki, Passenger cars US Grand Vitara 2.7 Gasoline 2001 01 2001 01 0 0 2737 V6 XL-7 Grand Vitara
Suzuki, Passenger cars US Vitara 1.6 Gasoline 1999 01 2001 01 0 0 1590 L4 Vitara
Suzuki, Passenger cars US Grand Vitara 2.5 Gasoline 1999 01 2000 01 0 0 2500 V6 Grand Vitara
Suzuki, Passenger cars US Vitara 2 Gasoline 1999 01 2000 01 0 0 2000 L4 Vitara
Suzuki, Passenger cars US Grand Vitara 2.7 Gasoline 2002 01 2002 01 0 0 2700 V6 XL-7 Grand Vitara
Chevrolet, Passenger cars US Tracker 1.6 Gasoline 1999 01 2000 01 0 0 1588 L4 Tracer
Chevrolet, Passenger cars US Tracker 2 Gasoline 1999 01 2003 01 0 0 0 L4 J20A Tracker
