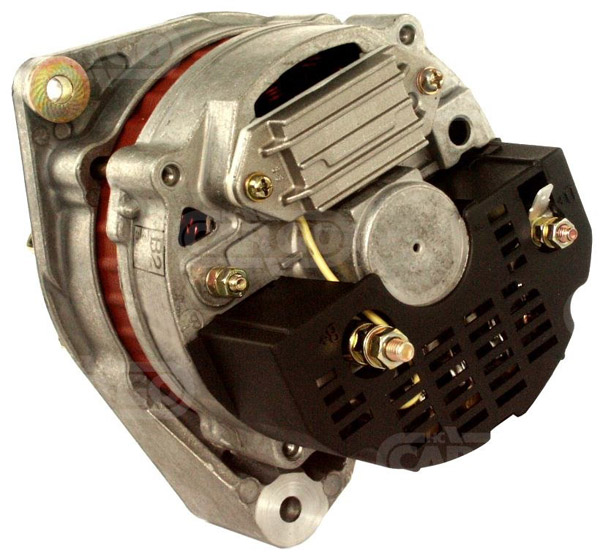

112310 - Alternator (112310)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 55,
Bracket Hole: 8.30, Belt. adj. bracket hole 8.30,
Width/Holder Arm: 50.70, Belt. adj. brackethole pos. 10, Belt. adj. brackethole pos. 50,
Pulley Dia.: 78.00,
Pulley Dist.: 74.00,
Grooves/Pulley: 1,
Radius: 86.00,
Radius: 80.00,
Radius: 80.00,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: EF, Pulley P, Belt. adj. bracket hole 8.30,
Total Length: 168.00, Source Mahle Letrika
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 55 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 8.30 | |||
| G | Belt. adj. bracket hole 8.30 | |||
| B | Width/holder arm 50.70 | |||
| E | Belt. adj. brackethole pos. 10 | |||
| E | Belt. adj. brackethole pos. 50 | |||
| H | Pulley dia. 78.00 | |||
| A | Pulley dist. 74.00 | |||
| i | Grooves/pulley 1 | |||
| j | Radius 86.00 | |||
| j | Radius 80.00 | |||
| j | Radius 80.00 | |||
| k | B+ position M6 | |||
| n | Rotation CR | |||
| o | Regulator plug PL_NA | |||
| G | Belt. adj. bracket hole 8.30 | |||
| R | Total length 168.00 | |||
| Source | Mahle Letrika | |||
Further information (Alternator) | ||||
| Blower | EF | |||
| Pulley | P | |||
Replacing | ||||
| 0120489533 | BOSCH | |||
| 0120489534 | BOSCH | |||
| 0986031070 | BOSCH | |||
| 11.201.146 | ISKRA | |||
| 11.201.230 | ISKRA | |||
| 9ar2715f | MOTOROLA | |||
| aak1151 | ISKRA | |||
| aak1193 | ISKRA | |||
UNISTART Price: £110.07
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BMW, Passenger Car EU | 3 | 2 | Gasoline | 1975 08 | 1977 08 | 80 | 109 | 1990 | 4 | M10B20 | 320 | |||
| BMW, Passenger Car EU | 3 | 1.6 | Gasoline | 1975 08 | 1980 08 | 66 | 90 | 1573 | 4 | M10B16 | 316 | |||
| BMW, Passenger Car EU | 5 | 1.8 | Gasoline | 1974 07 | 1981 05 | 66 | 90 | 1766 | 4 | M10B18 | 518 | |||
| Volvo BM, Agricultural | T | Diesel | - | 1975 01 | 0 | 0 | 0 | Diesel | TD50A | T810 | ||||
| Volvo BM, Agricultural | T | Diesel | - | 1975 01 | 0 | 0 | 0 | Diesel | D50A | T800 | ||||
| Volvo BM, Agricultural | T | Diesel | - | - | 0 | 0 | 0 | Diesel | TD50A | T814 |
