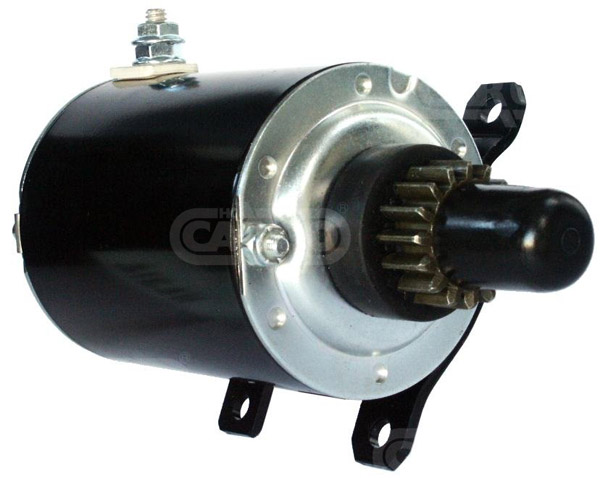

112312 - Starter (112312)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 12, kW 0.48, Drive dist. 44.20, Dist./back 103.00, Dist./front 61.00, No. of teeth 16, B+ 1/4" UNF, Gear type DD, Dist. 57.00, Dist. 2 87.00, Dist. 3 57.00, Dist. 4 87.00,
Rotation: ACR, No./mount. holes 4 (0),
Drive Type: Steel,
Total Length: 166.50, Oil sealed No, Waterproof No

Electrical specifications (Starter)
Voltage 12
kW 0.48

Physical specifications (Starter)
B Drive dist. 44.20
F Dist./back 103.00
G Dist./front 61.00
H No. of teeth 16
I B+ 1/4" UNF
N Gear type DD
O Dist. 57.00
O Dist. 2 87.00
O Dist. 3 57.00
O Dist. 4 87.00
P Rotation ACR
R Total length 166.50

Further information (Starter)
No./mount. holes 4 (0)
Drive type Steel
Oil sealed No
Waterproof No

Replacing
33306 TECUMSEH
33605 TECUMSEH
33606 TECUMSEH
35763 TECUMSEH
35763a TECUMSEH
36463 TECUMSEH
36680 TECUMSEH

UNISTART Price: £77.19

Sorry, this item is out of stock.

The 112312 - Starter is shown in: Starters & Alternators > Starters , Industrial > Starters.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Tecumseh, MOTOR Engine - - 0 0 0 TVM170 - TVM220
Tecumseh, MOTOR Engine - - 0 0 0 HM70 - HM100
Tecumseh, MOTOR Engine - - 0 0 0 OVXL120
Tecumseh, MOTOR Engine - - 0 0 0 OVM120
Tecumseh, MOTOR Engine - - 0 0 0 TVXL170 - TVXL220
Tecumseh, MOTOR Engine - - 0 0 0 TVM170 - TVM220
Tecumseh, MOTOR Engine - - 0 0 0 HM70 - HM100
Tecumseh, MOTOR Engine - - 0 0 0 OVXL120
Tecumseh, MOTOR Engine - - 0 0 0 OVM120
Tecumseh, MOTOR Engine - - 0 0 0 TVXL170 - TVXL220
Tecumseh, MOTOR Engine - - 0 0 0 TVM170 - TVM220
Tecumseh, MOTOR Engine - - 0 0 0 HM70 - HM100
Tecumseh, MOTOR Engine - - 0 0 0 OVM120
Tecumseh, MOTOR Engine - - 0 0 0 OVXL120
Tecumseh, MOTOR Engine - - 0 0 0 TVXL170 - TVXL220
