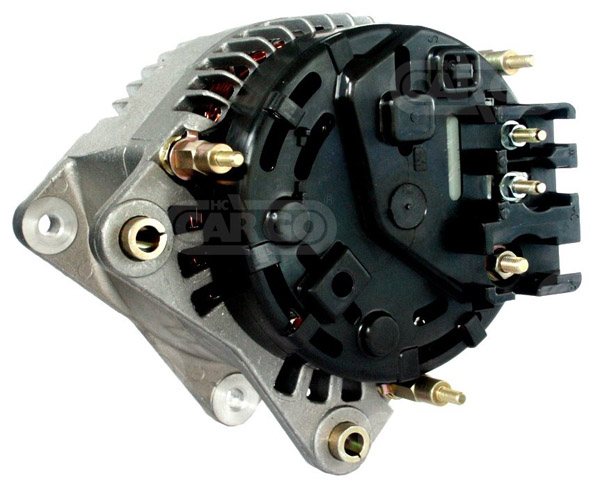

112324 - Alternator (112324)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 85, Terminal W,
Bracket Hole: 8.50, Belt. adj. bracket hole 8.50,
Width/Holder Arm: 14.20, Belt. adj. brackethole pos. 15,
Mount. Bracket Dist.: 69.80,
Pulley Dia.: 54.90,
Pulley Dist.: 39.50,
Grooves/Pulley: 6,
Radius: 86.00,
Radius: 86.00,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL70,
Blower: IF, Pulley SP,
Total Length: 188.00
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 85 | |||
| Terminal | W | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 8.50 | |||
| G | Belt. adj. bracket hole 8.50 | |||
| B | Width/holder arm 14.20 | |||
| E | Belt. adj. brackethole pos. 15 | |||
| C | Mount. bracket dist. 69.80 | |||
| H | Pulley dia. 54.90 | |||
| A | Pulley dist. 39.50 | |||
| i | Grooves/pulley 6 | |||
| j | Radius 86.00 | |||
| j | Radius 86.00 | |||
| k | B+ position M6 | |||
| n | Rotation CR | |||
| o | Regulator plug PL70 | |||
| R | Total length 188.00 | |||
Further information (Alternator) | ||||
| Blower | IF | |||
| Pulley | SP | |||
Replacing | ||||
| 54022468 | LUCAS | |||
| 63320317 | MAGNETI MARELLI | |||
| 63320347 | MAGNETI MARELLI | |||
| 63321434 | MAGNETI MARELLI | |||
| 633214434 | MAGNETI MARELLI | |||
| 63341434 | MAGNETI MARELLI | |||
| GNU2336 | ROVER GROUP | |||
| yle10083 | ROVER GROUP | |||
| yle101870 | ROVER GROUP | |||
UNISTART Price: £156.60
