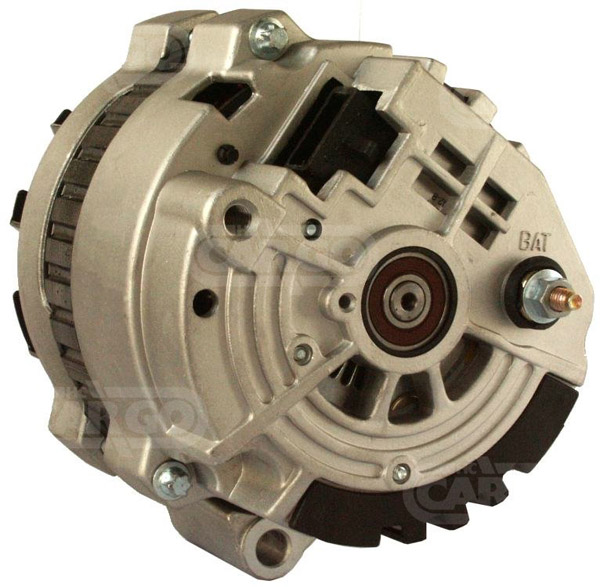

112337 - Alternator (112337)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 105,
Bracket Hole: 10.20, Belt. adj. bracket hole M8,
Width/Holder Arm: 50.70, Belt. adj. brackethole pos. 50,
Pulley Dia.: 57.00,
Pulley Dist.: 73.80,
Grooves/Pulley: 4,
Radius: 78.00,
Radius: 78.00,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL24,
Blower: EF, Pulley SP, Remarks Replacing: CS130.,
Total Length: 166.00
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 105 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 10.20 | |||
| G | Belt. adj. bracket hole M8 | |||
| B | Width/holder arm 50.70 | |||
| E | Belt. adj. brackethole pos. 50 | |||
| H | Pulley dia. 57.00 | |||
| A | Pulley dist. 73.80 | |||
| i | Grooves/pulley 4 | |||
| j | Radius 78.00 | |||
| j | Radius 78.00 | |||
| k | B+ position M6 | |||
| n | Rotation CR | |||
| o | Regulator plug PL24 | |||
| R | Total length 166.00 | |||
Further information (Alternator) | ||||
| Blower | EF | |||
| Pulley | SP | |||
| Remarks | Replacing: CS130. | |||
Replacing | ||||
| 10479993 | REMY (DELCO) | |||
| 1101582 | REMY (DELCO) | |||
| 1105710 | REMY (DELCO) | |||
UNISTART Price: £83.47
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Chevrolet, Passenger cars US | Astro | 4.3 | Gasoline | 1990 01 | 1991 01 | 0 | 0 | 0 | V6 | Astre | ||||
| Chevrolet, Passenger cars US | Astro | 4.3 | Gasoline | 1990 01 | 1994 01 | 0 | 0 | 0 | V6 | Astre | ||||
| Chevrolet, Passenger cars US | Blazer | 6.6 | Gasoline | 1976 01 | 1976 01 | 0 | 0 | 0 | V8 | Blazer | ||||
| Chevrolet, Passenger cars US | Astro | 4.3 | Gasoline | 1992 01 | 1998 01 | 0 | 0 | 0 | V6 | Astre | ||||
| Chevrolet, Passenger cars US | Astro | 4.3 | Gasoline | 1985 01 | - | 0 | 0 | 0 | V6 | Astre | ||||
| Chevrolet, Passenger cars US | Blazer | 6.6 | Gasoline | 1975 01 | - | 0 | 0 | 0 | V8 | Blazer | ||||
| Chevrolet, Passenger cars US | Blazer | 6.6 | Gasoline | 1977 01 | 1979 01 | 0 | 0 | 0 | V8 | Blazer | ||||
| Chevrolet, Passenger cars US | Blazer | 6.2 | Diesel | 1982 01 | 1991 01 | 0 | 0 | 0 | V8 | Blazer | ||||
| Chevrolet, Passenger cars US | Astro | 4.3 | Gasoline | 1999 01 | 2005 01 | 0 | 0 | 0 | V6 | Astre | ||||
| Chevrolet, Passenger cars US | Astro | 4.3 | Gasoline | 1986 01 | 1989 01 | 0 | 0 | 0 | V6 | Astre | ||||
| Chevrolet, Passenger cars AO | C-K Serie | 4.3 | Gasoline | 1988 09 | 1994 09 | 106 | 144 | 4296 | 6 | Pick Up | C-K Serie | |||
| Chevrolet, Passenger cars AO | Astro | 4.3 | Gasoline | 1984 10 | 1985 09 | 103 | 140 | 4296 | 6 | Van | Astro | |||
| Chevrolet, Passenger cars AO | Astro | 4.3 | Gasoline | 1994 10 | - | 142 | 193 | 4296 | 6 | Van | Astro | |||
| Chevrolet, Passenger cars AO | C-K Serie | 4.3 | Gasoline | 1988 09 | 1994 09 | 106 | 144 | 4296 | 6 | Pick Up | AWD | C-K Serie | ||
| Chevrolet, Passenger cars AO | Astro | 4.3 | Gasoline | 1994 10 | - | 142 | 193 | 4296 | 6 | Bus | Astro | |||
| Chevrolet, Passenger cars AO | Astro | 4.3 | Gasoline | 1994 10 | 1995 09 | 127 | 173 | 4296 | 6 | Van | Astro | |||
| Chevrolet, Passenger Car EU | Blazer | 4.3 | Gasoline | 1988 09 | 1994 08 | 115 | 156 | 4300 | 6 | V6 | LB4 | Blazer S | ||
| GMC, Passenger cars US | Safari | 4.3 | Gasoline | 1986 01 | 1989 01 | 0 | 0 | 0 | V6 | Safari |
