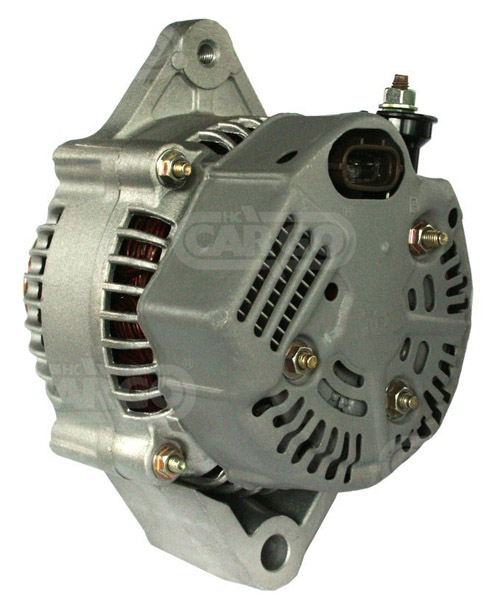

112357 - Alternator (112357)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 70,
Bracket Hole: 10.50, Belt. adj. bracket hole M8,
Width/Holder Arm: 58.00, Belt. adj. brackethole pos. 59,
Pulley Dia.: 55.00,
Pulley Dist.: 90.00,
Grooves/Pulley: 5,
Radius: 78.00,
Radius: 83.00,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL42,
Blower: IF, Pulley SP,
Total Length: 167.00

Electrical specifications (Alternator)
Voltage 14
Amp 70

Physical specifications (Alternator)
D Bracket hole 10.50
G Belt. adj. bracket hole M8
B Width/holder arm 58.00
E Belt. adj. brackethole pos. 59
H Pulley dia. 55.00
A Pulley dist. 90.00
i Grooves/pulley 5
j Radius 78.00
j Radius 83.00
k B+ position M6
n Rotation CR
o Regulator plug PL42
R Total length 167.00

Further information (Alternator)
Blower IF
Pulley SP

Replacing
101211-0520 DENSO
101211-0521 DENSO
101211-0522 DENSO
102211-5050 DENSO
102211-5051 DENSO
102211-5052 DENSO
27060-75100 TOYOTA
27060-75150 TOYOTA

UNISTART Price: £108.58

Sorry, this item is out of stock.

The 112357 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1995 08 1998 04 85 115 2438 4 2RZ-E Bus Hiace
Toyota, Passenger Car EU Hiace 2.4 Diesel 1995 08 2006 08 61 83 2446 4 Diesel 2L Van Hiace
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1995 08 1998 04 85 116 2438 4 2RZ-E Bus 4WD Hiace
Toyota, Passenger Car EU Hiace 2.7 Gasoline 1998 04 2006 08 105 143 2694 4 3RZ-FE Van 4WD Hiace
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1995 08 1998 04 85 116 2438 4 2RZ-E Van Hiace
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1995 08 1998 04 85 116 2438 4 2RZ-E Van 4WD Hiace
Toyota, Passenger Car EU Hiace 2.7 Gasoline 1998 04 2006 08 105 143 2694 4 3RZ-FE Van Hiace
Toyota, Passenger Car EU Hiace 2.7 Gasoline 2001 11 - 106 144 2694 4 3RZ-FE Bus 4WD Hiace
Toyota, Passenger Car EU Hiace 2.7 Gasoline 1998 04 2001 11 105 143 2694 4 3RZ-FE Bus Hiace
Toyota, Passenger Car EU Hiace 2.7 Gasoline 1998 04 2006 08 105 143 2694 4 3RZ-FE Bus 4WD Hiace
Toyota, Passenger Car EU Hiace 2.4 Diesel 1995 08 2006 08 61 83 2446 4 Diesel 2L Platform / Chassis Hiace
Toyota, Passenger Car EU Hiace 2.4 Diesel 1999 07 2006 08 55 75 2446 4 Diesel 2L Platform / Chassis Hiace
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1995 08 1998 04 85 115 2438 4 2RZ-E Bus Hiace
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1995 08 1998 04 85 116 2438 4 2RZ-E Bus 4WD Hiace
Toyota, Passenger Car EU Hiace 2.4 Diesel 1995 08 2006 08 61 83 2446 4 Diesel 2L Van Hiace
Toyota, Passenger Car EU Hiace 2.7 Gasoline 1998 04 2006 08 105 143 2694 4 3RZ-FE Van 4WD Hiace
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1995 08 1998 04 85 116 2438 4 2RZ-E Van Hiace
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1995 08 1998 04 85 116 2438 4 2RZ-E Van 4WD Hiace
Toyota, Passenger Car EU Hiace 2.7 Gasoline 1998 04 2006 08 105 143 2694 4 3RZ-FE Van Hiace
Toyota, Passenger Car EU Hiace 2.7 Gasoline 2001 11 - 106 144 2694 4 3RZ-FE Bus 4WD Hiace
Toyota, Passenger Car EU Hiace 2.7 Gasoline 1998 04 2001 11 105 143 2694 4 3RZ-FE Bus Hiace
Toyota, Passenger Car EU Hiace 2.7 Gasoline 1998 04 2006 08 105 143 2694 4 3RZ-FE Bus 4WD Hiace
Toyota, Passenger Car EU Hiace 2.4 Diesel 1995 08 2006 08 61 83 2446 4 Diesel 2L Platform / Chassis Hiace
Toyota, Passenger Car EU Hiace 2.4 Diesel 1999 07 2006 08 55 75 2446 4 Diesel 2L Platform / Chassis Hiace
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1995 08 1998 04 85 116 2438 4 2RZ-E Bus 4WD Hiace
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1995 08 1998 04 85 116 2438 4 2RZ-E Van 4WD Hiace
Toyota, Passenger Car EU Hiace 2.7 Gasoline 2001 11 - 106 144 2694 4 3RZ-FE Bus 4WD Hiace
Toyota, Passenger Car EU Hiace 2.4 Diesel 1995 08 2006 08 61 83 2446 4 Diesel 2L Platform / Chassis Hiace
Toyota, Passenger Car EU Hiace 2.4 Diesel 1999 07 2006 08 55 75 2446 4 Diesel 2L Platform / Chassis Hiace
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1995 08 1998 04 85 115 2438 4 2RZ-E Bus Hiace
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1995 08 1998 04 85 116 2438 4 2RZ-E Bus 4WD Hiace
Toyota, Passenger Car EU Hiace 2.4 Diesel 1995 08 2006 08 61 83 2446 4 Diesel 2L Van Hiace
Toyota, Passenger Car EU Hiace 2.7 Gasoline 1998 04 2006 08 105 143 2694 4 3RZ-FE Van 4WD Hiace
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1995 08 1998 04 85 116 2438 4 2RZ-E Van Hiace
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1995 08 1998 04 85 116 2438 4 2RZ-E Van 4WD Hiace
Toyota, Passenger Car EU Hiace 2.7 Gasoline 1998 04 2006 08 105 143 2694 4 3RZ-FE Van Hiace
Toyota, Passenger Car EU Hiace 2.7 Gasoline 2001 11 - 106 144 2694 4 3RZ-FE Bus 4WD Hiace
Toyota, Passenger Car EU Hiace 2.7 Gasoline 1998 04 2001 11 105 143 2694 4 3RZ-FE Bus Hiace
Toyota, Passenger Car EU Hiace 2.7 Gasoline 1998 04 2006 08 105 143 2694 4 3RZ-FE Bus 4WD Hiace
Toyota, Passenger Car EU Hiace 2.4 Diesel 1995 08 2006 08 61 83 2446 4 Diesel 2L Platform / Chassis Hiace
Toyota, Passenger Car EU Hiace 2.4 Diesel 1999 07 2006 08 55 75 2446 4 Diesel 2L Platform / Chassis Hiace
