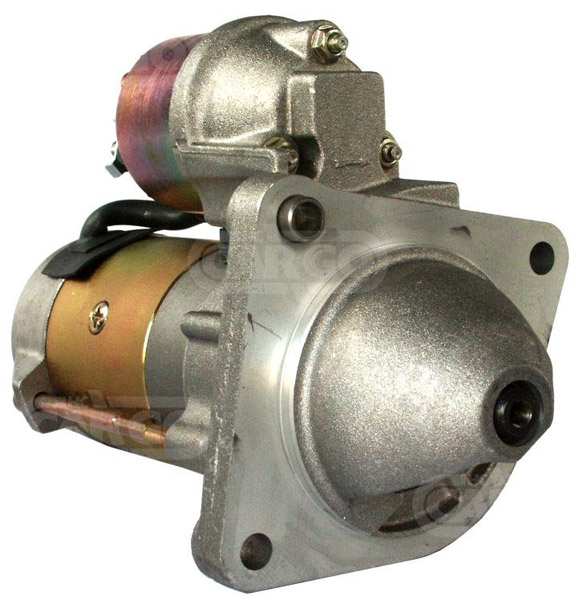

112379 - Starter (112379)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.

Voltage: 12, kW 1.8, Mount. flange 77.00, Drive dist. 10.00, Dist./back 176.10, Dist./front 45.0, No. of teeth 11, B+ M8, Gear type GR, Dist. 115.30, Dist. 2 82.55, Dist. 3 81.00,
Rotation: CR, No./mount. holes 3 (0), Clutch type Wet,
Drive Type: Steel,
Total Length: 221.35, Oil sealed No, Waterproof No, Info NOTE !! CANNOT replace Bosch 0001109048 and 0001108204. The Bosch numbers have a new Cargo reference Cargoref# 114321

Electrical specifications (Starter)
Voltage	12
kW	1.8

Physical specifications (Starter)
A	Mount. flange 77.00
B	Drive dist. 10.00
F	Dist./back 176.10
G	Dist./front 45.0
H	No. of teeth 11
I	B+ M8
N	Gear type GR
O	Dist. 115.30
O	Dist. 2 82.55
O	Dist. 3 81.00
P	Rotation CR
R	Total length 221.35

Further information (Starter)
No./mount.	holes 3 (0)
Clutch	type Wet
Drive	type Steel
Oil	sealed No
Waterproof	No
Info	NOTE !! CANNOT replace Bosch 0001109048 and 0001108204. The Bosch numbers have a new Cargo reference Cargoref# 114321

Replacing
063113003000	MAKO
063113003010	MAGNETI MARELLI
11.130.996	ISKRA
46522234	FIAT
63113003	MAGNETI MARELLI
63113003	MAKO
aze2110	ISKRA

UNISTART Price: £99.42
