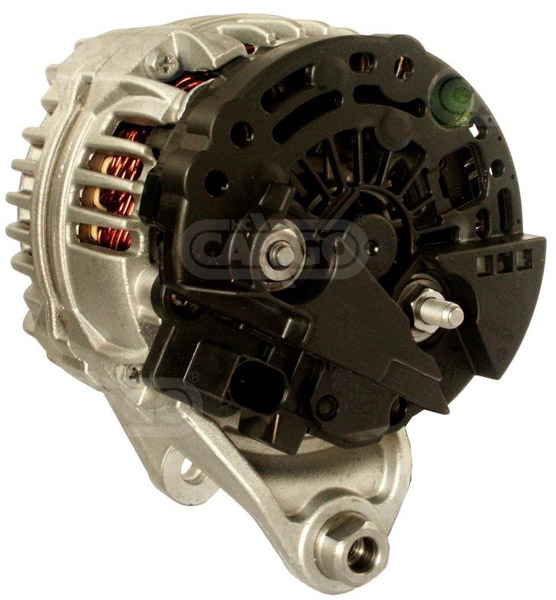

112399 - Alternator (112399)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 90,
Bracket Hole: 10.50, Belt. adj. bracket hole 9.00,
Width/Holder Arm: 14.00, Belt. adj. brackethole pos. 50,
Mount. Bracket Dist.: 82.50,
Pulley Dia.: 56.00,
Pulley Dist.: 34.65,
Grooves/Pulley: 5,
Radius: 92.00,
Radius: 93.25,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL61,
Blower: IF, Pulley SP,
Total Length: 163.50, Source Valeo

Electrical specifications (Alternator)
Voltage 14
Amp 90

Physical specifications (Alternator)
D Bracket hole 10.50
G Belt. adj. bracket hole 9.00
B Width/holder arm 14.00
E Belt. adj. brackethole pos. 50
C Mount. bracket dist. 82.50
H Pulley dia. 56.00
A Pulley dist. 34.65
i Grooves/pulley 5
j Radius 92.00
j Radius 93.25
k B+ position M8
n Rotation CR
o Regulator plug PL61
R Total length 163.50
Source Valeo

Further information (Alternator)
Blower IF
Pulley SP

Replacing
0124325017 BOSCH
0124325019 BOSCH
0124325025 BOSCH
038903018EX VOLKSWAGEN
06b903016a VOLKSWAGEN
06b903016d VOLKSWAGEN
2542225 VALEO
2542225A VALEO
2542225B VALEO
sg9b010 VALEO

UNISTART Price: £190.98

Sorry, this item is out of stock.

The 112399 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Audi, Passenger Car EU A4 1.8 Gasoline 1999 04 2000 10 92 125 1781 4 APT A4
Audi, Passenger Car EU A4 1.8 Gasoline 1994 11 1999 04 92 125 1781 4 ADR Quattro A4
Audi, Passenger Car EU A4 1.6 Gasoline 1998 08 2000 06 74 100 1595 4 ANA Estate A4
Audi, Passenger Car EU A4 1.6 Gasoline 1998 08 1999 07 74 100 1595 4 ARM Estate A4
Audi, Passenger Car EU A4 1.8 Gasoline 1998 08 1999 07 110 150 1781 4 Turbo ARK Estate A4
Audi, Passenger Car EU A4 1.8 Gasoline 2000 06 2001 09 110 150 1781 4 Turbo AWT Estate Quattro A4
Audi, Passenger Car EU A4 2.8 Gasoline 1999 07 2000 10 142 193 2771 6 AMX Quattro A4
Audi, Passenger Car EU A4 2.8 Gasoline 1998 08 2000 06 142 193 2771 6 AQD Estate Quattro A4
Audi, Passenger Car EU A6 1.8 Gasoline 1997 02 2005 01 110 150 1781 4 Turbo APU Quattro A6
Audi, Passenger Car EU A6 1.8 Gasoline 1997 02 2005 01 110 150 1781 4 Turbo ANB Quattro A6
Audi, Passenger Car EU A6 1.8 Gasoline 1999 01 2005 01 110 150 1781 4 Turbo ANB A6
Audi, Passenger Car EU A6 1.8 Gasoline 1997 12 2005 01 110 150 1781 4 Turbo APU Estate Quattro A6
Audi, Passenger Car EU A6 2.7 Gasoline 1999 02 2000 08 169 230 2671 6 AJK Estate Quattro A6
Audi, Passenger Car EU A4 1.6 Gasoline 2000 07 2001 09 75 102 1595 4 ALZ Estate A4
Audi, Passenger Car EU A4 1.8 Gasoline 1995 07 2001 09 85 115 1781 4 AFY Estate Quattro A4
Audi, Passenger Car EU A4 1.8 Gasoline 1997 12 2001 09 132 180 1781 4 Turbo AJL Estate Quattro A4
Audi, Passenger Car EU A6 2.4 Gasoline 1998 08 1999 07 115 156 2393 6 APC Quattro A6
Audi, Passenger Car EU A4 1.6 Gasoline 1998 08 1999 07 74 100 1595 4 ARM A4
Audi, Passenger Car EU A4 1.8 Gasoline 2000 06 2000 11 92 125 1781 4 AVV A4
Audi, Passenger Car EU A4 2.8 Gasoline 1996 10 2001 09 142 193 2771 6 AMX Estate Quattro A4
Audi, Passenger Car EU A3 1.8 Gasoline 1996 09 2003 05 92 125 1781 4 AGN Hatchback A3
Audi, Passenger Car EU A4 1.6 Gasoline 1996 10 1999 07 74 100 1595 4 AHL Estate A4
Audi, Passenger Car EU A4 2.8 Gasoline 1999 02 2000 06 142 193 2771 6 APR Quattro A4
Audi, Passenger Car EU A6 1.8 Gasoline 1997 02 2005 01 110 150 1781 4 Turbo ARK Quattro A6
Audi, Passenger Car EU A6 1.8 Gasoline 2000 05 2005 01 110 150 1781 4 Turbo AWT A6
Audi, Passenger Car EU A6 1.8 Gasoline 1998 11 2005 01 110 150 1781 4 Turbo APU A6
Audi, Passenger Car EU A6 1.8 Gasoline 1997 07 2005 01 92 125 1781 4 AJP A6
Audi, Passenger Car EU A6 1.8 Gasoline 1997 12 2005 01 92 125 1781 4 AJP Estate A6
Audi, Passenger Car EU A6 2.8 Gasoline 1997 12 1999 01 142 193 2771 6 ALG Estate A6
Audi, Passenger Car EU A6 2.7 Gasoline 1997 12 2000 08 169 230 2671 6 AJK Quattro A6
Audi, Passenger Car EU A6 1.8 Gasoline 1997 12 2005 01 132 180 1781 4 Turbo AJL Quattro A6
Audi, Passenger Car EU A6 1.8 Gasoline 1999 04 2005 01 132 180 1781 4 Turbo AJL Estate A6
Audi, Passenger Car EU A6 1.8 Gasoline 1998 02 2005 01 85 116 1781 4 AFY A6
Audi, Passenger Car EU A4 1.8 Gasoline 1994 11 1999 04 92 125 1781 4 ADR Estate A4
Audi, Passenger Car EU A4 1.8 Gasoline 1999 04 1999 07 92 125 1781 4 APT Estate A4
Audi, Passenger Car EU A4 1.8 Gasoline 2000 06 2001 09 92 125 1781 4 AVV Estate A4
Audi, Passenger Car EU A4 1.8 Gasoline 1999 05 2000 06 110 150 1781 4 Turbo ANB Estate A4
Audi, Passenger Car EU A4 1.8 Gasoline 1999 02 2001 09 110 150 1781 4 Turbo APU Estate Quattro A4
Audi, Passenger Car EU A4 1.8 Gasoline 1998 08 1999 07 110 150 1781 4 Turbo ARK A4
Audi, Passenger Car EU A4 1.8 Gasoline 1999 05 2000 06 110 150 1781 4 Turbo ANB A4
Audi, Passenger Car EU A4 1.8 Gasoline 2000 06 2000 11 110 150 1781 4 Turbo AWT A4
Audi, Passenger Car EU A4 1.8 Gasoline 1999 02 2000 11 92 125 1781 4 APT Quattro A4
Audi, Passenger Car EU A4 1.8 Gasoline 1999 07 2000 06 110 150 1781 4 Turbo ANB Quattro A4
Audi, Passenger Car EU A4 1.8 Gasoline 2000 06 2000 11 110 150 1781 4 Turbo AWT Quattro A4
Audi, Passenger Car EU A4 1.8 Gasoline 1995 01 2000 11 95 129 1781 4 ADR A4
Audi, Passenger Car EU A6 1.8 Gasoline 1997 01 2005 01 110 150 1781 4 Turbo AEB A6
Audi, Passenger Car EU A6 1.8 Gasoline 1999 01 2005 01 110 150 1781 4 Turbo ARK A6
Audi, Passenger Car EU A6 2.4 Gasoline 1997 04 2005 01 121 165 2393 6 AML A6
Audi, Passenger Car EU A6 2.4 Gasoline 1998 11 2005 01 121 165 2393 6 AML Quattro A6
Audi, Passenger Car EU A6 2.8 Gasoline 1998 11 2001 04 142 193 2771 6 AQD A6
Audi, Passenger Car EU A6 1.8 Gasoline 1997 12 2005 01 110 150 1781 4 AEB Estate A6
Audi, Passenger Car EU A6 1.8 Gasoline 1997 12 2005 01 110 150 1781 4 Turbo AEB Estate Quattro A6
Audi, Passenger Car EU A6 1.8 Gasoline 1997 12 2005 01 110 150 1781 4 Turbo ANB Estate Quattro A6
Audi, Passenger Car EU A6 2.4 Gasoline 1997 12 2005 01 121 165 2393 6 AML Estate Quattro A6
Audi, Passenger Car EU A4 1.6 Gasoline 2000 07 2000 11 75 102 1595 4 ALZ A4
Audi, Passenger Car EU A4 1.8 Gasoline 1997 12 2000 11 132 180 1781 4 Turbo AJL Quattro A4
Audi, Passenger Car EU A4 1.8 Gasoline 1997 12 2000 11 132 180 1781 4 Turbo AJL A4
Audi, Passenger Car EU A6 1.8 Gasoline 1997 12 2005 01 132 180 1781 4 Turbo AJL A6
Audi, Passenger Car EU A4 2.4 Gasoline 2000 06 2000 11 120 163 2393 6 AMM A4
Audi, Passenger Car EU A6 2.4 Gasoline 1998 08 2001 05 115 156 2393 6 APC Estate Quattro A6
Audi, Passenger Car EU A4 1.8 Gasoline 1994 11 1999 04 92 125 1781 4 ADR A4
Audi, Passenger Car EU A4 1.8 Gasoline 1998 08 1999 07 110 150 1781 4 Turbo APU A4
Audi, Passenger Car EU A4 1.8 Gasoline 1999 02 2000 11 110 150 1781 4 Turbo APU Quattro A4
Audi, Passenger Car EU A4 1.8 Gasoline 1998 08 1999 07 110 150 1781 4 Turbo APU Estate A4
Audi, Passenger Car EU A4 1.8 Gasoline 2000 06 2000 10 110 150 1781 4 Turbo AWT Estate A4
Audi, Passenger Car EU A4 1.8 Gasoline 1998 08 2000 06 92 125 1781 4 ARG Estate Quattro A4
Audi, Passenger Car EU A6 2.8 Gasoline 1997 06 1999 01 142 193 2771 6 ALG Quattro A6
Audi, Passenger Car EU A6 2.8 Gasoline 1998 11 2001 05 142 193 2771 6 AQD Quattro A6
Audi, Passenger Car EU A6 1.8 Gasoline 1997 12 2005 01 110 150 1781 4 APU Estate A6
Audi, Passenger Car EU A6 1.8 Gasoline 1997 12 2005 01 110 150 1781 4 ARK Estate A6
Audi, Passenger Car EU A6 2.8 Gasoline 2000 06 2001 04 142 193 2771 6 AMX Estate A6
Audi, Passenger Car EU A6 1.8 Gasoline 1997 12 2005 01 110 150 1781 4 Turbo ARK Estate Quattro A6
Audi, Passenger Car EU A6 2.7 Gasoline 1999 02 2001 05 169 230 2671 6 AJK A6
Audi, Passenger Car EU A6 1.8 Gasoline 1997 12 2005 01 132 180 1781 4 Turbo AJL Estate Quattro A6
Audi, Passenger Car EU A4 1.8 Gasoline 1995 04 2000 11 85 115 1781 4 AFY A4
Audi, Passenger Car EU A4 1.8 Gasoline 1995 07 2000 11 85 115 1781 4 AFY Quattro A4
Audi, Passenger Car EU A6 2.8 Gasoline 1997 10 1998 07 132 180 2771 6 AGE A6
Audi, Passenger Car EU A4 1.8 Gasoline 1998 08 1999 07 92 125 1781 4 ARG Estate A4
Audi, Passenger Car EU A4 1.8 Gasoline 1998 08 1998 12 110 150 1781 4 Turbo ARK Estate Quattro A4
Audi, Passenger Car EU A4 1.8 Gasoline 1999 07 2000 06 110 150 1781 4 Turbo ANB Estate Quattro A4
Audi, Passenger Car EU A4 1.6 Gasoline 1996 10 1999 07 74 100 1595 4 AHL A4
Audi, Passenger Car EU A4 1.6 Gasoline 1998 08 2000 07 74 100 1595 4 ANA A4
Audi, Passenger Car EU A4 1.8 Gasoline 1998 08 2000 10 92 125 1781 4 ARG A4
Audi, Passenger Car EU A4 1.8 Gasoline 1999 02 2000 06 92 125 1781 4 ARG Quattro A4
Audi, Passenger Car EU A4 1.8 Gasoline 1998 07 1999 07 110 150 1781 4 Turbo ARK Quattro A4
Audi, Passenger Car EU A4 2.8 Gasoline 1999 02 2000 06 142 193 2771 6 AQD Quattro A4
Audi, Passenger Car EU A4 2.8 Gasoline 1999 02 2000 06 142 193 2771 6 APR Estate Quattro A4
Audi, Passenger Car EU A6 1.8 Gasoline 1997 02 2005 01 110 150 1781 4 Turbo AEB Quattro A6
Audi, Passenger Car EU A6 1.8 Gasoline 1997 02 2005 01 110 150 1781 4 Turbo AWT Quattro A6
Audi, Passenger Car EU A6 2.8 Gasoline 1997 06 1999 01 142 193 2771 6 ALG A6
Audi, Passenger Car EU A6 2.8 Gasoline 1997 06 1999 01 142 193 2771 6 ALG Estate Quattro A6
Audi, Passenger Car EU A6 1.8 Gasoline 1997 12 2005 01 110 150 1781 4 ANB Estate A6
Audi, Passenger Car EU A4 1.8 Gasoline 1995 07 2001 09 85 115 1781 4 AFY Estate A4
Audi, Passenger Car EU A4 1.8 Gasoline 1997 12 2001 09 132 180 1781 4 Turbo AJL Estate A4
Audi, Passenger Car EU A6 1.8 Gasoline 1998 02 2005 01 85 116 1781 4 AFY Estate A6
VW, Passenger Car EU Passat 1.8 Gasoline 1996 10 2000 11 110 150 1781 4 Turbo APU Passat
VW, Passenger Car EU Passat 1.8 Gasoline 1996 10 2000 11 110 150 1781 4 Turbo ANB Passat
VW, Passenger Car EU Passat 2.8 Gasoline 1997 06 2000 11 142 193 2771 6 ALG Estate Syncro 4 Motion Passat
VW, Passenger Car EU Passat 1.8 Gasoline 1996 10 2000 11 92 125 1781 4 ADR Syncro 4 Motion Passat
VW, Passenger Car EU Passat 1.8 Gasoline 1996 10 2000 11 92 125 1781 4 APT Syncro 4 Motion Passat
VW, Passenger Car EU Passat 1.8 Gasoline 1997 06 2000 11 92 125 1781 4 APT Estate Syncro 4 Motion Passat
VW, Passenger Car EU Passat 1.8 Gasoline 1997 06 2000 11 92 125 1781 4 ADR Estate Passat
VW, Passenger Car EU Passat 1.8 Gasoline 1997 06 2000 11 110 150 1781 4 Turbo ANB Estate Passat
VW, Passenger Car EU Passat 2.3 Gasoline 1997 10 2000 11 110 150 2324 5 VR5 AGZ Estate Syncro 4 Motion Passat
VW, Passenger Car EU Passat 2.5 Diesel 2000 11 2005 05 110 150 2496 6 TDi AFB Estate 4 Motion Passat
VW, Passenger Car EU Passat 2.3 Gasoline 2000 11 2005 05 125 170 2324 5 VR5 AZX Estate 4 Motion Passat
VW, Passenger Car EU Passat 1.8 Gasoline 1996 10 2000 11 92 125 1781 4 APT Passat
VW, Passenger Car EU Passat 2.3 Gasoline 1996 10 2000 11 110 150 2324 5 VR5 AGZ Passat
VW, Passenger Car EU Passat 2.8 Gasoline 1996 10 2000 11 142 193 2771 6 ALG Syncro 4 Motion Passat
VW, Passenger Car EU Passat 1.6 Gasoline 1997 06 2000 11 74 101 1595 4 AHL Estate Passat
VW, Passenger Car EU Passat 1.6 Gasoline 1997 06 2000 11 74 101 1595 4 ANA Estate Passat
VW, Passenger Car EU Passat 1.8 Gasoline 1997 06 2000 11 92 125 1781 4 APT Estate Passat
VW, Passenger Car EU Passat 1.6 Gasoline 2000 11 2005 05 75 102 1595 4 ALZ Estate Passat
VW, Passenger Car EU Passat 2.3 Gasoline 2000 11 2005 05 125 170 2327 5 VR5 AZX Estate Passat
VW, Passenger Car EU Passat 1.8 Gasoline 2000 11 2005 05 110 150 1781 4 Turbo 20V AWT Passat
VW, Passenger Car EU Passat 1.8 Gasoline 2000 11 2005 05 110 150 1781 4 Turbo 20V AWT Estate Passat
VW, Passenger Car EU Passat 2.8 Gasoline 1999 09 2000 11 140 190 2771 6 ATX Passat
VW, Passenger Car EU Passat 1.8 Gasoline 2001 02 2005 05 125 170 1781 4 Turbo AWM Passat
VW, Passenger Car EU Passat 1.6 Gasoline 1996 10 2000 11 74 101 1595 4 ARM Passat
VW, Passenger Car EU Passat 1.8 Gasoline 1996 10 2000 11 92 125 1781 4 ADR Passat
VW, Passenger Car EU Passat 1.8 Gasoline 1997 06 2000 11 92 125 1781 4 ARG Estate Passat
VW, Passenger Car EU Passat 2.3 Gasoline 1997 06 2000 11 110 150 2324 5 VR5 AGZ Estate Passat
VW, Passenger Car EU Passat 1.8 Gasoline 1997 06 2000 11 110 150 1781 4 Turbo AEB Estate Passat
VW, Passenger Car EU Passat 2.3 Gasoline 1997 10 2000 11 110 150 2324 5 VR5 AGZ Syncro 4 Motion Passat
VW, Passenger Car EU Passat 2.8 Gasoline 1999 09 2000 11 140 190 2771 6 ATX Estate 4 Motion Passat
VW, Passenger Car EU Passat 2 Gasoline 2000 11 2005 05 85 115 1984 4 AZM 4 Motion Passat
VW, Passenger Car EU Passat 2.3 Gasoline 2000 11 2005 05 125 170 2324 5 V5 AZX Passat
VW, Passenger Car EU Passat 2 Gasoline 2000 11 2005 05 85 115 1984 4 AZM Passat
VW, Passenger Car EU Passat 1.8 Gasoline 1996 10 2000 11 110 150 1781 4 Turbo AEB Passat
VW, Passenger Car EU Passat 1.8 Gasoline 1997 06 2000 11 92 125 1781 4 ARG Estate Syncro 4 Motion Passat
VW, Passenger Car EU Passat 1.6 Gasoline 1997 06 2000 11 74 101 1595 4 ADP Estate Passat
VW, Passenger Car EU Passat 1.8 Gasoline 1997 01 2000 11 85 115 1781 4 AFY Passat
VW, Passenger Car EU Passat 2 Gasoline 2001 11 2005 05 96 130 1984 4 ALT Passat
VW, Passenger Car EU Passat 1.6 Gasoline 1996 10 2000 11 74 101 1595 4 AHL Passat
VW, Passenger Car EU Passat 1.8 Gasoline 1996 10 2000 11 92 125 1781 4 ARG Passat
VW, Passenger Car EU Passat 1.8 Gasoline 1996 10 2000 11 92 125 1781 4 ARG Syncro 4 Motion Passat
VW, Passenger Car EU Passat 1.8 Gasoline 1997 06 2000 11 92 125 1781 4 ADR Estate Syncro 4 Motion Passat
VW, Passenger Car EU Passat 2.8 Gasoline 1996 08 2000 11 142 193 2771 6 AHA Passat
VW, Passenger Car EU Passat 1.6 Gasoline 2000 11 2005 05 75 102 1595 4 ALZ Passat
VW, Passenger Car EU Passat 1.8 Gasoline 1997 06 2000 11 85 115 1781 4 AFY Estate Passat
VW, Passenger Car EU Passat 2.5 Diesel 2000 11 2005 05 110 150 2496 6 TDi AKN Estate 4 Motion Passat
Audi, Passenger cars US A4 1.8 Gasoline 2002 01 2003 01 0 0 1781 L4 Turbo AMB Quattro A4
Audi, Passenger cars US A4 1.8 Gasoline 2001 01 2001 01 0 0 1781 L4 Turbo AWM Estate Quattro A4
Audi, Passenger cars US A4 1.8 Gasoline 2002 01 2003 01 0 0 1781 L4 Turbo AMB Estate Quattro A4
Audi, Passenger cars US A4 1.8 Gasoline 2000 01 2000 01 0 0 1781 L4 Turbo ATW A4
Audi, Passenger cars US A4 2.8 Gasoline 2001 01 2001 01 0 0 2771 V6 ATQ Estate Quattro A4
Audi, Passenger cars US A4 1.8 Gasoline 2001 01 2001 01 0 0 1781 L4 Turbo AWM Quattro A4
Audi, Passenger cars US A4 1.8 Gasoline 2002 01 2003 01 0 0 1781 L4 Turbo AMB A4
Audi, Passenger cars US A4 1.8 Gasoline 2001 01 2001 01 0 0 1781 L4 Turbo AWM A4
Audi, Passenger cars US A4 1.8 Gasoline 2000 01 2000 01 0 0 1781 L4 Turbo ATW Quattro A4
Audi, Passenger cars US A4 1.8 Gasoline 2000 01 2000 01 0 0 1781 L4 Turbo ATW Estate Quattro A4
Audi, Passenger cars US A4 2.8 Gasoline 2001 01 2001 01 0 0 2771 V6 ATQ Quattro A4
Audi, Passenger cars US A4 1.8 Gasoline 2001 01 2001 01 0 0 1781 L4 Turbo AWM Estate Quattro A4
Audi, Passenger cars US A4 1.8 Gasoline 2002 01 2003 01 0 0 1781 L4 Turbo AMB Quattro A4
Audi, Passenger cars US A4 1.8 Gasoline 2002 01 2003 01 0 0 1781 L4 Turbo AMB Estate Quattro A4
Audi, Passenger cars US A4 1.8 Gasoline 2000 01 2000 01 0 0 1781 L4 Turbo ATW A4
Audi, Passenger cars US A4 2.8 Gasoline 2001 01 2001 01 0 0 2771 V6 ATQ Estate Quattro A4
Audi, Passenger cars US A4 1.8 Gasoline 2001 01 2001 01 0 0 1781 L4 Turbo AWM Quattro A4
Audi, Passenger cars US A4 1.8 Gasoline 2002 01 2003 01 0 0 1781 L4 Turbo AMB A4
Audi, Passenger cars US A4 1.8 Gasoline 2001 01 2001 01 0 0 1781 L4 Turbo AWM A4
Audi, Passenger cars US A4 1.8 Gasoline 2000 01 2000 01 0 0 1781 L4 Turbo ATW Quattro A4
Audi, Passenger cars US A4 1.8 Gasoline 2000 01 2000 01 0 0 1781 L4 Turbo ATW Estate Quattro A4
Audi, Passenger cars US A4 2.8 Gasoline 2001 01 2001 01 0 0 2771 V6 ATQ Quattro A4

TEST & REPAIR SERVICE

Unistart has its own workshops for remanufacturing with the latest testing equipment. This enables us to provide an excellent (and free) technical helpline and aftersales support and backup service.

You can speak to one of our friendly and knowledgeable technicians who will be glad to Help with any enquiries no matter how large or small. Call us on 020 8 983 9969.
