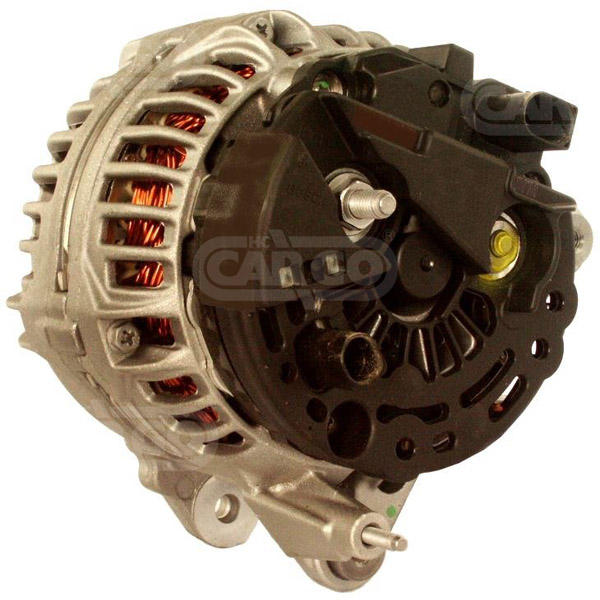

112402 - Alternator (112402)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 120, Terminal W,
Bracket Hole: 8.60, Belt. adj. bracket hole 8.60,
Width/Holder Arm: 14.50, Belt. adj. brackethole pos. 45,
Mount. Bracket Dist.: 61.40,
Pulley Dia.: 67.80,
Pulley Dist.: 39.00,
Grooves/Pulley: 6,
Radius: 89.50,
Radius: 89.50,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL61,
Blower: IF, Pulley SP,
Total Length: 193.50, Source Bosch

Electrical specifications (Alternator)
Voltage 14
Amp 120
Terminal W

Physical specifications (Alternator)
D Bracket hole 8.60
G Belt. adj. bracket hole 8.60
B Width/holder arm 14.50
E Belt. adj. brackethole pos. 45
C Mount. bracket dist. 61.40
H Pulley dia. 67.80
A Pulley dist. 39.00
i Grooves/pulley 6
j Radius 89.50
j Radius 89.50
k B+ position M8
n Rotation CR
o Regulator plug PL61
R Total length 193.50
Source Bosch

Further information (Alternator)
Blower IF
Pulley SP

Replacing
0124515035 BOSCH
0124515057 BOSCH
038903018b VOLKSWAGEN
074903025n VOLKSWAGEN

UNISTART Price: £340.98

Sorry, this item is out of stock.

The 112402 - Alternator is shown in: Brands > 5 Star , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
VW, Passenger cars US Golf 1.9 Diesel 2003 01 - 0 0 1896 L4 Turbo ALH Golf IIII
VW, Passenger cars US Beetle 2 Gasoline 2004 01 - 0 0 1984 L4 AVH Beetle
VW, Passenger cars US Beetle 2 Gasoline 2004 01 - 0 0 1984 L4 AZG Beetle
VW, Passenger cars US Beetle 2 Gasoline 2004 01 - 0 0 1984 L4 BEV Beetle
VW, Passenger cars US Golf 1.9 Diesel 2004 01 - 0 0 1896 L4 Turbo ALH Golf V
VW, Passenger cars US Golf 1.9 Diesel 2004 01 - 0 0 1896 L4 Turbo BEW Golf V
VW, Passenger cars US Jetta 1.9 Diesel 2004 01 - 0 0 1896 L4 TDi ALH Jetta
VW, Passenger cars US Jetta 1.9 Diesel 2004 01 - 0 0 1896 L4 TDi BEW Jetta
VW, Passenger cars US Jetta 2 Gasoline 1999 01 - 0 0 1984 L4 ABA GLS Jetta
VW, Passenger cars US Jetta 2 Gasoline 1999 01 1999 01 0 0 1984 L4 ABA GL Jetta
VW, Passenger cars US Golf 1.8 Gasoline 2002 01 2003 01 0 0 1781 L4 GTi Turbo AWP Golf IIII
VW, Passenger cars US Golf 2 Gasoline 2003 01 2003 01 0 0 1984 L4 AVH Golf IIII
VW, Passenger cars US Jetta 1.9 Diesel 2003 01 - 0 0 1896 L4 TDi ALH Jetta
VW, Passenger cars US Golf 1.9 Diesel 1999 01 - 0 0 1896 L4 Turbo ALH GL Golf III
VW, Passenger cars US Jetta 1.9 Diesel 2005 01 - 0 0 1896 L4 TDi BEW Jetta
VW, Passenger cars US Golf 2.8 Gasoline 1999 01 1999 01 0 0 2792 V6 GTi AAA Golf III
VW, Passenger cars US Golf 2 Gasoline 1999 01 2000 01 0 0 1984 L4 GTi AEG Golf III
VW, Passenger cars US Jetta 2 Gasoline 1999 01 2000 01 0 0 1984 L4 AEG GLS Jetta
VW, Passenger cars US Jetta 1.8 Gasoline 2000 01 2000 01 0 0 1781 L4 Turbo AWW GLS Jetta
VW, Passenger cars US Beetle 1.9 Diesel 2001 01 2001 01 0 0 1896 L4 Turbo ALH Beetle
VW, Passenger cars US Golf 1.8 Gasoline 2001 01 2001 01 0 0 1781 L4 GTi Turbo AWW Golf IIII
VW, Passenger cars US Jetta 2 Gasoline 2001 01 2002 01 0 0 1984 L4 AVH Jetta
VW, Passenger cars US Jetta 2 Gasoline 2001 01 2002 01 0 0 1984 L4 AZG Jetta
VW, Passenger cars US Beetle 2 Gasoline 2002 01 2003 01 0 0 1984 L4 AVH Beetle
VW, Passenger cars US Jetta 2.8 Gasoline 2002 01 2002 01 0 0 2792 V6 BDF GLS Jetta
VW, Passenger cars US Golf 1.8 Gasoline 2004 01 - 0 0 1781 L4 GTi Turbo AWP Golf V
VW, Passenger cars US Beetle 1.8 Gasoline 1999 01 2000 01 0 0 1781 L4 Turbo APH Beetle
VW, Passenger cars US Golf 2 Gasoline 1999 01 1999 01 0 0 1984 L4 ABA GL Golf III
VW, Passenger cars US Jetta 2 Gasoline 1999 01 1999 01 0 0 1984 L4 ABA GLS Jetta
VW, Passenger cars US Golf 2 Gasoline 2000 01 2000 01 0 0 1984 L4 AEG Golf III
VW, Passenger cars US Jetta 2.8 Gasoline 1999 01 1999 01 0 0 2792 V6 AAA GLX Jetta
VW, Passenger cars US Golf 2.8 Gasoline 1999 01 2002 01 0 0 2792 V6 GTi AFP Golf III
VW, Passenger cars US Golf 1.9 Diesel 1999 01 1999 01 0 0 1896 L4 TDi ALH Golf III
VW, Passenger cars US Golf 1.8 Gasoline 2000 01 2000 01 0 0 1781 L4 Turbo AWD Golf III
VW, Passenger cars US Golf 2 Gasoline 1999 01 1999 01 0 0 1984 L4 AEG GL Golf III
VW, Passenger cars US Golf 2 Gasoline 1999 01 1999 01 0 0 1984 L4 AEG GLS Golf III
VW, Passenger cars US Beetle 1.8 Gasoline 2001 01 2001 01 0 0 1781 L4 Turbo AWV Beetle
VW, Passenger cars US Beetle 2 Gasoline 2002 01 2002 01 0 0 1984 L4 AZG Beetle
VW, Passenger cars US Jetta 1.9 Diesel 2002 01 2002 01 0 0 1896 L4 TDi ALH Jetta
VW, Passenger cars US Beetle 1.9 Diesel 2003 01 - 0 0 1896 L4 Turbo ALH Beetle
VW, Passenger cars US Beetle 2 Gasoline 2001 01 2001 01 0 0 1984 L4 AVH Beetle
VW, Passenger cars US Golf 1.8 Gasoline 2001 01 2001 01 0 0 1781 L4 Turbo AWD Golf IIII
VW, Passenger cars US Golf 1.8 Gasoline 2001 01 2001 01 0 0 1781 L4 Turbo AWW Golf IIII
VW, Passenger cars US Golf 1.9 Diesel 2001 01 2001 01 0 0 1896 L4 Turbo ALH Golf IIII
VW, Passenger cars US Golf 2 Gasoline 2001 01 2001 01 0 0 1984 L4 AEG Golf IIII
VW, Passenger cars US Golf 1.8 Gasoline 2001 01 2001 01 0 0 1781 L4 GTi Turbo AWD Golf IIII
VW, Passenger cars US Jetta 1.8 Gasoline 2001 01 2001 01 0 0 1781 L4 Turbo AWD GLS Jetta
VW, Passenger cars US Jetta 1.8 Gasoline 2001 01 2001 01 0 0 1781 L4 Turbo AWW GLS Jetta
VW, Passenger cars US Beetle 1.9 Diesel 2002 01 2002 01 0 0 1896 L4 Turbo ALH Beetle
VW, Passenger cars US Jetta 1.8 Gasoline 2002 01 2003 01 0 0 1781 L4 Turbo AWP GLS Jetta
VW, Passenger cars US Beetle 1.9 Diesel 1999 01 2000 01 0 0 1896 L4 Turbo ALH Beetle
VW, Passenger cars US Beetle 2 Gasoline 1999 01 2000 01 0 0 1984 L4 AEG Beetle
VW, Passenger cars US Golf 2 Gasoline 1999 01 1999 01 0 0 1984 L4 GTi ABA Golf III
VW, Passenger cars US Jetta 1.9 Diesel 1999 01 2001 01 0 0 1896 L4 TDi ALH Jetta
VW, Passenger cars US Beetle 2 Gasoline 2004 01 - 0 0 1984 L4 BDC Beetle
VW, Passenger cars US Beetle 2 Gasoline 2004 01 - 0 0 1984 L4 BGD Beetle
VW, Passenger cars US Jetta 1.8 Gasoline 2004 01 - 0 0 1781 L4 Turbo AWP GLS Jetta
VW, Passenger cars US Beetle 2 Gasoline 2003 01 2003 01 0 0 1984 L4 BDC Beetle
VW, Passenger cars US Beetle 2 Gasoline 2005 01 - 0 0 1984 L4 AZG Beetle
VW, Passenger cars US Beetle 2 Gasoline 2005 01 - 0 0 1984 L4 BEV Beetle
VW, Passenger cars US Golf 1.8 Gasoline 2005 01 - 0 0 1781 L4 GTi Turbo AWP Golf V
VW, Passenger cars US Golf 1.9 Diesel 2005 01 - 0 0 1896 L4 Turbo BEW Golf V
VW, Passenger cars US Jetta 1.8 Gasoline 2005 01 - 0 0 1781 L4 Turbo AWP Jetta
VW, Passenger Car EU Transporter 2.4 Diesel 1992 10 1998 09 57 78 2370 5 Diesel AAB Bus T4 Syncro Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1996 07 2003 04 85 115 2461 5 APL Bus T4 Syncro Transporter
VW, Passenger Car EU Multivan 2.5 Gasoline 1996 08 2003 04 85 115 2461 5 AET Bus Multivan
VW, Passenger Car EU Transporter 2.5 Gasoline 1996 08 2004 03 85 115 2461 5 AET Platform / Chassis T4 Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1996 08 2004 03 85 115 2461 5 AET Platform / Chassis T4 Syncro Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1996 08 2004 03 85 115 2461 5 AVT Van T4 Syncro Transporter
VW, Passenger Car EU Transporter 2.5 Diesel 1998 05 2004 03 65 88 2461 5 TDi AJT Bus T4 Transporter
VW, Passenger Car EU Transporter 2.4 Diesel 1997 08 2003 04 55 75 2370 5 Diesel AJA Van T4 Transporter
VW, Passenger Car EU Transporter 2.5 Diesel 1995 09 2003 04 75 102 2461 5 TDi ACV Bus T4 Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1996 08 2004 03 85 115 2461 5 AET Van T4 Syncro Transporter
VW, Passenger Car EU LT 2.8 Diesel 1997 06 1998 12 92 125 2799 4 TDi AGK Platform / Chassis LT 28-35
VW, Passenger Car EU LT 2.8 Diesel 1999 01 - 96 130 2799 4 TDi ATA Platform / Chassis LT 28-35
VW, Passenger Car EU Transporter 2.5 Diesel 1998 05 2003 04 65 88 2461 5 TD AJT Platform / Chassis T4 Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1990 11 2003 04 81 110 2461 5 AEN Bus T4 Transporter
VW, Passenger Car EU LT 2.8 Diesel 1997 06 1998 12 92 125 2799 4 TDi AGK Van LT 28-35
VW, Passenger Car EU Multivan 2.5 Gasoline 1996 08 - 85 115 2461 5 APL Bus Multivan
VW, Passenger Car EU Transporter 2.5 Diesel 1995 09 2004 03 75 102 2461 5 TDi ACV Van T4 Transporter
VW, Passenger Car EU Transporter 2.4 Diesel 1997 08 2003 04 55 75 2370 5 Diesel AJA Bus T4 Transporter
VW, Passenger Car EU Transporter 2.5 Diesel 1996 01 2004 03 75 102 2461 5 TDi ACV Bus T4 Syncro Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1990 11 2003 04 81 110 2461 5 AEU Van T4 Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1996 08 2004 03 85 115 2461 5 AET Van T4 Transporter
VW, Passenger Car EU Transporter 2.5 Diesel 1995 09 2004 03 75 102 2461 5 TDi ACV Platform / Chassis T4 Transporter
VW, Passenger Car EU Transporter 2.5 Diesel 1998 12 2003 04 65 88 2461 5 TDi AJT Van T4 Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1996 07 2003 04 85 115 2461 5 AET Bus T4 Syncro Transporter
VW, Passenger Car EU Transporter 2.5 Gasoline 1996 08 2004 03 85 115 2461 5 AVT Van T4 Transporter
VW, Passenger Car EU Transporter 2.5 Diesel 1995 09 2003 04 75 102 2461 5 TDi ACV Van T4 Syncro Transporter
VW, Passenger Car EU Transporter 2.4 Diesel 1997 08 2003 04 55 75 2370 5 Diesel AJA Platform / Chassis T4 Transporter
VW, Passenger Car EU LT 2.8 Diesel 1999 01 - 96 130 2799 4 TDi ATA Van LT 28-35
VW, Passenger Car EU LT 2.8 Diesel 1999 01 - 96 130 2799 4 TDi ATA Platform / Chassis LT 28-35
VW, Passenger Car EU LT 2.8 Diesel 1999 01 - 96 130 2799 4 TDi ATA Van LT 28-35
