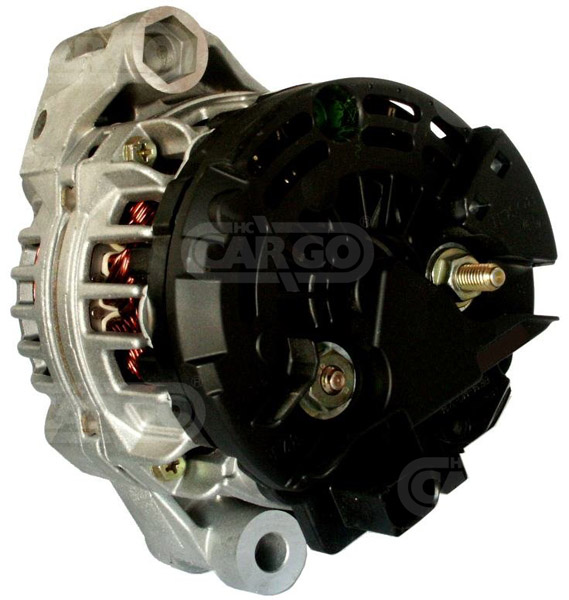

112414 - Alternator (112414)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 85,
Bracket Hole: 11.50, Belt. adj. bracket hole 13.50,
Width/Holder Arm: 58.00, Belt. adj. brackethole pos. 5,
Pulley Dia.: 48.00,
Pulley Dist.: 89.50,
Grooves/Pulley: 5,
Radius: 79.50,
Radius: 79.00,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL61,
Blower: IF, Pulley SP,
Total Length: 177.50
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 85 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 11.50 | |||
| G | Belt. adj. bracket hole 13.50 | |||
| B | Width/holder arm 58.00 | |||
| E | Belt. adj. brackethole pos. 5 | |||
| H | Pulley dia. 48.00 | |||
| A | Pulley dist. 89.50 | |||
| i | Grooves/pulley 5 | |||
| j | Radius 79.50 | |||
| j | Radius 79.00 | |||
| k | B+ position M8 | |||
| n | Rotation CR | |||
| o | Regulator plug PL61 | |||
| R | Total length 177.50 | |||
Further information (Alternator) | ||||
| Blower | IF | |||
| Pulley | SP | |||
Replacing | ||||
| 0124225010 | BOSCH | |||
| 0124225011 | BOSCH | |||
| yle102420 | ROVER GROUP | |||
| yle102430 | ROVER GROUP | |||
UNISTART Price: £106.84
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MG, Passenger Car EU | Express | 1.8 | Gasoline | 2003 03 | 2005 05 | 86 | 117 | 1796 | 4 | 18K4F | Hatchback | Express | ||
| MG, Passenger Car EU | ZR | 1.8 | Gasoline | 2001 06 | - | 118 | 160 | 1796 | 4 | 18K4K | Hatchback | ZR 160 | ||
| MG, Passenger Car EU | TF | 1.8 | Gasoline | 2002 03 | - | 88 | 120 | 1796 | 4 | 18K4F | Convertible | 120 | TF | |
| MG, Passenger Car EU | TF | 1.6 | Gasoline | 2002 03 | - | 85 | 116 | 1588 | 4 | 16K4F | Convertible | 115 | TF | |
| MG, Passenger Car EU | ZR | 1.8 | Gasoline | 2001 06 | - | 86 | 117 | 1796 | 4 | 18K4F | Hatchback | ZR 120 | ||
| MG, Passenger Car EU | ZR | 1.8 | Gasoline | 2001 07 | - | 86 | 117 | 1796 | 4 | 18K4F | ZS 120 | |||
| MG, Passenger Car EU | ZS | 1.8 | Gasoline | 2001 07 | - | 86 | 117 | 1796 | 4 | 18K4F | Hatchback | ZS 120 | ||
| MG, Passenger Car EU | MGF | 1.6 | Gasoline | 2000 02 | 2002 03 | 82 | 111 | 1588 | 4 | 16K4F | Convertible | MGF | ||
| MG, Passenger Car EU | Express | 1.4 | Gasoline | 2003 03 | 2005 05 | 76 | 103 | 1396 | 4 | 14K4F | Hatchback | Express | ||
| MG, Passenger Car EU | ZR | 1.4 | Gasoline | 2001 06 | - | 76 | 103 | 1396 | 4 | 14K4F | Hatchback | ZR 105 | ||
| MG, Passenger Car EU | TF | 1.8 | Gasoline | 2002 03 | - | 118 | 160 | 1796 | 4 | 18K4K | Convertible | TF | ||
| MG, Passenger Car EU | MGF | 1.8 | Gasoline | 1995 03 | 2002 03 | 88 | 120 | 1796 | 4 | i 16V | 18K4F | Convertible | MGF | |
| MG, Passenger Car EU | MGF | 1.8 | Gasoline | 2001 10 | 2002 03 | 118 | 160 | 1796 | 4 | i | 18K4K | Convertible | WC | MGF |
| MG, Passenger Car EU | TF | 1.8 | Gasoline | 2002 03 | - | 100 | 136 | 1796 | 4 | 18K4F | Convertible | 135 | TF | |
| Rover, Passenger Car EU | 25 | 1.4 | Gasoline | 1999 10 | 2005 05 | 76 | 103 | 1396 | 4 | 16V | 14K4F | Hatchback | 25 | |
| Rover, Passenger Car EU | 25 | 1.8 | Gasoline | 2000 02 | 2005 05 | 107 | 146 | 1796 | 4 | 16V | 18K4K | Hatchback | 25 | |
| Rover, Passenger Car EU | 45 | 1.6 | Gasoline | 2000 02 | - | 80 | 109 | 1588 | 4 | 16K4F | Hatchback | 45 | ||
| Rover, Passenger Car EU | 400 | 1.6 | Gasoline | 1995 06 | 2000 03 | 85 | 116 | 1590 | 4 | D16B2 | Hatchback | 400 | ||
| Rover, Passenger Car EU | 25 | 1.1 | Gasoline | 2004 01 | 2005 05 | 55 | 75 | 1119 | 4 | 16V | 11K4F | Hatchback | 25 | |
| Rover, Passenger Car EU | 25 | 1.8 | Gasoline | 1999 10 | 2005 05 | 85 | 116 | 1796 | 4 | 16V | 18K4F | Hatchback | 25 | |
| Rover, Passenger Car EU | 45 | 1.6 | Gasoline | 2000 02 | - | 80 | 109 | 1588 | 4 | 16K4F | 45 | |||
| Rover, Passenger Car EU | 45 | 1.8 | Gasoline | 2000 02 | - | 86 | 117 | 1796 | 4 | 18K4F | 45 | |||
| Rover, Passenger Car EU | 45 | 1.8 | Gasoline | 2000 02 | - | 86 | 117 | 1796 | 4 | 18K4F | Hatchback | 45 | ||
| Rover, Passenger Car EU | 25 | 1.4 | Gasoline | 1999 10 | 2005 05 | 62 | 84 | 1396 | 4 | 16V | 14K4M | Hatchback | 25 | |
| Rover, Passenger Car EU | 25 | 1.6 | Gasoline | 1999 10 | 2005 05 | 80 | 109 | 1588 | 4 | 16V | 16K4F | Hatchback | 25 | |
| Rover, Passenger Car EU | 45 | 1.4 | Gasoline | 2000 02 | - | 76 | 103 | 1396 | 4 | 14K4F | Hatchback | 45 | ||
| Rover, Passenger Car EU | 45 | 1.4 | Gasoline | 2000 02 | - | 76 | 103 | 1396 | 4 | 14K4F | 45 | |||
| Rover, Passenger Car EU | 400 | 1.6 | Gasoline | 1995 05 | 2000 03 | 85 | 116 | 1590 | 4 | D16B2 | 400 |
