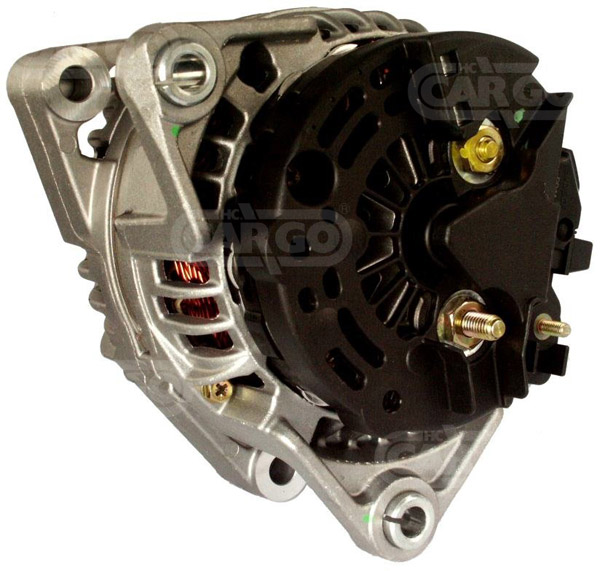

112415 - Alternator (112415)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 120,
Bracket Hole: 10.50, Belt. adj. bracket hole 10.50,
Width/Holder Arm: 33.40, Belt. adj. brackethole pos. 10,
Mount. Bracket Dist.: 57.20,
Pulley Dia.: 49.60,
Pulley Dist.: 51.00,
Grooves/Pulley: 6,
Radius: 92.00,
Radius: 92.00,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: IF, Pulley SP,
Total Length: 180.00, Source Bosch

Electrical specifications (Alternator)
Voltage 14
Amp 120

Physical specifications (Alternator)
D Bracket hole 10.50
G Belt. adj. bracket hole 10.50
B Width/holder arm 33.40
E Belt. adj. brackethole pos. 10
C Mount. bracket dist. 57.20
H Pulley dia. 49.60
A Pulley dist. 51.00
i Grooves/pulley 6
j Radius 92.00
j Radius 92.00
k B+ position M8
n Rotation CR
o Regulator plug PL_NA
R Total length 180.00
Source Bosch

Further information (Alternator)
Blower IF
Pulley SP

Replacing
0124515005 BOSCH
0124515080 BOSCH
6204105 OPEL
90561169 OPEL
9200959 OPEL

UNISTART Price: £383.67

Sorry, this item is out of stock.

The 112415 - Alternator is shown in: Brands > 5 Star , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Opel, Passenger Car EU Astra 2 Diesel 1999 08 2005 01 74 101 1995 4 DTi 16V X20DTH Astra G
Opel, Passenger Car EU Zafira 2.2 Diesel 2002 01 2005 06 92 125 2172 4 DTi 16V Y22DTR MPV Zafira A
Opel, Passenger Car EU Astra 2 Diesel 1999 01 2005 04 60 82 1995 4 Diesel Di X20DTL Van Astra G
Opel, Passenger Car EU Vectra 2.2 Diesel 2000 09 2002 04 92 125 2172 4 DTi 16V Y22DTR Vectra B
Opel, Passenger Car EU Omega 2.2 Diesel 2000 09 2003 07 88 120 2171 4 DTi 16V Y22DTH Omega B
Opel, Passenger Car EU Astra 2 Diesel 1998 02 2005 01 60 82 1995 4 Diesel X20DTL Hatchback Astra G
Opel, Passenger Car EU Astra 2 Diesel 1998 09 - 60 82 1995 4 Diesel Y20DTL Astra G
Opel, Passenger Car EU Zafira 2.2 Diesel 2002 01 2005 06 86 117 2172 4 DTi Y22DTR MPV Zafira A
Opel, Passenger Car EU Astra 2 Diesel 1999 08 2005 01 74 101 1995 4 DTi 16V X20DTH Hatchback Astra G
Opel, Passenger Car EU Vectra 2.2 Diesel 2003 10 - 92 125 2172 4 DTi Y22DTR Estate Vectra C
Opel, Passenger Car EU Vectra 2.2 Diesel 2002 08 - 92 125 2172 4 DTi 16V Y22DTR Hatchback GTS Vectra C
Opel, Passenger Car EU Astra 2.2 Diesel 2002 09 2005 05 92 125 2172 4 DTi Y22DTR Coupe Astra G
Opel, Passenger Car EU Astra 2.2 Diesel 2002 09 2005 01 92 125 2172 4 DTi Y22DTR Astra G
Opel, Passenger Car EU Astra 2.2 Diesel 2002 09 2004 07 92 125 2172 4 DTi Y22DTR Estate Astra G
Opel, Passenger Car EU Vectra 2.2 Diesel 2003 10 2008 06 86 117 2172 4 DTI Y22DTR Estate Vectra C
Opel, Passenger Car EU Astra 2 Diesel 1998 02 - 60 82 1995 4 Diesel X20DTL Estate Astra G
Opel, Passenger Car EU Astra 2 Diesel 1998 09 2005 01 60 82 1995 4 Diesel X20DTL Astra G
Opel, Passenger Car EU Astra 2 Diesel 1999 08 2004 07 74 101 1995 4 DTi 16V X20DTH Estate Astra G
Opel, Passenger Car EU Vectra 2 Diesel 2002 08 - 74 101 1995 4 DTi 16V Y20DTH Hatchback GTS Vectra C
Opel, Passenger Car EU Astra 2.2 Diesel 2002 09 2005 01 92 125 2172 4 DTi Y22DTR Hatchback Astra G
Opel, Passenger Car EU Vectra 2.2 Diesel 2002 08 2008 06 86 117 2172 4 DTI 16V Y22DTR Hatchback GTS Vectra C
Opel, Passenger Car EU Astra 2.2 Diesel 2002 09 2004 07 86 117 2172 4 DTi Y22DTR Estate Astra G
Opel, Passenger Car EU Vectra 2.2 Diesel 2000 09 2002 04 88 120 2172 4 DTi Y22DTR Estate Vectra B
Opel, Passenger Car EU Vectra 2.2 Diesel 2000 09 2002 04 88 120 2172 4 DTI Y22DTR Hatchback Vectra B CC
Opel, Passenger Car EU Astra 2 Diesel 1998 02 2005 01 60 82 1995 4 Diesel Y20DTL Hatchback Astra G
Opel, Passenger Car EU Vectra 2.2 Diesel 2000 09 2003 07 92 125 2172 4 DTi 16V Y22DTR Hatchback Vectra B
Opel, Passenger Car EU Omega 2.2 Diesel 2000 09 2003 07 88 120 2171 4 DTi 16V Y22DTH Estate Omega B
Opel, Passenger Car EU Astra 2 Diesel 1999 08 2005 01 74 101 1995 4 DTi 16V Y20DTH Hatchback Astra G
Opel, Passenger Car EU Vectra 2 Diesel 2003 10 - 74 100 1995 4 DTi Y20DTH Estate Vectra C
Opel, Passenger Car EU Signum 2.2 Diesel 2003 05 2008 06 86 117 2172 4 DTI 16V Y22DTR Hatchback Signum
Opel, Passenger Car EU Astra 2.2 Diesel 2002 09 2005 01 86 117 2172 4 DTi Y22DTR Hatchback Astra G
Opel, Passenger Car EU Astra 2.2 Diesel 2002 09 2005 01 86 117 2172 4 DTi Y22DTR Astra G
Opel, Passenger Car EU Astra 2 Diesel 2000 09 2004 06 60 82 1995 4 Diesel Y20DTL Estate Astra G
Opel, Passenger Car EU Vectra 2.2 Diesel 2000 09 2003 07 92 125 2172 4 DTi 16V Y22DTR Estate Vectra B
Opel, Passenger Car EU Zafira 2 Diesel 1999 10 2005 06 60 82 1995 4 Diesel Di 16V X20DTL MPV Zafira A
Opel, Passenger Car EU Astra 2 Diesel 1999 08 2004 07 74 101 1995 4 DTi 16V Y20DTH Estate Astra G
Opel, Passenger Car EU Astra 2 Diesel 1999 08 2005 01 74 101 1995 4 DTi 16V Y20DTH Astra G
Opel, Passenger Car EU Vectra 2 Diesel 2002 04 - 74 101 1995 4 DTi 16V Y20DTH Vectra C
Opel, Passenger Car EU Astra 2.2 Diesel 2002 09 2005 10 92 125 2172 4 DTi Y22DTR Convertible Astra G
Vauxhall, Passenger Car EU Vectra 2 Diesel 1997 06 - 74 101 1995 4 DTi 16V Y20DTH Vectra
Vauxhall, Passenger Car EU Vectra 2 Diesel 1997 06 - 74 101 1995 4 DTi 16V Y20DTH Estate Vectra
Vauxhall, Passenger Car EU Omega 2.2 Diesel 2000 09 - 88 120 2171 4 DTi 16V Y22DTH Estate Omega
Vauxhall, Passenger Car EU Vectra 2 Diesel 2002 04 2008 10 74 101 1995 4 DTi Y20DTH Vectra
Vauxhall, Passenger Car EU Vectra 2 Diesel 2002 04 - 74 101 1995 4 DTi 16V Y20DTH Hatchback Vectra
Vauxhall, Passenger Car EU Vectra 2 Diesel 1997 06 - 74 101 1995 4 DTi 16V Y20DTH Hatchback Vectra
Vauxhall, Passenger Car EU Astra 2 Diesel 1998 02 - 60 82 1995 4 Diesel Y20DTL Estate Astra G
Vauxhall, Passenger Car EU Vectra 2.2 Diesel 2000 09 - 92 125 2172 4 DTi 16V Y22DTR Hatchback Vectra
Vauxhall, Passenger Car EU Astra 2 Diesel 2000 09 - 74 101 1995 4 DTi 16V Y20DTH Astra MK IV
Vauxhall, Passenger Car EU Vectra 2 Diesel 2003 10 - 74 101 1995 4 DTi 16V Y20DTH Estate Vectra
Vauxhall, Passenger Car EU Zafira 2.2 Diesel 2001 06 2005 06 92 125 2172 4 Diesel Y22DTR MPV Zafira
Vauxhall, Passenger Car EU Astra 2 Diesel 1998 09 - 60 82 1995 4 Diesel Y20DTL Astra G
Vauxhall, Passenger Car EU Omega 2.2 Diesel 2000 09 2003 07 88 120 2171 4 DTi 16V Y22DTH Omega
Vauxhall, Passenger Car EU Vectra 2.2 Diesel 2000 09 - 92 125 2172 4 DTi 16V Y22DTR Estate Vectra
Vauxhall, Passenger Car EU Vectra 2.2 Diesel 2002 04 2008 10 92 125 2172 4 DTi Y22DTR Vectra
Vauxhall, Passenger Car EU Vectra 2.2 Diesel 2003 10 - 92 125 2172 4 DTI 16V Y22DTR Estate Vectra
Vauxhall, Passenger Car EU Astra 2 Diesel 1998 02 2005 05 60 82 1995 4 Diesel Y20DTL Hatchback Astra G
Vauxhall, Passenger Car EU Astra 2 Diesel 2000 09 2005 05 74 101 1995 4 DTi 16V Y20DTH Hatchback Astra MK IV
Vauxhall, Passenger Car EU Astra 2.2 Diesel 2002 09 2005 05 92 125 2172 4 DTi Y22DTR Astra MK IV
Vauxhall, Passenger Car EU Vectra 2.2 Diesel 2002 04 - 92 125 2172 4 DTi 16V Y22DTR Hatchback GTS Vectra
Vauxhall, Passenger Car EU Vectra 2.2 Diesel 2000 09 - 92 125 2172 4 DTi 16V Y22DTR Vectra
