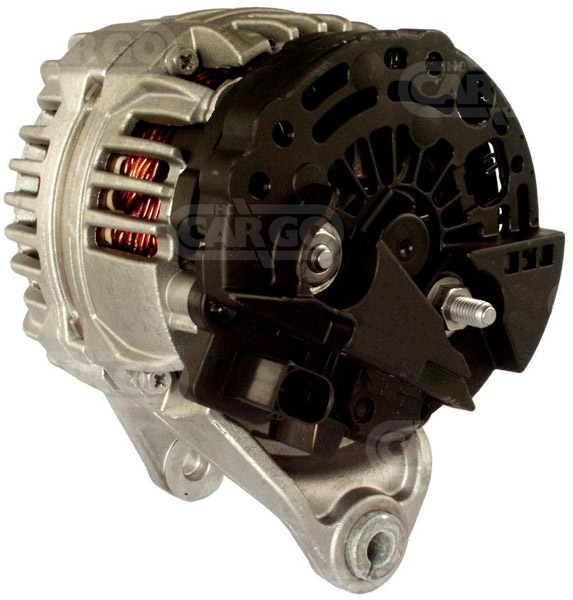

112419 - Alternator (112419)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 70,
Bracket Hole: 10.30, Belt. adj. bracket hole M10,
Width/Holder Arm: 14.00, Belt. adj. brackethole pos. 50,
Mount. Bracket Dist.: 81.60,
Pulley Dia.: 50.10,
Pulley Dist.: 35.00,
Grooves/Pulley: 5,
Radius: 92.00,
Radius: 95.00,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL61,
Blower: IF, Pulley SP,
Total Length: 177.00
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 70 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 10.30 | |||
| G | Belt. adj. bracket hole M10 | |||
| B | Width/holder arm 14.00 | |||
| E | Belt. adj. brackethole pos. 50 | |||
| C | Mount. bracket dist. 81.60 | |||
| H | Pulley dia. 50.10 | |||
| A | Pulley dist. 35.00 | |||
| i | Grooves/pulley 5 | |||
| j | Radius 92.00 | |||
| j | Radius 95.00 | |||
| k | B+ position M8 | |||
| n | Rotation CR | |||
| o | Regulator plug PL61 | |||
| R | Total length 177.00 | |||
Further information (Alternator) | ||||
| Blower | IF | |||
| Pulley | SP | |||
Replacing | ||||
| 0124315014 | BOSCH | |||
| 047903015q | VOLKSWAGEN | |||
| 047903017 | VOLKSWAGEN | |||
| 9517241 | MAGNETON (PAL/SKODA) | |||
UNISTART Price: £124.17
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Skoda, Passenger Car EU | Fabia | 1 | Gasoline | 1999 12 | 2002 08 | 37 | 50 | 996 | 4 | AQV | Hatchback | Fabia | ||
| Skoda, Passenger Car EU | Fabia | 1.4 | Gasoline | 2000 11 | 2003 05 | 50 | 68 | 1397 | 4 | AME | Estate | Fabia | ||
| Skoda, Passenger Car EU | Fabia | 1.4 | Gasoline | 2001 07 | 2003 05 | 50 | 68 | 1397 | 4 | ATZ | Fabia | |||
| Skoda, Passenger Car EU | Fabia | 1.4 | Gasoline | 2002 04 | 2003 05 | 50 | 68 | 1397 | 4 | AME | Van | Praktik | Fabia | |
| Skoda, Passenger Car EU | Fabia | 1.4 | Gasoline | 2000 04 | 2002 08 | 44 | 60 | 1397 | 4 | AZE | Fabia | |||
| Skoda, Passenger Car EU | Fabia | 1.4 | Gasoline | 2000 04 | 2002 08 | 44 | 60 | 1397 | 4 | AZF | Fabia | |||
| Skoda, Passenger Car EU | Fabia | 1.4 | Gasoline | 2000 04 | 2003 03 | 44 | 60 | 1397 | 4 | AZF | Estate | Fabia | ||
| Skoda, Passenger Car EU | Fabia | 1.4 | Gasoline | 2002 04 | 2003 05 | 50 | 68 | 1397 | 4 | AQW | Van | Praktik | Fabia | |
| Skoda, Passenger Car EU | Fabia | 1.4 | Gasoline | 2002 04 | 2003 05 | 50 | 68 | 1397 | 4 | ATZ | Van | Praktik | Fabia | |
| Skoda, Passenger Car EU | Fabia | 1.4 | Gasoline | 2000 08 | 2002 08 | 44 | 60 | 1397 | 4 | AZE | Hatchback | Fabia | ||
| Skoda, Passenger Car EU | Fabia | 1.4 | Gasoline | 2000 08 | 2002 08 | 44 | 60 | 1397 | 4 | AZF | Hatchback | Fabia | ||
| Skoda, Passenger Car EU | Fabia | 1.4 | Gasoline | 2000 09 | 2003 05 | 50 | 68 | 1397 | 4 | AQW | Hatchback | Fabia | ||
| Skoda, Passenger Car EU | Fabia | 1.4 | Gasoline | 2000 04 | 2003 03 | 44 | 60 | 1397 | 4 | AZE | Estate | Fabia | ||
| Seat, Passenger Car EU | Arosa | 1 | Gasoline | 1998 01 | 2004 06 | 37 | 50 | 999 | 4 | AHT | Hatchback | Arosa |
