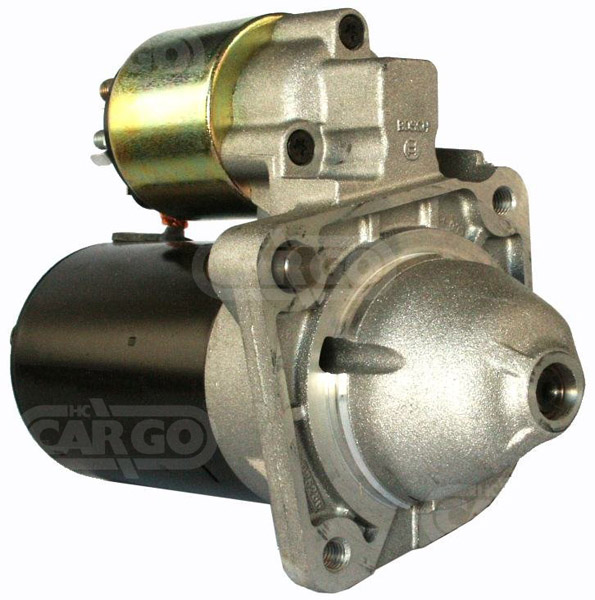

112445 - Starter (112445)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 12, kW 1.1, Mount. flange 66.00, Drive dist. 12.00, Dist./back 165.25, Dist./front 46.00, No. of teeth 9, B+ M8, Gear type GR, Dist. 104.30, Dist. 2 74.00, Dist. 3 75.20,
Rotation: CR, No./mount. holes 3 (2), Clutch type Dry,
Drive Type: Steel,
Total Length: 210.00, Oil sealed No, Waterproof No, Source Bosch
Electrical specifications (Starter) | ||||
| Voltage | 12 | |||
| kW | 1.1 | |||
Physical specifications (Starter) | ||||
| A | Mount. flange 66.00 | |||
| B | Drive dist. 12.00 | |||
| F | Dist./back 165.25 | |||
| G | Dist./front 46.00 | |||
| H | No. of teeth 9 | |||
| I | B+ M8 | |||
| N | Gear type GR | |||
| O | Dist. 104.30 | |||
| O | Dist. 2 74.00 | |||
| O | Dist. 3 75.20 | |||
| P | Rotation CR | |||
| R | Total length 210.00 | |||
| Source | Bosch | |||
Further information (Starter) | ||||
| No./mount. | holes 3 (2) | |||
| Clutch | type Dry | |||
| Drive | type Steel | |||
| Oil | sealed No | |||
| Waterproof | No | |||
Replacing | ||||
| 0001107091 | BOSCH | |||
| 0001107097 | BOSCH | |||
| 0001107109 | BOSCH | |||
| 0001107110 | BOSCH | |||
| 0001107111 | BOSCH | |||
| 46748349 | FIAT | |||
| 46748350 | FIAT | |||
| 46821681 | FIAT | |||
| 51776205 | FIAT | |||
| 51832956 | FIAT | |||
UNISTART Price: £175.53
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fiat, Passenger Car EU | Brava | 1.6 | Gasoline | 1996 02 | 2001 10 | 76 | 103 | 1581 | 4 | 16V | 182A4.000 | Hatchback | SX | Brava |
| Fiat, Passenger Car EU | Doblo | 1.6 | Gasoline | 2001 10 | - | 76 | 103 | 1596 | 4 | i.e. 16V | 182B6.000 | Van | Doblo | |
| Fiat, Passenger Car EU | Palio | 1.6 | Gasoline | 2001 02 | - | 76 | 103 | 1596 | 4 | 16V | 182B6.000 | Estate | Palio | |
| Fiat, Passenger Car EU | Multipla | 1.6 | Gas | 2002 04 | 2010 06 | 70 | 95 | 1596 | 4 | 16V | 182B6.000 | MPV | Blupower | Multipla |
| Fiat, Passenger Car EU | Multipla | 1.6 | Bi-Fuel | 2001 10 | 2010 06 | 76 | 103 | 1596 | 4 | 16V | 182B6.000 | MPV | GPL | Multipla |
| Fiat, Passenger Car EU | Multipla | 1.6 | Gasoline | 1999 04 | 2010 06 | 76 | 103 | 1581 | 4 | 16V Bipower | 186A4.000 | MPV | Multipla | |
| Fiat, Passenger Car EU | Marea | 1.6 | Gasoline | 1999 04 | - | 76 | 103 | 1581 | 4 | 16V Bipower | 185A3.000 | Marea | ||
| Fiat, Passenger Car EU | Doblo | 1.6 | Gasoline | 2001 10 | - | 76 | 103 | 1596 | 4 | i.e. 16V | 182B6.000 | MPV | Doblo | |
| Fiat, Passenger Car EU | Bravo | 1.6 | Gasoline | 1996 03 | 2001 10 | 76 | 103 | 1581 | 4 | 182A4.000 | Hatchback | SX | Bravo | |
| Fiat, Passenger Car EU | Marea | 1.6 | Gasoline | 1996 09 | - | 76 | 103 | 1581 | 4 | i 16V | 182A4.000 | Estate | Marea | |
| Fiat, Passenger Car EU | Multipla | 1.6 | Gasoline/gas | 2001 10 | 2010 06 | 76 | 103 | 1596 | 4 | 16V Bipower | 182B6.000 | MPV | Multipla | |
| Fiat, Passenger Car EU | Doblo | 1.6 | Gasoline | 2002 09 | - | 76 | 103 | 1596 | 4 | 182B6.000 | MPV | Doblo | ||
| Fiat, Passenger Car EU | Doblo | 1.6 | Gasoline | 2002 09 | - | 76 | 103 | 1596 | 4 | 182B6.000 | Van | Doblo | ||
| Fiat, Passenger Car EU | Multipla | 1.6 | Gasoline | 1999 04 | 2010 06 | 76 | 103 | 1581 | 4 | 16V | 182A4.000 | MPV | Multipla | |
| Fiat, Passenger Car EU | Multipla | 1.6 | Gas | 1999 04 | 2010 06 | 70 | 95 | 1581 | 4 | 16V | 186A3.000 | MPV | Blupower | Multipla |
| Fiat, Passenger Car EU | Stilo | 1.6 | Gasoline | 2001 10 | - | 76 | 103 | 1596 | 4 | 16V | 182B6.000 | Hatchback | Stilo | |
| Fiat, Passenger Car EU | Marea | 1.6 | Gasoline | 1996 09 | - | 76 | 103 | 1581 | 4 | i 16V | 182A4.000 | Marea | ||
| Fiat, Passenger Car EU | Bravo | 1.6 | Gasoline | 1995 10 | 2001 10 | 66 | 90 | 1581 | 4 | 182A6.000 | Hatchback | Bravo | ||
| Fiat, Passenger Car EU | Marea | 1.6 | Gasoline | 1999 04 | - | 76 | 103 | 1581 | 4 | 16V Bipower | 186A4.000 | Marea | ||
| Lancia, Passenger Car EU | Lybra | 1.6 | Gasoline | 1999 07 | - | 76 | 103 | 1581 | 4 | 16V | 182A4.000 | Lybra | ||
| Lancia, Passenger Car EU | Lybra | 1.6 | Gasoline | 1999 07 | - | 76 | 103 | 1581 | 4 | 16V | 182A4.000 | Estate | Lybra |
