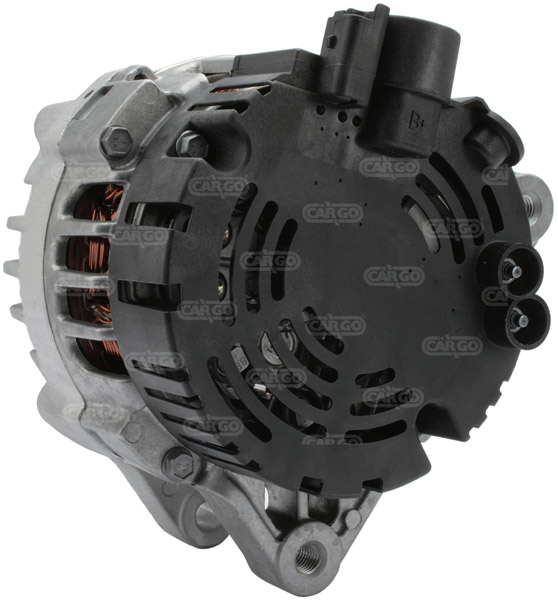

112469 - Alternator (112469)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 90,
Bracket Hole: 10.00, Belt. adj. bracket hole 10.50,
Width/Holder Arm: 22.20, Belt. adj. brackethole pos. 45,
Mount. Bracket Dist.: 45.60,
Pulley Dia.: 54.50,
Pulley Dist.: 42.50,
Grooves/Pulley: 6,
Radius: 90.00,
Radius: 90.00,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL72,
Blower: IF, Pulley SP,
Total Length: 180.00
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 90 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 10.00 | |||
| G | Belt. adj. bracket hole 10.50 | |||
| B | Width/holder arm 22.20 | |||
| E | Belt. adj. brackethole pos. 45 | |||
| C | Mount. bracket dist. 45.60 | |||
| H | Pulley dia. 54.50 | |||
| A | Pulley dist. 42.50 | |||
| i | Grooves/pulley 6 | |||
| j | Radius 90.00 | |||
| j | Radius 90.00 | |||
| k | B+ position M8 | |||
| n | Rotation CR | |||
| o | Regulator plug PL72 | |||
| R | Total length 180.00 | |||
Further information (Alternator) | ||||
| Blower | IF | |||
| Pulley | SP | |||
Replacing | ||||
| 11.203.710 | ISKRA | |||
| 2542297 | MOTOROLA | |||
| 2542297 | VALEO | |||
| 2542297A | VALEO | |||
| 2542297B | VALEO | |||
| 2542397 | MOTOROLA | |||
| 2542397 | VALEO | |||
| 2542397B | VALEO | |||
| 2542490 | VALEO | |||
| 2542490A | VALEO | |||
UNISTART Price: £118.83
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Peugeot, Passenger Car EU | 307 | 2 | Gasoline | 2002 03 | - | 100 | 136 | 1997 | 4 | 16V | RFN (EW10J4) | Estate | 307 | |
| Peugeot, Passenger Car EU | 807 | 2 | Gasoline | 2002 06 | - | 100 | 136 | 1997 | 4 | RFN (EW10J4) | MPV | 807 | ||
| Peugeot, Passenger Car EU | 206 | 1.1 | Gasoline | 2002 07 | - | 44 | 60 | 1124 | 4 | HFX (TU1JP) | Estate | 206 | ||
| Peugeot, Passenger Car EU | 407 | 1.8 | Gasoline | 2004 05 | - | 85 | 116 | 1749 | 4 | 6FZ (EW7J4) | 407 | |||
| Peugeot, Passenger Car EU | 307 | 2 | Gasoline | 2003 10 | - | 100 | 136 | 1997 | 4 | 16V | RFN (EW10J4) | Convertible | 307 | |
| Peugeot, Passenger Car EU | 206 | 1.1 | Gasoline | 1998 09 | 2006 07 | 44 | 60 | 1124 | 4 | i | HFZ (TU1JP) | Hatchback | 206 | |
| Peugeot, Passenger Car EU | 206 | 1.6 | Gasoline | 2000 09 | - | 80 | 109 | 1587 | 4 | 16V | NFU (TU5JP4) | Convertible | 206 | |
| Peugeot, Passenger Car EU | 206 | 1.6 | Gasoline | 2000 12 | - | 80 | 109 | 1587 | 4 | 16V | NFU (TU5JP4) | Hatchback | 206 | |
| Peugeot, Passenger Car EU | 607 | 2 | Gasoline | 2000 02 | - | 100 | 136 | 1997 | 4 | RFN (EW10J4) | 607 | |||
| Peugeot, Passenger Car EU | 407 | 2.2 | Gasoline | 2004 05 | - | 116 | 158 | 2230 | 4 | 3FZ (EW12J4) | Estate | 407 | ||
| Peugeot, Passenger Car EU | 307 | 2 | Gasoline | 2003 10 | - | 130 | 177 | 1997 | 4 | 16V | RFK (EW10J4S) | Convertible | 307 | |
| Peugeot, Passenger Car EU | 407 | 1.8 | Gasoline | 2004 05 | - | 85 | 116 | 1749 | 4 | 6FZ (EW7J4) | Estate | 407 | ||
| Peugeot, Passenger Car EU | 206+ | 1.4 | Gasoline | 2009 01 | - | 55 | 75 | 1360 | 4 | KFW (TU3A) | Hatchback | 206+ | ||
| Peugeot, Passenger Car EU | 206 | 1.6 | Gasoline | 1998 09 | 2000 12 | 65 | 89 | 1587 | 4 | i | NFZ (TU5JP) | Hatchback | 206 | |
| Peugeot, Passenger Car EU | 807 | 2.2 | Gasoline | 2002 06 | - | 116 | 158 | 2230 | 4 | 3FZ (EW12J4) | MPV | 807 | ||
| Peugeot, Passenger Car EU | 206 | 1.6 | Gasoline | 2002 07 | - | 80 | 109 | 1587 | 4 | 16V | NFU (TU5JP4) | Estate | 206 | |
| Peugeot, Passenger Car EU | 206 | 1.4 | Gasoline | 1998 09 | - | 55 | 75 | 1360 | 4 | i | KFX (TU3JP) | Hatchback | 206 | |
| Peugeot, Passenger Car EU | 207 | 1.6 | Bi-Fuel | 2008 01 | - | 83 | 113 | 1587 | 4 | N6A (TU5JP4) | Bioflex | 207 | ||
| Peugeot, Passenger Car EU | 307 | 2 | Gasoline | 2000 08 | - | 100 | 136 | 1997 | 4 | 16V | RFN (EW10J4) | Hatchback | 307 | |
| Peugeot, Passenger Car EU | Bipper | 1.4 | Gasoline | 2008 04 | - | 54 | 73 | 1360 | 4 | KFV (TU3A) | Estate | Tepee | Bipper | |
| Peugeot, Passenger Car EU | 206 | 1.4 | Gasoline | 2003 10 | - | 65 | 88 | 1360 | 4 | 16V | KFU (ET3J4) | Estate | 206 | |
| Peugeot, Passenger Car EU | 407 | 2.2 | Gasoline | 2004 05 | - | 116 | 158 | 2230 | 4 | 3FZ (EW12J4) | 407 | |||
| Peugeot, Passenger Car EU | 307 | 2 | Gasoline | 2002 03 | - | 100 | 136 | 1997 | 4 | RFN (EW10J4) | Estate | 307 | ||
| Peugeot, Passenger Car EU | 206 | 1.4 | Gasoline | 2002 07 | - | 55 | 75 | 1360 | 4 | KFW (TU3JP) | Estate | 206 | ||
| Citroen, Passenger Car EU | Xsara | 1.4 | Gasoline | 1997 10 | - | 55 | 75 | 1360 | 4 | i | KFW (TU3JP) | Estate | Xsara | |
| Citroen, Passenger Car EU | Berlingo | 1.4 | Diesel | 2003 04 | - | 55 | 75 | 1360 | 4 | i Bivalent | KFW (TU3JP) | Van | Berlingo | |
| Citroen, Passenger Car EU | C8 | 2 | Gasoline | 2002 07 | - | 100 | 136 | 1997 | 4 | RFN (EW10J4) | MPV | C8 | ||
| Citroen, Passenger Car EU | Xsara | 1.6 | Gasoline | 2000 09 | - | 70 | 95 | 1587 | 4 | NFV (U5JP) | MPV | Picasso | Xsara | |
| Citroen, Passenger Car EU | Xsara | 1.6 | Gasoline | 2000 06 | - | 65 | 88 | 1587 | 4 | NFZ (TU5JP) | MPV | Picasso | Xsara | |
| Citroen, Passenger Car EU | Xsara | 1.8 | Gasoline | 2000 02 | - | 85 | 115 | 1762 | 4 | 16V | 6FZ (EW7J4) | MPV | Picasso | Xsara |
| Citroen, Passenger Car EU | Berlingo | 1.4 | Diesel | 2003 04 | - | 55 | 75 | 1360 | 4 | i Bivalent | KFW (TU3JP) | MPV | Berlingo | |
| Citroen, Passenger Car EU | Xsara | 1.4 | Gasoline | 1997 04 | - | 55 | 75 | 1360 | 4 | i | KFW (TU3JP) | Hatchback | Xsara | |
| Citroen, Passenger Car EU | C5 | 2 | Gasoline | 2001 06 | 2004 08 | 103 | 140 | 1997 | 4 | HPi 16V | RLZ (EW10D) | Estate | C5 | |
| Citroen, Passenger Car EU | C5 | 1.8 | Gasoline | 2001 06 | 2004 09 | 85 | 115 | 1749 | 4 | 16V | 6FZ (EW7J4) | Estate | X4 | C5 |
| Citroen, Passenger Car EU | C5 | 2 | Gasoline | 2001 06 | 2004 08 | 100 | 136 | 1997 | 4 | 16V Turbo | RFN (EW10J4) | Estate | C5 | |
| Citroen, Passenger Car EU | C5 | 1.8 | Gasoline | 2001 03 | 2004 09 | 85 | 115 | 1749 | 4 | 16V | 6FZ (EW7J4) | Hatchback | X4 | C5 |
| Citroen, Passenger Car EU | C8 | 2.2 | Gasoline | 2002 07 | - | 116 | 158 | 2230 | 4 | 3FZ (EW12J4) | MPV | C8 | ||
| Citroen, Passenger Car EU | Xsara | 2 | Gasoline | 2003 01 | - | 100 | 136 | 1997 | 4 | 16V | RFN (EW10J4) | MPV | Picasso | Xsara |
| Citroen, Passenger Car EU | Xsara | 1.8 | Gasoline | 2000 02 | - | 85 | 115 | 1762 | 4 | 16V | LFY (XU7JP4) | MPV | Picasso | Xsara |
| Fiat, Passenger Car EU | Ulysse | 2 | Gasoline | 2002 08 | - | 100 | 136 | 1997 | 4 | RFN (EW10J4) | MPV | Ulysse | ||
| Toyota, Passenger Car EU | Aygo | 1.4 | Diesel | 2005 07 | 2010 08 | 40 | 54 | 1398 | 4 | HDi | 2WZTV | Hatchback | Aygo |
