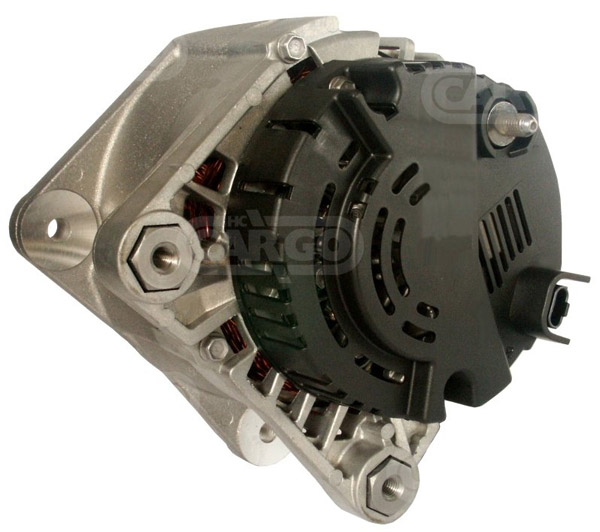

112471 - Alternator (112471)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 125,
Bracket Hole: 8.70, Belt. adj. bracket hole 8.50,
Width/Holder Arm: 13.50, Belt. adj. brackethole pos. 45,
Mount. Bracket Dist.: 60.90,
Pulley Dia.: 49.00,
Pulley Dist.: 32.50,
Grooves/Pulley: 6,
Radius: 90.00,
Radius: 90.00,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL55,
Blower: IF, Pulley SP/FW,
Total Length: 179.00

Electrical specifications (Alternator)
Voltage 14
Amp 125

Physical specifications (Alternator)
D Bracket hole 8.70
G Belt. adj. bracket hole 8.50
B Width/holder arm 13.50
E Belt. adj. brackethole pos. 45
C Mount. bracket dist. 60.90
H Pulley dia. 49.00
A Pulley dist. 32.50
i Grooves/pulley 6
j Radius 90.00
j Radius 90.00
k B+ position M8
n Rotation CR
o Regulator plug PL55
R Total length 179.00

Further information (Alternator)
Blower IF
Pulley SP/FW

Replacing
11.203.950 ISKRA
23100-00q0a NISSAN
23100-00qak NISSAN
23100-00QAM NISSAN
23100-00qbe NISSAN
2542272 VALEO
2542272A VALEO
2542272B VALEO
2542272C VALEO
2542272E VALEO

UNISTART Price: £127.64

Sorry, this item is out of stock.

The 112471 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Renault, Passenger Car EU Master 1.9 Diesel 2001 11 - 60 82 1870 4 DCi F9Q772 Van 80 Master
Renault, Passenger Car EU Master 1.9 Diesel 2001 11 - 60 82 1870 4 DCi F9Q774 Van 80 Master
Renault, Passenger Car EU Laguna 1.9 Diesel 2001 03 - 88 120 1870 4 DCi F9Q674 Hatchback Laguna
Renault, Passenger Car EU Laguna 1.8 Gasoline 2001 03 - 89 121 1783 4 16V F4P770 Estate Laguna
Renault, Passenger Car EU Master 2.2 Diesel 2000 09 - 66 90 2188 4 DCi G9T720 Van 90 Master
Renault, Passenger Car EU Trafic 1.9 Diesel 2001 03 - 60 82 1870 4 DCi F9Q762 Van 80 Trafic
Renault, Passenger Car EU Trafic 1.9 Diesel 2001 03 - 74 101 1870 4 DCi F9Q760 Van 100 Trafic
Renault, Passenger Car EU Laguna 1.9 Diesel 2001 06 - 77 105 1870 4 DCi F9Q752 Hatchback Laguna
Renault, Passenger Car EU Laguna 1.9 Diesel 2001 06 - 77 105 1870 4 DCi F9Q752 Estate Laguna
Renault, Passenger Car EU Trafic 1.9 Diesel 2001 03 - 60 82 1870 4 DCi F9Q762 Platform / Chassis Trafic
Renault, Passenger Car EU Trafic 1.9 Diesel 2001 03 - 74 101 1870 4 DCi F9Q760 Platform / Chassis Trafic
Renault, Passenger Car EU Laguna 1.9 Diesel 1999 09 2001 03 79 107 1870 4 DCi F9Q718 Estate Laguna
Renault, Passenger Car EU Espace 2.2 Diesel 2000 10 2002 10 95 130 2188 4 DCi G9T710 MPV Espace
Renault, Passenger Car EU Laguna 1.8 Gasoline 2001 03 - 89 121 1783 4 16V F4P770 Hatchback Laguna
Renault, Passenger Car EU Trafic 1.9 Diesel 2001 03 - 74 101 1870 4 DCi F9Q760 Bus 100 Trafic
Renault, Passenger Car EU Laguna 1.9 Diesel 2001 10 - 74 100 1870 4 DCi F9Q754 Hatchback Laguna
Renault, Passenger Car EU Espace 2.2 Diesel 2000 10 2002 10 95 130 2188 4 DCi G9T642 MPV Espace
Renault, Passenger Car EU Laguna 1.9 Diesel 1999 09 2001 03 79 107 1870 4 DCi F9Q718 Hatchback Laguna
Renault, Passenger Car EU Laguna 1.9 Diesel 2001 03 - 88 120 1870 4 DCi F9Q750 Estate Laguna
Renault, Passenger Car EU Master 2.2 Diesel 2000 09 - 66 90 2188 4 DCi G9T720 Bus 90 Master
Renault, Passenger Car EU Trafic 1.9 Diesel 2001 03 - 60 82 1870 4 DCi F9Q762 Bus 80 Trafic
Renault, Passenger Car EU Master 1.9 Diesel 2001 11 - 60 82 1870 4 DCi F9Q772 Bus 80 Master
Renault, Passenger Car EU Laguna 1.9 Diesel 2001 10 - 74 100 1870 4 DCi F9Q754 Estate Laguna
Renault, Passenger Car EU Trafic 2.5 Diesel 2003 05 - 99 135 2464 4 DCi G9U730 Bus Trafic
Renault, Passenger Car EU Master 2.2 Diesel 2000 09 - 66 90 2188 4 DCi G9T722 Bus 90 Master
Renault, Passenger Car EU Master 2.2 Diesel 2000 09 - 66 90 2188 4 DCi G9T750 Bus 90 Master
Renault, Passenger Car EU Master 2.2 Diesel 2000 09 - 66 90 2188 4 DCi G9T720 Platform / Chassis 90 Master
Renault, Passenger Car EU Laguna 1.8 Gasoline 2001 03 - 88 120 1783 4 16V F4P770 Hatchback Laguna
Renault, Passenger Car EU Laguna 1.8 Gasoline 2001 03 - 85 116 1783 4 16V F4P770 Hatchback Laguna
Renault, Passenger Car EU Laguna 1.8 Gasoline 2001 03 - 88 120 1783 4 16V F4P773 Estate Laguna
Renault, Passenger Car EU Master 1.9 Diesel 2001 11 - 60 82 1870 4 DCi F9Q774 Bus 80 Master
Renault, Passenger Car EU Trafic 2.5 Diesel 2003 05 - 99 135 2464 4 DCi G9U730 Van Trafic
Renault, Passenger Car EU Laguna 1.9 Diesel 2001 03 - 88 120 1870 4 DCi F9Q650 Hatchback Laguna
Renault, Passenger Car EU Master 2.2 Diesel 2000 09 - 66 90 2188 4 DCi G9T722 Van 90 Master
Renault, Passenger Car EU Master 2.2 Diesel 2000 09 - 66 90 2188 4 DCi G9T750 Van 90 Master
Renault, Passenger Car EU Master 2.2 Diesel 2000 09 - 66 90 2188 4 DCi G9T722 Platform / Chassis 90 Master
Renault, Passenger Car EU Master 2.2 Diesel 2000 09 - 66 90 2188 4 DCi G9T750 Platform / Chassis 90 Master
Renault, Passenger Car EU Laguna 1.8 Gasoline 2001 03 - 88 120 1783 4 16V F4P770 Estate Laguna
Renault, Passenger Car EU Megane 1.5 Diesel 2007 01 - 76 103 1461 4 DCi K9K732 Convertible Megane
Renault, Passenger Car EU Trafic 2.5 Diesel 2001 03 - 99 135 2463 4 DCi G9U730 Platform / Chassis Trafic
Opel, Passenger Car EU Movano 1.9 Diesel 2001 10 - 60 82 1870 4 DTi F9Q774 Bus Movano
Opel, Passenger Car EU Movano 2.5 Diesel 2001 10 - 84 115 2463 4 DTi G9U720 Bus Movano
Opel, Passenger Car EU Movano 2.5 Diesel 2001 10 - 84 115 2463 4 DTi G9U720 Platform / Chassis Movano
Opel, Passenger Car EU Vivaro 2 Gasoline 2001 08 - 88 120 1998 4 16V F4R720 Bus Vivaro
Opel, Passenger Car EU Movano 2.5 Diesel 1999 01 2000 09 59 80 2499 4 Diesel S8U770 Dump Truck Movano
Opel, Passenger Car EU Vivaro 1.9 Diesel 2001 08 - 60 80 1870 4 Diesel F9Q774 Bus Vivaro
Opel, Passenger Car EU Vivaro 1.9 Diesel 2001 08 - 74 101 1870 4 DTi F9Q760 Bus Vivaro
Opel, Passenger Car EU Movano 1.9 Diesel 2001 10 - 60 82 1870 4 DTi F9Q774 Van Movano
Opel, Passenger Car EU Vivaro 2.5 Diesel 2003 05 - 99 135 2463 4 DTi G9U730 Van Vivaro
Opel, Passenger Car EU Vivaro 1.9 Diesel 2001 08 - 60 80 1870 4 Diesel Di F9Q762 Van Vivaro
Opel, Passenger Car EU Vivaro 1.9 Diesel 2001 08 - 74 101 1870 4 DTi F9Q760 Van Vivaro
Opel, Passenger Car EU Vivaro 2 Gasoline 2001 08 - 88 120 1998 4 16V F4R720 Van Vivaro
Opel, Passenger Car EU Movano 2.2 Diesel 2000 09 - 66 90 2188 4 DTi G9T720 Platform / Chassis Movano
Opel, Passenger Car EU Vivaro 2.5 Diesel 2003 05 - 99 135 2463 4 DTi G9U730 Bus Vivaro
Opel, Passenger Car EU Movano 2.2 Diesel 2000 09 - 66 90 2188 4 DTi G9T720 Van Movano
Opel, Passenger Car EU Movano 2.2 Diesel 2000 09 - 66 90 2188 4 DTi G9T720 Dump Truck Movano
Opel, Passenger Car EU Movano 2.5 Diesel 2001 10 - 84 115 2463 4 DTi G9U720 Van Movano
Nissan, Passenger Car EU Interstar 2.2 Diesel 2002 07 - 66 90 2188 4 DCi G9T722 Bus Interstar
Nissan, Passenger Car EU Primastar 1.9 Diesel 2001 03 - 74 101 1870 4 DCi F9Q760 Bus Primastar
Nissan, Passenger Car EU Primastar 1.9 Diesel 2002 09 - 60 82 1870 4 DCi F9Q762 Van Primastar
Nissan, Passenger Car EU Interstar 2.5 Diesel 2003 11 - 73 99 2463 4 DCi G9U720 Van 100 Interstar
Nissan, Passenger Car EU Interstar 1.9 Diesel 2002 07 - 60 82 1870 4 DCi F9Q772 Van Interstar
Nissan, Passenger Car EU Primastar 1.9 Diesel 2001 03 - 60 80 1870 4 DCi F9Q762 Bus Primastar
Nissan, Passenger Car EU Interstar 1.9 Diesel 2002 07 - 60 82 1870 4 DCi F9Q772 Bus Interstar
Nissan, Passenger Car EU Interstar 2.5 Diesel 2002 07 - 84 115 2463 4 DCi G9U720 Van Interstar
Nissan, Passenger Car EU Primastar 1.9 Diesel 2002 09 - 74 100 1870 4 DCi F9Q760 Van Primastar
Nissan, Passenger Car EU Interstar 2.2 Diesel 2002 07 - 66 90 2188 4 DCi G9T722 Van Interstar
Nissan, Passenger Car EU Interstar 2.5 Diesel 2002 07 - 84 115 2463 4 DCi G9U720 Bus Interstar
Vauxhall, Passenger Car EU Vivaro 2 Gasoline 2001 08 2006 12 88 120 1998 4 16V F4R720 Bus Vivaro
Vauxhall, Passenger Car EU Vivaro 2.5 Diesel 2003 07 2014 07 99 135 2463 4 DTi G9U630 Bus Vivaro
Vauxhall, Passenger Car EU Vivaro 1.9 Diesel 2001 08 2006 12 74 101 1870 4 DTi F9Q760 Van Vivaro
Vauxhall, Passenger Car EU Movano 2.2 Diesel 2000 09 - 66 90 2188 4 DTi G9T720 Bus Movano
Vauxhall, Passenger Car EU Movano 2 Diesel 2000 09 - 66 90 2188 4 DTi G9T720 Platform / Chassis Movano
Vauxhall, Passenger Car EU Movano 1.9 Diesel 2001 10 - 60 82 1870 4 DTi F9Q774 Van Movano
Vauxhall, Passenger Car EU Movano 1.9 Diesel 2001 10 - 60 82 1870 4 DTi F9Q774 Bus Movano
Vauxhall, Passenger Car EU Vivaro 1.9 Diesel 2001 08 2006 12 59 80 1900 4 Diesel Di F9Q762 Van Vivaro
Vauxhall, Passenger Car EU Vivaro 2 Gasoline 2001 08 2006 12 88 120 1998 4 16V F4R720 Van Vivaro
Vauxhall, Passenger Car EU Vivaro 1.9 Diesel 2001 08 2006 12 74 101 1870 4 DTi F9Q760 Bus Vivaro
Vauxhall, Passenger Car EU Vivaro 2.5 Diesel 2003 07 2014 07 99 135 2463 4 DTi G9U630 Van Vivaro
Vauxhall, Passenger Car EU Vivaro 1.9 Diesel 2001 08 2006 12 59 80 1900 4 Diesel Di F9Q762 Bus Vivaro
Vauxhall, Passenger Car EU Movano 2.2 Diesel 2000 09 - 66 90 2188 4 DTi G9T720 Van Movano
