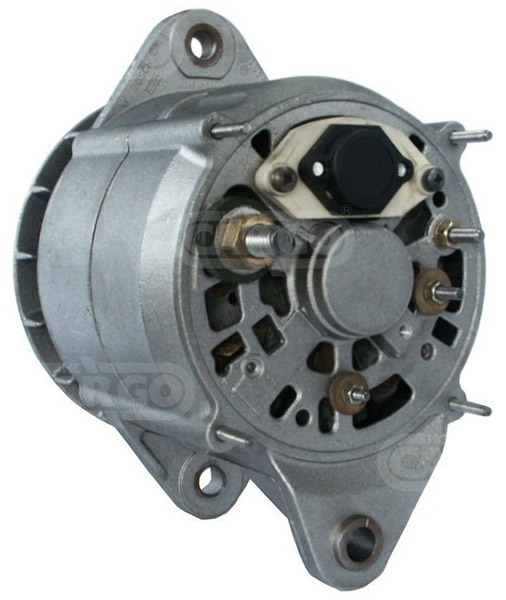

112493 - Alternator (112493)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 28,
Amp: 65, Terminal W,
Bracket Hole: 13.00, Belt. adj. bracket hole 1/2" UNC,
Width/Holder Arm: 14.00, Belt. adj. brackethole pos. 60,
Mount. Bracket Dist.: 100.00,
Radius: 99.00,
Radius: 99.00,
B+ Position: M12,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: EF, Pulley w/o,
Total Length: 232.00
Electrical specifications (Alternator) | ||||
| Voltage | 28 | |||
| Amp | 65 | |||
| Terminal | W | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 13.00 | |||
| G | Belt. adj. bracket hole 1/2" UNC | |||
| B | Width/holder arm 14.00 | |||
| E | Belt. adj. brackethole pos. 60 | |||
| C | Mount. bracket dist. 100.00 | |||
| j | Radius 99.00 | |||
| j | Radius 99.00 | |||
| k | B+ position M12 | |||
| n | Rotation CR | |||
| o | Regulator plug PL_NA | |||
| R | Total length 232.00 | |||
Further information (Alternator) | ||||
| Blower | EF | |||
| Pulley | w/o | |||
Replacing | ||||
| 0120468054 | BOSCH | |||
| 0120468147 | BOSCH | |||
| 1964860C1 | CASE | |||
| 3923624 | CUMMINS | |||
| 860568 | BUTEC | |||
UNISTART Price: £355.15
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Case, Agricultural | 800 Series | 8.3 | Diesel | 1996 06 | - | 141 | 196 | 8288 | 6 | 6CT | 821B | |||
| Case, Agricultural | W | 6 | Diesel | 1996 05 | - | 112 | 152 | 5880 | 4 | 6BT | W20E | |||
| Case, Agricultural | 800 Series | 8.3 | Diesel | 1996 06 | - | 141 | 196 | 8288 | 6 | 6CT | 821B | |||
| Case, Agricultural | W | 6 | Diesel | 1996 05 | - | 112 | 152 | 5880 | 4 | 6BT | W20E | |||
| Case, Agricultural | 800 Series | 8.3 | Diesel | 1996 06 | - | 141 | 196 | 8288 | 6 | 6CT | 821B | |||
| Case, Agricultural | W | 6 | Diesel | 1996 05 | - | 112 | 152 | 5880 | 4 | 6BT | W20E | |||
| Case, Agricultural | 800 Series | 8.3 | Diesel | 1996 06 | - | 141 | 196 | 8288 | 6 | 6CT | 821B | |||
| Case, Agricultural | W | 6 | Diesel | 1996 05 | - | 112 | 152 | 5880 | 4 | 6BT | W20E |
